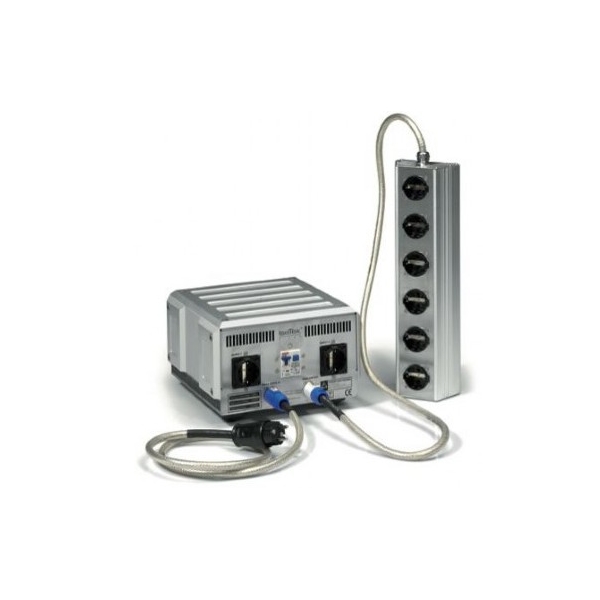

Filtro de red Isotek Titan + Multilink

Especialmente diseñado para amplificacion.2 + 6 schukos.

Cable de red suministrado.

Capacidad de manejo de potencia ilimitada Diseñada para todo tipo de componentes de A/V Sistema de fusibles electrónicos muy sofisticado Diseño compacto y elegante Expandible mediante la salida Multi-Link Pies antiresonantes RDC 3 Características técnicas: Incorpora la misma tecnologia que el modelo Nova pero en un formato totalmente diferente.

Se ha buscado un producto que pueda alimentar a las etapas mas potentes del mercado de tal manera que a la vez que se les extrae el maximo rendimiento, impida que sus efluvios electromagneticos enturbien la corriente por lo que los demas elementos del sistema trabajan a pleno rendimiento tambien. Se ha diseñado un chasis tambien enteramente en aluminio de forma casi cubica para ser colocado en el suelo o todavia mejor en algun tipo de base antiresonante.

Dispone en su parte trasera de dos enchufes convencionales preparados para alimentar dos etapas, aislada totalmente una de otra en circuitos totalmente diferntes, por lo que se podria decir que el Titan es como dos purificadores de corriente en un mismo chasis, o mejor tres, porque ademas dispone de un conector adicional al que se le puede conectar un modelo especial de isotek llamado Multilink que es una regleta donde conectar el resto de los componentes del sistema excepto las etapas de potencia.

Sus prestaciones estan consideradas "state of the art", baste decir que su capacidad transitoria de entrega es de 23.000 watios que es de hecho la maxima potencia que puede entregar una linea de 15 amperios, por lo que no hay ningun tipo de restriccion dinamica, mas bien al contrario.

Circuitería propietaria Polaris X, diseñado especialmente para amplificación, 2 tomas estandar + 1 neutrik, , soporta hasta 3.680W/16A, todos los componentes usados superan la normativa de especificaciones de tolerancia para uso aero-espacial, indicador por LED, confeccionado con soldadura de plata en U.K, incluye cable de alta calidad para conexión a enchufe en pared

medidas 275 x 182,5 x 275 mms,

peso 12,75 kilos.




Product Introduction The Titan is a high quality filter designed specifically for power amplifiers. The filter has virtually unlimited power and because of this we are able to achieve a transient of 23,000 watts ! Overview A little over two years ago we advocated that power amplifiers benefited from a clean supply This was based upon our research that every component within a system benefited from specific tailored filtering solutions. We felt it was not enough to isolate components from noise on the mains alone. Our research showed that as a component draws power the mains supply is corrupted, basically anything with a power supply would cause this result. Our original SubStation allowed users to specify specific filters for each application. We later advocated larger over engineered isolation transformers for power amplifiers, we called these the 'Qube' and released three versions 1000, 2000 and 4000VA. A maximum power multiplier was used; if a component drew 500 watts at peak then this figure should be doubled and then doubled again to protect against transient information loss. At the time we felt that they offered the best possible solution. New research breakthroughs show we can do better. Although there are many things a good isolation transformer can deliver there are, however, several downsides which no matter how hard one tries cannot be overcome. Even though we specified extremely large isolation transformers a reduction in transient response was almost inevitable. This was simply down to various forms of insertion loss within the transformer itself. This is caused by the transformer having a higher impedance than the mains supply typically would. In order to overcome the limiting factors of isolation transformers we recognised a fundamental shift in thinking was required. Calculations suggest that the typical transient energy available from a typical 13amp mains socket is equivalent to 23,000 watts. In an ideal world, to obtain the best results, the absolute minimum size of isolation transformer if used for filtering would be 23,000 watts. This is obviously a ludicrous suggestion. Although it's anybody's guess what a true mains transient is, we feel this figure stands reasonable scrutiny and maybe a minimum. It became apparent, almost immediately, that we could not possibly offer this specification; it also became apparent that in order to achieve what we felt was required, we had to. Features The new Titan dispenses with isolation transformer technology in favour of a direct-coupled design with a nine-stage series and parallel filter configuration. This is optimised for a high degree of common mode rejection, with the highest possible differential mode rejection compatible with low insertion losses. Great care has been taken to minimise insertion loss at mains frequency. Another asset of an isolation transformer would be a balanced supply, however the new circuit also offers these desirable characteristics, especially at high frequencies where it could be debated it possesses superior performance. To further ensure the greatest possible transient response, enough to realise 23,000 watts potential, two things out of the ordinary have been achieved. Firstly, the minimum constant running ability of the device is rated at over 4,600 watts. Secondly, the unit is fitted with an RCBO, this high tech electronic fusing offers huge transient overloads whilst remaining safe. It also has the added bonus of protecting power cords against long term overload conditions. Placement The Titan can be placed either on a dedicated shelf of an equipment support rack or in a position next to or near the power amplifier it supplies. Adequate ventilation should be given to the unit, therefore we would not recommend that it is covered or enclosed in a very tight space. It is also recommended that the unit is not used outside or in areas susceptible to damp conditions. Equipment coupling The Titan has been designed specifically for high current applications, especially power amplifiers. Titan is so powerful in terms of transient ability that it is only limited by the network it is plugged into, therefore if possible we would recommend a dedicated supply be installed; we will be posting additional information on this in the future. At the rear of the Titan chassis are two high quality unswitched outlets these can be used for power amplifiers or other high current devices. The Titan has also been equipped with a Neutrik out to support other specific IsoTek items. System integration The Titan should be used with its supplied power cord. Should users wish to change this for their own preferred brand the cable MUST be rated with a minimum of 16Amps. We strongly recommend that a good quality mains cable be used throughout your system. Look for a cable with good conductors, for example oxygen free copper, this cable should also possess a high degree of shielding from RFI Specifications The following information relates only to the IsoTek GII Titan. These are original products and should not be confused with past models or ‘copy cat’ products. Number of outlets: 2 standard, 1 extendable (Neutrik) Type of outlets available: 13A UK unswitched / European / U.S. Mains inlet: 16 Amp Neutrik Mains voltage: 110 - 264 VAC Maximum currenti: 16 Amps continuous Total Power: (Nominal 230V) 3680 Watts (Continuous rating of Titan circuit) 4600 Watts (Transient capability 10 milliseconds) 23,000 Watts Fusing: Electronic Overcurrent device (16Amps, with addition suppression filtering). 30 milliamp earth linkage protection, this allows use on radial circuits not protected by RCDs, allowed under British regulations as a cooker circuit Dimensions: 275mm x 182.5mm x 275mm (WxHxD)
