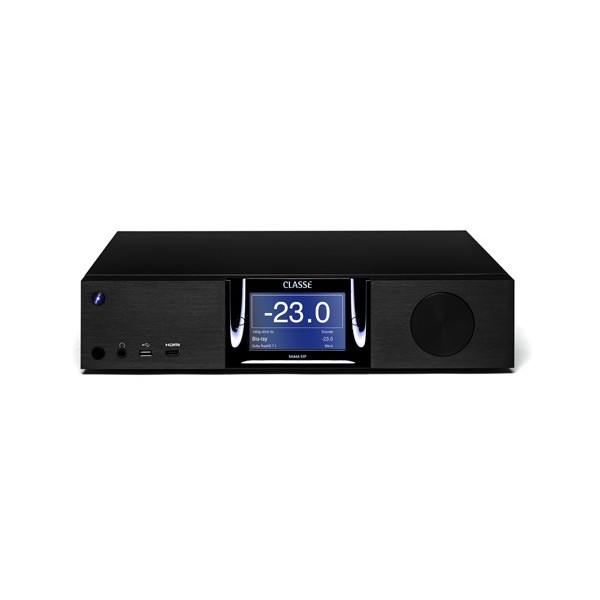

Procesador AV Classe Audio Sigma SSP

Previo multicanal pero optimizado también para configuraciones estéreo Classe Sigma SSP. 4999€.

Incluye todo tipo de entradas: en el frontal encontramos una entrada USB convencional junto a una entrada HDMI.
En la parte posterior vemos la entrada de Ethernet, 6 entradas HDMI, audio balanceado y no balanceado, 3 digital coaxial, digital óptico....

Dentro de la serie Sigma encontramos dos etapas de potencia a juego.
Etapa de potencia estéreo SIGMA AMP2
Etapa potencia 5 canales SIGMA AMP5

 Diseñado tanto para uso estereofónico como para uso multicanal.

Circuitería de preamplificación/procesado basada en el modelo SSP-800.
Posibilidad de streaming de audio asíncrono desde un PC, disco duro o internet mediante la conexión Ethernet.
Soporta streaming Airplay y DLNA.
Dispone de conexiones USB tanto en el panel frontal como en el panel trasero.
8 entradas HDMI. Una de ellas ubicada en el panel frontal.
Dispone de ARC (Audio Return Channel).
Provisto de entradas coaxiales digitales y ópticas.
Control paramétrico de 9 bandas para control tonal.
Formatos soportados en Airplay: AAC (de 8 a 320kbps), AAC (de iTunes store), HE-AAC, mp3 (de 8 a 320kbps), mp3 VBR, Audibe (formatos 2, 3, 4), Audible Enhanced Audio (AAX y AAX+), Apple Lossless, AIFF y WAV.
Formatos soportados en DLNA: Apple Lossless (ALAC), mp3, FLAC, WAV, Ogg Vorbis, WMA, AAC.
Descodificación de sonido envolvente multicanal Dolby Digital, Dolby Digital EX, DTS-ES, DTS 96/24, DTS Neo 6 y Dolby Pro-Logic IIx.
Módulo de descodificación de sonido envolvente multicanal “HD” (Dolby TrueHD+DTS-HD Master Audio).
8 tomas de entrada HDMI v1.4.
1 toma de salida HDMI v1.4 compatible 3D.
Control del Sistema mediante Pantalla Táctil LCD.
Conexión inteligente con componentes Classé compatibles mediante CAN BUS (RJ45).
Toma de control RS232 (actualización de software y control).
Tomas de disparo de 12V.
Tomas de infrarrojos.
Dimensiones (An x Al x P): 433 x 95 x 370 (excluyendo conectores) mm.
Peso: 8,21Kg.

The Sigma SSP is a 7.1 channel preamp/processor optimized for stereo but including HDMI switching, multichannel processing and bass management. Its wide variety of input connectors includes asynchronous USB and Ethernet for streaming, augmented by coax and optical; balanced and single-ended analog inputs plus an optional phono stage show how versatile this preamp/processor is despite its compact size. A host of performance-oriented features including digital domain tone/tilt control, and nine-band per channel parametric EQ ensure the best performance with each recording in every room.

Sigma SSP SURROUND SOUND PREAMP/PROCESSOR

USB audio

up to 24-bit/192 kHz
USB (Host)

charging capability 2 Amps

AirPlay supported
formats

AAC (8 to 320 kbps)
Protected AAC (from iTunes Store),
HE-AAC, MP3 (8 to 320 kbps),
MP3 VBR, Audible (formats 2, 3, 4)
Audible Enhanced Audio (AAX, and AAX+),
Apple Lossless, AIFF, and WAV
DLNA supported
formats

Apple Lossless (ALAC), mp3, FLAC,
WAV, Ogg Vorbis, WMA, AAC
Frequency response

8 Hz - 200 kHz < 1 dB, stereo digital bypass
8 Hz - 20 kHz < 0.5 dB, all other sources
Channel Matching
(Left to Right)

better than 0.05 dB
Distortion (THD+noise)

0.0005%, digital source/bypassed
analog source
.002%, processed analog source
Maximum input level
(single-ended)

2 Vrms (DSP), 4.5Vrms (bypass)
Maximum input level
(balanced)

4 Vrms (DSP), 9 Vrms (bypass)
Maximum output level
(single-ended)

9 Vrms
Maximum output level
(balanced)

18 Vrms
Gain Range

-93 dB to +14 dB
Input impedance
(single-ended)

100 kΩ (single-ended)
Input impedance
(balanced)

50 kΩ (Balanced)
Output impedance
(single-ended)

100 Ω
Output impedance
(balanced)

300 Ω
Signal-to-noise ratio
(ref. 4Vrms input, unweighted)

104 dB, bypassed analog source
101 dB, processed analog source
(re. full-scale input, unweighted)
105 dB, digital source
Channel separation

better than 100 dB
Channel matching
(left to right)

>0.05 dB

Crosstalk
(any input to any output)

better than -130 dB @ 1 kHz

Rated power consumption

35 W

Mains voltage

100-240 V, 50/60 Hz

Ancho 433 x Alto 95 x Fondo 370 mm

Made for
iPod touch (5th generation) iPod nano (7th generation)
iPod touch (4th generation) iPod nano (6th generation)
iPod touch (3rd generation) iPod nano (5th generation)
iPod touch (2nd generation) iPod nano (4th generation)
iPod touch (1st generation) iPod nano (3rd generation)

Made for
iPhone 5S iPhone 3GS
iPhone 5 iPhone 3G
iPhone 4S iPhone
iPhone 4

Made for
iPad mini (with Retina display) iPad (3rd generation)
iPad Air iPad 2
iPad (4th generation) iPad
iPad mini

Airplay
AirPlay works with iPhone, iPod, and iPod touch with iOS 4.3.3 or later,
Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later.
