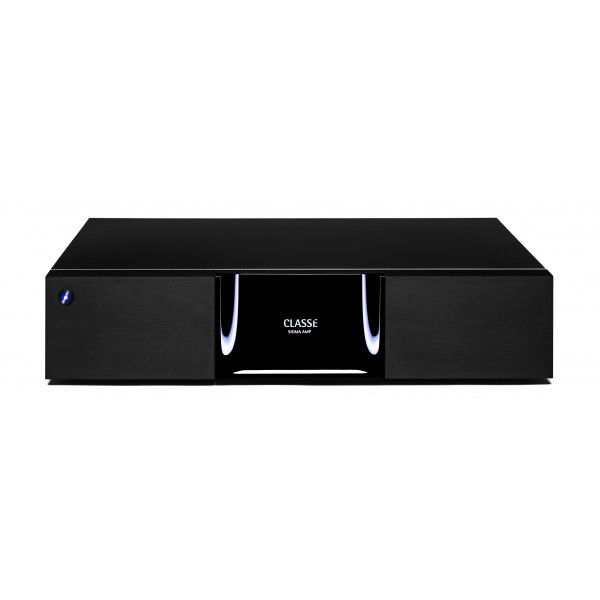

Etapa potencia AV Classe Audio Sigma AMP5

Etapa de potencia multicanal Classe Audio Sigma AMP5. Pensada para poder amplificar hasta 5 altavoces.
con una potencia de 200 Watios por canal.
Incluye entradas balanceadas XLR y RCA estéreo.

.

Etapa de potencia multicanal Classe Audio Sigma AMP5. Pensada para poder amplificar hasta 5 altavoces.
con una potencia de 200 Watios por canal. Incluye entradas balanceadas XLR y RCA estéreo.

.

Dentro de esta misma serie Sigma encontramos:
_Procesador Classe Sigma SSP
_Etapa estereo Classe Sigma AMP2

Potencia de salida: 5x200W RMS a 8 ohmios.

5x400W RMS a 4 ohmios.
Entradas Balanceadas y No Balanceadas.
Conexión inteligente con componentes Classé compatibles mediante CAN BUS (RJ45).
Toma de control RS232 (actualización de software y control).
Toma USB (actualización de software y obtención de datos).
Tomas de disparo de 12V.
Tomas de infrarrojos.
Dimensiones (An x Al x P): 433 x 95 x 370 mm.
Peso: 12,7Kg.

Sigma AMP5 FIVE-CHANNEL AMPLIFIER
The Sigma series AMP5 is a 200W/Ch five-channel amplifier derived from the AMP2, but with necessary part and layout changes to accommodate its five-channel architecture. Like the AMP2, it utilizes switching technologies for both power supply and amplification stages. A Classé-designed switch mode power supply with Power Factor Correction makes over 1,000W of clean and stable power available while being both compact and efficient. A new class D amplifier topology provides wide dynamic range, smooth and extended frequency response and rich harmonic detail to yield stunning sonic performance. The efficiency of class D adds efficiency, low heat dissipation and relatively small size to the list of the AMP5’s attributes.

Sigma AMP5 FIVE-CHANNEL AMPLIFIER
All tests un-weighted and 20Hz – 20kHz measurement bandwidth used.

Frequency response

10Hz – 20kHz, -1dB into 4Ω
Output power

200W rms into 8Ω All channels driven
400W rms into 4Ω Any two channels driven*
Harmonic Distortion

0.018% @ 1kHz All channelsdriven
to 1/8th power into 8Ω

Peak Output Voltage

116V peak to peak, 58V rms no load
116V peak to peak, 58V rms into 8Ω
Input Impedance

100kΩ Balanced / 50kΩ SE
Voltage gain

29 dB
Input level at clipping

1.4Vrms Balanced/SE

Intermodulation
Distortion

>80 dB below fundamental into 8Ω SE

Signal to Noise Ratio

-100 dB at peak output into 8Ω (AES17)

Rated power
consumption

200W @ 1/8th power into 8Ω
Mains voltage

100V - 240V, 50/60Hz
Overall Dimensions

Width: 17.00” (433mm)
Depth (excluding connectors): 14.57” (370mm)
Height: 3.75” (95mm)
Net weight

23.1 lb (10.48 kg)
Shipping weight

30.0 lb (13.61 kg)
*each channel supports 400W output into 4 ohms but the AC Mains/power
supply cannot support all channels driven simultaneously at this level, which
would require over 2,500W and only occur under a special test condition.
Every channel easily drives lower impedance loads.
