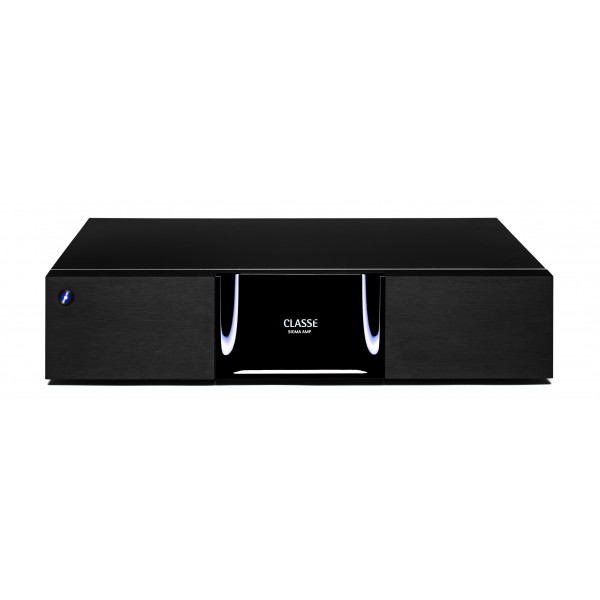

Etapa potencia Classe Audio Sigma AMP2

Etapa de potencia estéreo Classe Audio Sigma AMP2 de 200 Watios por canal. Incluye entradas analógica 2RCA estéreo y balanceadas XLR.

.

Etapa de potencia estéreo Classe Audio Sigma AMP2 de 200 Watios por canal. Incluye entradas analógica 2RCA estéreo y balanceadas XLR. 3499

.

Dentro de la misma serie Sigma encontramos el modelo de etapa multicanal SIGMA AMP5 de 5 x 200 Watios
El procesador estéreo a la par que multicanal Classe Sigma SSP

Etapa de Potencia de 2 canales en clase D.
-Potencia de salida: 2x200W RMS a 8 ohmios.
2x400W RMS a 4 ohmios.
-Entradas Balanceadas y No Balanceadas.
-Conexión inteligente con componentes Classé compatibles mediante CAN BUS (RJ45).
-Toma de control RS232 (actualización de software y control).
-Toma USB (actualización de software y obtención de datos).
-Tomas de disparo de 12V.
-Tomas de infrarrojos.
-Dimensiones (An x Al x P): 433 x 95 x 370 mm.
-Peso: 12,7Kg.

The Sigma series AMP2 is a 200W/Ch stereo amplifier utilizing switching technologies for both power supply and amplification stages. A Classé-designed switch mode power supply with Power Factor Correction makes over 1,000W of clean and stable power available while being both compact and efficient. A new class D amplifier topology provides wide dynamic range, smooth and extended frequency response and rich harmonic detail to yield stunning sonic performance. The efficiency of class D adds efficiency, low heat dissipation and relatively small size to the list of the AMP2’s attributes.

Sigma AMP2 TWO-CHANNEL AMPLIFIER
All tests un-weighted and 20Hz – 20kHz measurement bandwidth used.

Frequency response

10Hz – 20kHz, -1dB into 4Ω
Output power

200W rms into 8Ω 400W rms into 4Ω
Harmonic Distortion

<0.018% @ 1kHz Balanced Input

Peak Output Voltage

116V peak to peak, 58V rms no load
116V peak to peak, 58V rms into 8Ω
Input Impedance

100kΩ Balanced / 50kΩ SE
Voltage gain

29 dB
Input level at clipping

1.4Vrms Balanced/SE

Intermodulation
Distortion

>80 dB below fundamental into 8Ω Balanced

Signal to Noise Ratio

-100 dB at peak output into 8Ω (AES17)

Rated power
consumption

177W @ 1/8th power into 4Ω
Mains voltage

100V - 240V, 50/60Hz
Overall Dimensions

Width: 17.00” (433mm)
Depth (excluding connectors): 14.57” (370mm)
Height: 3.75” (95mm)
Net weight

22.0 lb (9.97 kg)
Shipping weight

28.0 lb (12.70 kg)
