Sanyo PLV70 -- REGALO con AV7005

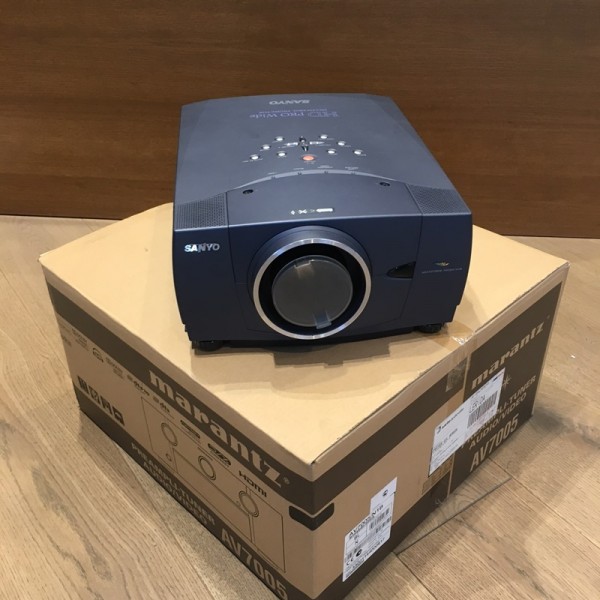

REGALO DEL PROYECTOR AL COMPRAR EL PREVIO MARANTZ AV7005

REMARKABLE BRIGHTNESS AND CONTRAST

Sanyo’s PLV-70, the brightest projector in its class, offers 2200
ANSI lumens, along with a remarkable 900:1 contrast ratio.

UNIQUE COLOR MANAGEMENT SYSTEM
Sanyo’s color management system allows you to change the
shading of a specific color in the image to a desired shade
without affecting other colors or adjustment items such as tint or
white balance.

NETWORK CONNECTIVITY
The PLV-70 readily accepts Sanyo’s new optional PJ-Net
Organizer module, offering advanced tools for operating and
administering one or a series of projectors via a network using
only a web browser.

HDTV COMPATIBLE
The PLV-70 is High Definition Television compatible, accepting
the 1080i, 1035i, 720p, 575p, 575i, 480p and 480i HDTV
resolution standards. Sanyo’s new Progressive Scan circuit can
even convert a 1080 interlaced source to 1080 progressive.

POWER LENS SHIFT
Power lens shift allows for greater placement flexibility by raising
or lowering the image without having to move the projector.

X-Y DIGITAL KEYSTONE CORRECTION
SANYO’s new X-Y digital keystone correction compensates for
angled projector placement by digitally altering the pixels to
produce undistorted images both horizontally and vertically

WHISPER QUIET FAN
The PLV-70 employs a new Whisper Quiet fan that produces an
amazingly low noise level of only 35 dBA.

Specifications
Resolution Wide XGA (1366 x 768)
Brightness (typical) 2200 ANSI Lumens
Uniformity 90% (corner to corner)
LCD Panel System 1.2” TFT polysilicon type x 3
Number of Pixels 3,147,264 (1,049,088 x 3)
Contrast Ratio 900:1
Projection Image (diagonal) 30” – 400”
Aspect Ratio 16:9
Throw Distance 4.9’ to 51.2’
Zoom/Focus Powered; 1:1.3 Zoom
Up/Down Ratio 7:-1 – 1:1 (with power lens shift)
Power Lens Shift Up/Down (see Up/Down Ratio)
Digital Keystone Correction Vert. +/- 40°, Horiz. +/- 10°
Projection System X-Type Prism System
Projection Lens F/1.8 – 2.1; f=1.9” – 2.5”
Lens Throw Ratio 1.75 – 2.3:1
Projection Lamp 200W UHP
Scanning Frequency H 15-100kHz; V 50-100Hz (auto sense/select)
Dot Clock 140MHz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility SXGA, XGA, SVGA, VGA, MAC
Sound Output Two-piece, 2-watt Stereo
Voltage 100-240V AC; 50/60/Hz (auto sense/select)
BTU Rating 1024
dB Rating 35.0
Power Consumption 300W
Dimensions (WxHxD) 12.6”x6.6”x16.9”
Net Weight 17.4 lbs.
User Maintenance Clean air filters, replace lamp assembly
Input Terminal Panel 1 · D-Sub 15 · DVI-D · Audio (Stereo mini-jack)
Input Terminal Panel 2 · 5 BNC (RGBHV) or
3 BNC (Video/Y, C/PB/CB, Pr/Cr)
· Audio (Stereo mini-jack)
Input Terminal Panel 3 · 3 RCA (Y,Cb/Cr,Pb/Pr) component / composite
· 2 RCA Audio (L & R) · S-Video
Included Accessories · Wired/Wireless I/R Remote Control · AC power
supply cord · Video Cable (RCA) · S-Video cable ·
Stereo Audio Cable · Wired remote cable · Serial
control cable · Mac/VGA Adapter · Dust cover
· Lens cover · Owner’s manual
Optional Accessories · PJ-Net Organizer LAN module · Optional lenses
(see below) · Hard shipping case (PLCCSE15)
Warranty Three years parts and labor; 90 days lamp;
Quick Repair Program under warranty
FCC Rating Class “B” consumer product
Because its products are subject to continuous improvement, SANYO reserves
