Van den Hul MC Two Special Capsula MC, bobina móvil. Cantilever de aleación. Agu
  • Van den Hul MC Two Special Capsula MC, bobina móvil. Cantilever de aleación. Agu

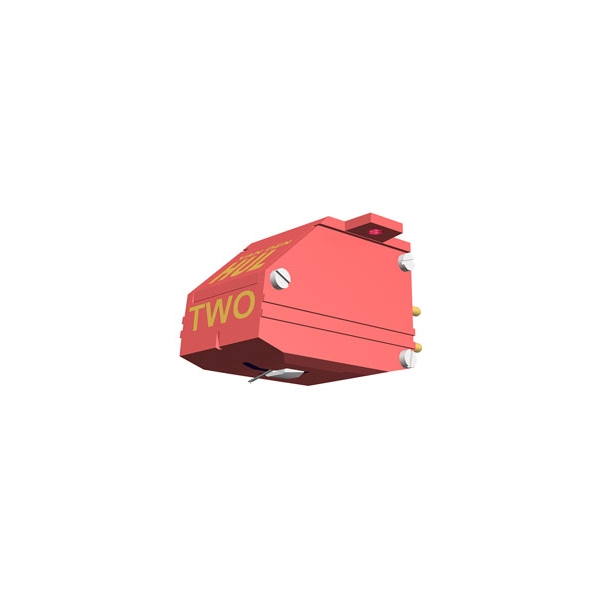

Van den Hul MC Two Special

Van den Hul MC Two Special

Producto Agotado y Descatalogado. NO Disponible

.

Pregunta al especialista

Description: A custom handbuilt moving coil cartridge; High output version of the MC - ONE Special with 2.25 mV/channel and matched crystal copper-wire coils. The designation “Special” in this cartridge’s name indicates important improvements over its previous version: The cartridge is equiped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage. Specifications: Cartridge Type MC - TWO Special Unit Stylus Replacement Available see (*) Stylus Shape VDH - I Stylus Radii 3 x 85 Micron Frequency Range 5 - 50.000 Hz Tracking Force 13.5 - 15.0 mN Static Compliance 28 Micron / mN Tracking Ability at 15 mN at 315 Hz 70 - 80 Micron Output Voltage at 1 kHz at 5.7 cm/s eff. 2.25 mV RMS Channel Unbalance < 0.5 dB Channel Separation at 1 kHz/10 kHz >35 / >30 dB Equivalent Stylus Tip Mass 0.35 Milligram System Weight 8.2 Gram Vertical Tracking Angle 22 Degrees Optimum Load Capacitance see (**) pF Recommended Load Impedance 47k (> 1k) Ohm Recommended Eff. Tone arm Mass 8 - 12 Gram Moving Coil Resistance (per channel) 96 Ohm

Van den Hul MC Two Special
