Van den Hul DDT-II Special Capsula MC, bobina móvil. Cantilever de boro. Aguja e
  • Van den Hul DDT-II Special Capsula MC, bobina móvil. Cantilever de boro. Aguja e

Van den Hul DDT-II Special

Van den Hul DDT-II Special

Producto Agotado y Descatalogado. NO Disponible

.

Pregunta al especialista

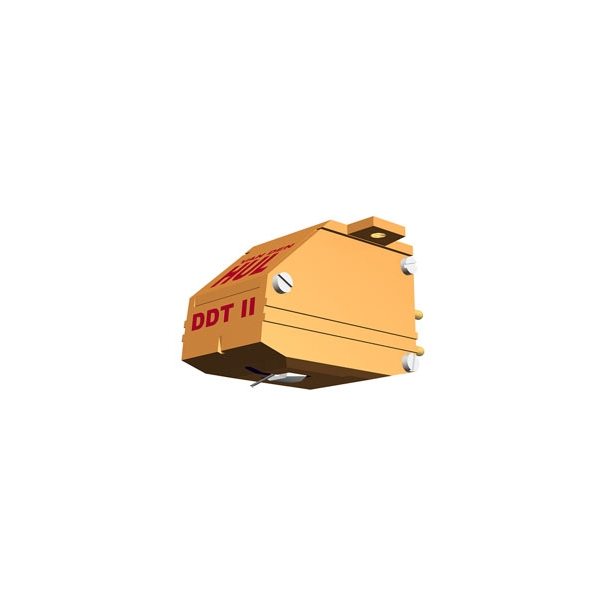

Description: A custom handbuilt moving coil cartridge with VDH-type 1 tip, boron cantilever, matched crystal silver-wire coils and 0.65 mV/channel. The designation "Special" in this cartridge's name indicates important improvements over its previous version: The cartridge is equiped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage. The cartridge's name DDT stands for Depth, Detail and Timbre. Specifications: Cartridge Type DDT - II Special Unit Stylus Replacement Available see (*) Stylus Shape VDH - I Stylus Radii 3 x 85 Micron Frequency Range 5 - 50.000 Hz Tracking Force 13.5 - 15.0 mN Static Compliance 28 Micron / mN Tracking Ability at 15 mN at 315 Hz 70 - 80 Micron Output Voltage at 1 kHz at 5.7 cm/s eff. 0.65 mV RMS Channel Unbalance < 0.75 dB Channel Separation at 1 kHz/10 kHz >35 / >30 dB Equivalent Stylus Tip Mass 0.35 Milligram System Weight 8.2 Gram Vertical Tracking Angle 22 Degrees Optimum Load Capacitance see (**) pF Recommended Load Impedance 200 Ohm Recommended Eff. Tone arm Mass 8 - 12 Gram Moving Coil Resistance (per channel) 9 Ohm (*) : Stylus replacement and other services available on request
