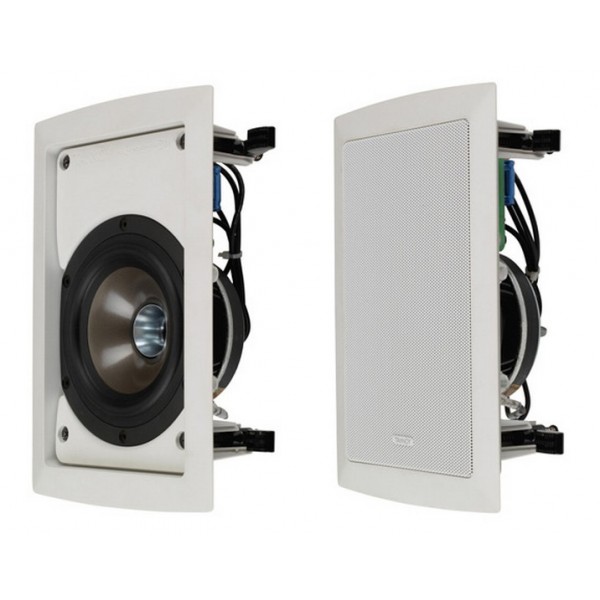

Tannoy iW4 DC Altavoces

Tannoy iW4 DC
Novedad

Producto Agotado y Descatalogado. No disponible

.

.

Pregunta al especialista
Envío gratuito

Precio la pareja, Dos unidades

Sistema par empotrar en pared o techo.
Potencia 60 - 240 W
Respuesta de Frecuencia 73 Hz - 54 KHz
Impedancia 8 Ohm
Medidas Altavoces Frontales 238 x 159 x 84 mm
Peso 2.60 Kg


Frequency Response (-3dB) (1) 88Hz - 50kHz
Frequency Range (-10dB) (1) 73Hz - 54kHz
System Sensitivity (1W @1m) (2) 88dB (1W = 2.83V for 8 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1kHz to 6kHz) 130 degrees conical
Directivity Factor (Q) 4.4 averaged 1kHz to 6kHz
Directivity Index (DI) 5.3 averaged 1kHz to 6kHz
Rated Maximum SPL Average: 106dB
Peak: 112dB
Power Handling (3) Average: 60W
Programme: 120W
Peak: 240W
Recommended Amplifier Power 120W @ 8 Ohms
Nominal Impedance 8 Ohms
Crossover 2kHz - 2nd order LF
2nd Order HF (with Dynamic HF protection)
TRANSDUCERS
Low Frequency Dual Concentric™ constant directivity driver:
100mm (4.00") multi fibre paper pulp mid bass cone
High Frequency 19mm (0.75") titanium dome with neodymium magnet system
PHYSICAL
Enclosure Baffle: UL 94V-0 rated ABS, Grille: Steel, with weather resistant coating
Clamping Design Security toggle clamp
Connectors Gold plated connector spring terminals
Hole Cutout 206mm x 135mm (8.11 x 5.31")
Dimensions (H x W)

Mounting depth

238mm x 159mm (9.37 x 6.26")

84mm (3.31")
Net Weight per speaker 2.60kg
(5.73lbs)
Optional Accessories Plaster (mud) ring
