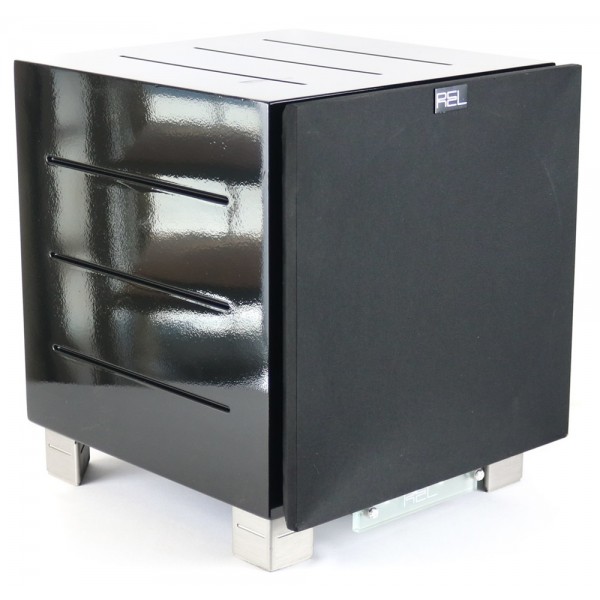

Rel R305

Control de corte de frecuencia y de ganancia. Respuesta: 25 - 100 Hz. Amplificador de 300 W. Negro lacado Dimensiones: 31,8 x 36,2 x 34,3 cm Features : • 300W high current Class D amplifier • Sealed enclosure with heavy-duty 10” long-throw, cast frame driver • Continuous crossover 25-100 Hz • Neutrik Speakon™ high-level input for direct connection to amplifier • RCA low level input, .1/LFE input with separate volume control • Control box located under the enclosure provides easy access to gain controls and phase reversal switch • Control panel includes a frosted glass security panel which, when fitted, secures settings • Hand-rubbed black lacquer finish Type: Closed box loading Roll Off: 25Hz to 100Hz Input Connectors: Neutrik Speakon - High Level Phono - LFE Phono - LINE Amplifier Type: Switching Amplifier Input Impedance: High Level 150K §Å® (Two Channel Unbalanced) Low Level 33K §Å® (LFE Unbalanced) Line Level 10K §Å® (Unbalanced) Input Sensitivity: Low Level 40dB High Level 22dB Drive Unit: 10" Heavy Duty Long Throw Cast Frame Power Output: 300 Watts RMS Phase: 0 and 180 Degrees Mains Input : 110 or 230 Volts (Depending on country) Protection: Over Current, Over Voltage Mains Fuses: 2.5 Amp semi delay for 230 Volts 3.15 Amp semi delay for 110 Volts Dimensions (WxHxD): 12.5 x 14.25 x 13.5 inches including feet, controls and grille Net Weight: 41 lbs / 18.6 kg Gross Weight: 46.4 lbs / 21.1 kg Supplied Accessories: Mains Lead Neutrik Speakon Interconnect (High Level) Spikes User Manual
