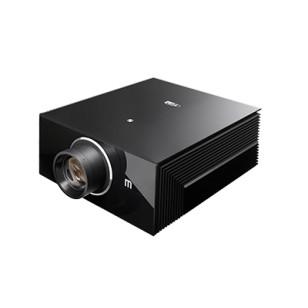

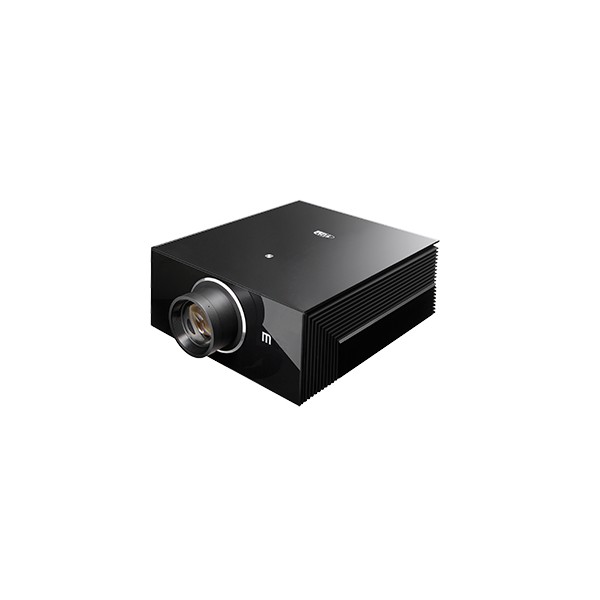

Proyector LED 3D SIM2 M.150 S

Proyector LED con tecnología 3D SIM2 Super Pure LED •Resolución HDTV 1920x1080 pixel •0.95" 1080p DLP®DarkChip4 de Texas Instruments •Plataforma electrónica SIM2 LUMIS 3D-S •SIM2 Pure Movie •SIM2 Pure Motion 2D/3D •Relación de contraste superior a 100.000:1 con Dynamic Black •Luminosidad superior a 1.200Lumens (equivalente a 1.800 Lumens en proyector de lámpara convencional) •Gamut de Color>128% NTSC •Software de control y calibración Easy LED •Encendido/Apagado instantáneo •Vida estimada del LED superior a 30.000horas •Dimensiones:420x202x532mm(AnxAlxPr)• Peso: 32Kg • Color: Negro/cristal. [Gafas 3D NO incluidas]

As the world’s first 3D active LED video interior design system, the M.150 S projector is a one-of-kind solution for discerning customers who desire a unique way to enhance the beauty of their home: a window of light created with cutting-edge projection technology.
Building on the success of SIM2’s award-winning M.150 platform, the brand-new M.150S projector represents the culmination of over 2 years of research in the field of engineering, performance, and component selection. The LED top-of-the-line M.150S is a projector where each component has been hand-selected for its excellence and reliability, and fine-tuned to deliver unprecedented picture quality and performance. It’s superb colorimetry, estreme accuracy, and reliability exceed the expectations of the most discerning customer.
The M.150S utilizes 0.95” DarkChip DLP® chipset (the same used in commercial cinemas), Super PureLED, active 3D(*) technologies and only the finest and carefully chosen selection of components.
SUPER PureLED technology is a true all-digital system, with a trio of LEDs (red, green and blue) acting as both light and color source for the DLP® chipset.
The projector’s ability to render 3D(*) images and a variety of more-consistent color gamuts, over and above those used in home theater, means that color space specifications for a wide variety of applications can be fulfilled. Indeed, the M.150 S can deliver an unbelievable 128% NTSC and HDTV (REC. 709) color standards, as well as:
• Adobe RGB, which is an extended color space used in critical viewing applications where exacting color reproduction is required. Such applications include: professional photography, graphics and printing, CAD/CAM labs.
• CINEMA color space that responds to the highly specialized needs of post-production houses.
The M.150S projector produces images with amazing clarity and realism, delivering 1,200(**) lumens light output (the equivalent of 1,800 lumens(**) of lamp-based projectors) and a contrast ratio of 100,000:1 with DynamicBlack™ technology. In the M.150S the DynamicBlack technology is completely electronic and operates on a frame-by-frame basis and at a frequency of 120 Hz.
SIM2 has made 3D(*) vision the most natural attainable, avoiding the fatigue and perception of the ‘artificial’ image quality that is typical of other competing 3D systems.
The video processing - the same as that used in SIM2’s high-end SUPERLUMIS 3-chip series - ensures that the image is correctly separated so that each eye (right and left) sees only the view dedicated to it. Also, the system has been endowed with three user modes, each optimized for the varying demands of sports and 3D viewing: PureFilm, PureAction and PureAction 3D (120 Hz).
The M.150 S gives the viewer a totally new experience in terms of picture quality with the bonus that the user is free from lamp replacement. The typical life of the LED modules is estimated at around 30,000 hours.
The M.150S is offered in crystal-glass surfaced black (BG).
TYPICAL APPLICATIONS
Medium/large home theaters, media rooms and family/games room with moderate ambient light.
Ideal for color-grading applications.

(*) A SIM2 3D emitter and glasses pack is required to initiate this feature (sold separately).

(**) Takes into account Helmholtz-Kohlrausch effect where brightness rises with color saturation. LED projectors produce richer and more saturated colors, thus appearing brighter than a lamp-based display with similar measured lumen specifications.

LIGHT ENGINE

Technology 1 x 0.95” chip DMD
Resolution Full HD 1920 x 1080 pixels
Lighting system SUPER PureLED technology
3D(*) Features SIM2’s PureAction 2D/3D and SIM2’s PureMovie 2D technologies
SIM2 DynamicBlack™ Technology enhanced solution (digital)
Overlap™ Technology
Contrast ratio (Full ON/OFF) >100,000:1 with DynamicBlack™
Brightness 1200 lumens (the equivalent of 1,800 lumens(**) of lamp-based projectors)
Expected LED lifetime 30,000 hours
INSTALLATION

Lens option (throw ratio) 1.5-2.1:1 (type T1);
2.1-3.9:1 (type T2)
0.675:1 (type ST)
Motorized Lens shift V +60% / - 25%, H +/-8% (no shift for ST lens)
Digital keystone adjustment Vertical and Horizontal
Picture size (inches diagonal) 65-200
Aspect ratio 4:3, 16:9 Anamorphic, LetterBox, panoramic, pixel to pixel + 3 custom-user adjustments
ELECTRONICS

Horiz. & vertical scan frequency 15-80kHz/48-120Hz;
Color System PAL (B,G,H,I,M,N,60); SECAM; NTSC 3.58; NTSC 4.43
PC graphic standards VGA, SVGA, XGA,SXGA, UXGA, WUXGA
SDTV 480i/p, 576i/p;
HDTV 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p
Color Space selection HDTV - EBU - SMPTE-C - ADOBE RGB - CINEMA
INPUTS/OUTPUTS

Analog 1 x Composite Video (RCA)
1 x Component - YCbCr/RGBs (RCA)
1 x Graphic RGBHV/YCrCb (1x D-Sub 15 pin)
Digital 2 x HDMI (v.1.4 with Deep Color)
Control 1 x RS-232
1 x USB (B type socket)
Miscellaneous 3D Sync Out
3x OUT 12V (via DC Jack)
GENERAL SPECIFICATIONS

Software control upgradable via RS-232 serial interface or USB
Power supply 100-240 VAC +/-10% (48/62 Hz)
Power consumption max. 370W
Projector weight 28 kg. / 61.7 lbs
Projector dimensions (WxHxD) 420 x 202 x 532 mm (16.5” x 8” x 21”)
ACCESSORIES

Supplied Installation and user manual
AC power cords (2m- 6.6 ft)
Backlit remote control and batteries
EasyLED 2.0 software
Optional SIM2 VISUS Active glasses, IR emitter (optional)(*)
SIM2 VISUS Active glasses (additional pairs)
Anamorphic Lens system (motorized or static)
SIM2 Universal Ceiling Bracket
