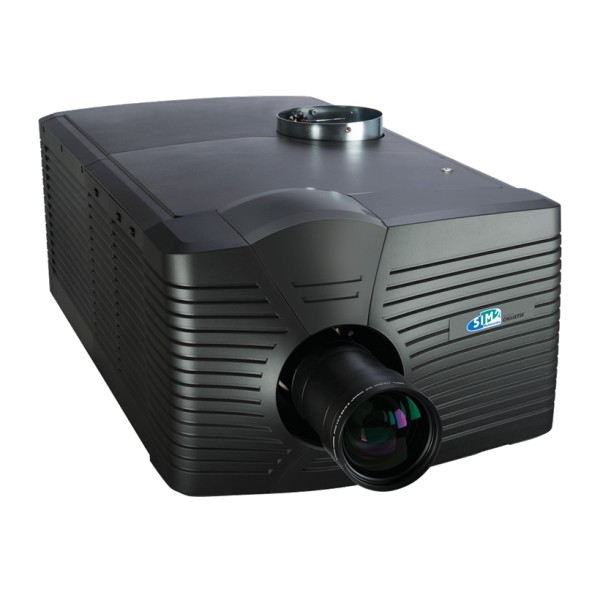

Proyector 4K SIM2 Cinema Quattro

Cinema 4K (4096x2160) chip 1.38 ”DLP •Procesado avanzado de SIM2 (conescaladoa4K) •Óptica de calidad superior •Tecnología activa 3D (triple flash 144Hz) •Objetivo con ajuste perfecto •Incluye gafas activas VISUS 3D •Lámpara Xenon de 2KW •Luminosidad de 10.000 ANSI Lumens (hasta 25.000 ANSI Lumens utilizando lámpara opcional –preguntar para más detalles) •9 tipos de lentes diferentes •Panel de control táctil LCD •Conexión Ethernet •Color de la carcasa: Negro mate

CINEMAQUATTRO delivers the ultimate in high-end projection thanks to its cinema 4K (4096x2160) 1.38in DLP Chipset, and produces darker blacks and brighter whites along with the widest color gamut range for more true-to-life images.
The CINEMAQUATTRO high-contrast light engine is capable of delivering up to 10,000 ANSI Lumen to cope with the biggest screens available in the market.
Flexibility is also key in terms of performance. CINEMAQUATTRO allows for the use of different lamp powers depending on your application needs. The motorized lens mount, user replaceable lamps and field alignable DMD’s ensure that set up is fast, and maintenance time and costs are reduced.
Every CINEMAQUATTRO includes a choice of nine high quality lenses and a full VIP installation and service package including installation technical support and a full ISF calibration.

DISPLAY

Display technology type 3-chip 1.38” DMD™
Native resolution 4K (4096 x 2160)
Contrast 2000:1 (full on/off)
Brightness up to 10,000 ANSI (10,000 center) lumens – 2.0 kW lamp CDXL-20
Lamp type Xenon bubble (*)
Estimated life 2.0kW lamp, 3500 hrs (**)
LEN SES

Lens mount type Tool-free lens insertion system - Adjustable lens mounting
Lens mount motorized Horizontal and vertical offset - Focus - Zoom
Lenses fixed 0.72:1(1) - 1.0:1 (2)
Lenses zoom 1.13-1.31:1 (3)
1.31-1.63:1
1.63-2.17:1
1.98-2.71:1
2.71-3.89:1
3.89-5.43:1
5.0-7.69:1(3)
Lenses offsets ±13% Vertical ±4% Horizontal - all
lenses
INPUTS

Signals standard 2 x 3G HD-SDI on board
2 x HDMI 1.3 on board (physical DVI-I connectors)
Signals 2D (2K and 1080p: scaled up to 4K) 4K - 24/25/30Hz 4:2:2 10-bit (4 x 1.5G HD-SDI)
4K - 24/25Hz 4:4:4 12-bit (4 x 3G-SDI)
4K - 30Hz 4:4:4 12-bit (4 x 3G HD-SDI)2
4K (3840 x 2160) - 24/25/30Hz 4:4:4 12-bit (4x 3G-SDI)
4K (3840 x 2160) - 24/25/30Hz 4:2:2 10-bit (4x1.5G HD-SDI)
2K - 60Hz 4:4:4 8-/10-/12-bit (HDMI)
2K - 30Hz 4:2:2 10-bit (1.5G HD-SDI)
2K - 30Hz 4:4:4 12-bit (3G HD-SDI)
1080p - 50/60Hz 4:2:2 10 bit (3G-SDI)
1080p - 60Hz 4:4:4 8/10/12-bit (HDMI)
Signals 3D –triple flash - scaled up to 4K 2K - 24Hz 4:4:4 12-bit (2 parallel 3G HD-SDI)
2K - 24Hz 4:2:2 10-bit (2 parallel 1.5G HD-SDI)
1080p - 24Hz 4:4:4 8-/10-/12-bit (2 parallel DVI-D)
Signals 3D – double flash - scaled up to 4K 2K - 24Hz 4:4:4 12-bit (2 parallel 3G HD-SDI)
2K - 24Hz 4:2:2 10-bit (2 parallel 1.5G HD-SDI)
2K - 30Hz 4:4:4 12-bit (2 parallel 3G HD-SDI)
2K - 30Hz 4:2:2 10-bit (2 parallel 1.5G HD-SDI)
1080p - 24/25/30Hz 4:4:4 8/10/12-bit (2 parallel DVI-D)
Inputs/control and networking RS-232, Ethernet (10/100) RJ45, Detachable LCD control module
GENERAL AND ACCESSORIES

Operating voltage Single phase 200-240 VAC @ 50/60Hz
Operating current 23A max @ 200V
Dimensions (LxWxH) 51.1 x 25.5 x 19.0” (1299 x 648 x 480mm) with lens cover
Weight 251 lbs (114 kg)
Operating temperature 50-95°F (10-35°C)
Humidity (non-condensing) 20-80%
Accessories standard Detachable LCD control module - AC line cord for projector head - Heat extraction fan kit (required when operating projector)
Accessories optional Lamp kit - Rack mount pedestal - Replacement air filter for light engine - Replacement air filter for liquid cooling radiator
