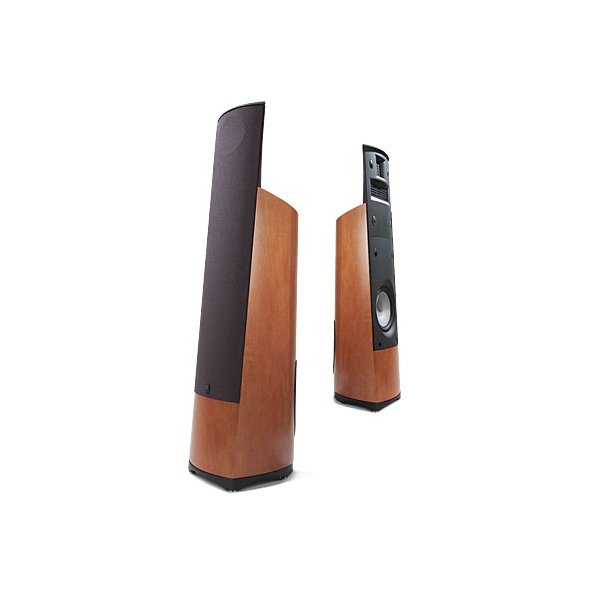

Martin Logan Mosaic
producto agotado y descatalogado. No disponible
Mosaic's ATF (Advanced Thin Film) drivers deliver near-electrostatic sound quality at lower cost and from smaller panels. Indeed, we've never before heard the kind of pinpoint yet three-dimensional stereo imaging they produce from anything other than our electrostats. Combining these extraordinary drivers with the award-winning Clarity's cabinet technology, an 8-inch aluminum-cone woofer, and a high-performance Vojtko crossover yields a great-sounding, stylish loudspeaker at a very affordable price.
46–20,000 Hz ±3dB
High Frequency Transducer
1.5" × 2.25" (3.8 × 5.7 cm) ATF™ Transducer
Mid Frequency Transducer
1.5" × 6" (3.8 × 15.2 cm) ATF™ Transducer
Low Frequency Transducer
8" (20.3cm) high excursion, high rigidity aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex
90 dB/2.83 volts/meter
5 Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20‒350 watts per channel
450, 3000 Hz
Air core coils, metal film and low dissipation electrolytic capacitors
Custom 5-way binding posts
30 lbs. (13.6 kg)
40" × 9.44" × 11.69"
(102cm × 24cm × 29.7cm)
