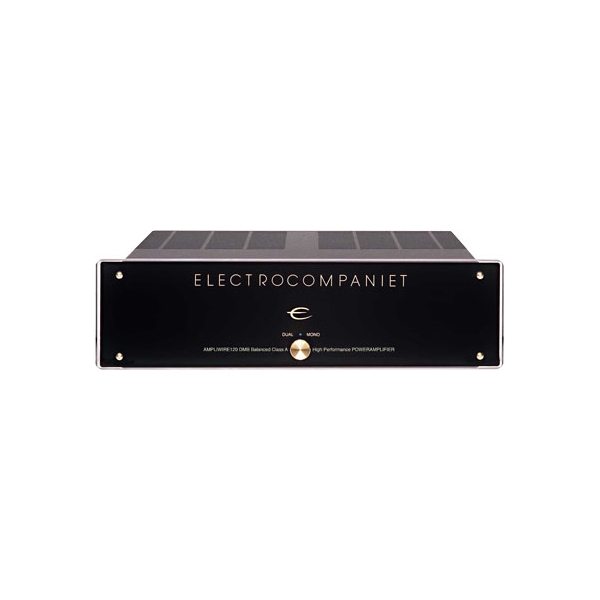

Etapa Electrocompaniet AW 2x 120M

The Electrocompaniet AW120DMB power amplifier is based on the design philosophy of the highly acclaimed AW180M monaural power amplifier. The AW120DMB incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply. First class overall circuit design and state-of-the-art components. Uncompromising sonic and mechanical quality. A current reservoir of 150.000uF delivers 2 x 120 W of clean and powerful dynamics into an 8 Ohms load. Just like the rest of our power amplifiers, the AW120DMB is stable down to 0,5 Ohms. The Electrocompaniet AW120DMB features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power. Technical specifications -------------------------------------------------------------------------------- All measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output Impedance (20 Hz - 20 kHz) < 0,01 ohm RCA (single) input impedance 220 kohm XLR (balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max. peak current > 100 A THD (measured at 1 kHz -1 dB, 8 W) < 0,002 % Noise (measured with both inputs shorted) 400 Hz - 30 kHz : 90 µV 10 Hz - 30 kHz : 100 µV Rated output power 8 W 2 x 120 W 4 W 2 x 200 W 2 W 2 x 350 W Power consumption (no load or signal) 161 W Dimensions Width 483 mm / 19 inches Depth 385 mm / 15 inches Height 135 mm / 5.3 inches Weight 19 kg. / 41.8 lbs Etapa de potencia estereo 2x120w. Fuente de alimentación sobredimensionada. Entradas XLR. Excelente calidad de sonido.
