Lector CD Audio Research CD5, oferta Demo con 2 años de garantía

The CD5 was designed for one purpose, to play back compact discs with a stunning level of resolution, dynamics and
musical natural- ness. It is a remarkable digital turntable for your compact discs, drawing you into the music and keeping
your attention as you listen to one disc after another.
The CD5 will play back normal “red book” music CDs, CD-R/RW discs, and hybrid SACDs, but it will not play back DVD-A,
DVD-video or SACD-only discs. Why? Because we firmly believe that the compromises built into multi-format playback Oferta Demo Lector CD. Circuiteria de grado audiofilo. Mando a distancia. Salidas audio RCA/XLR. Carga superior.
devices sacrifice sonic performance in the CD format. Most music lovers have extensive compact disc collections that
continue to grow, so it only makes sense to play back those collections as faithfully as possible. Whether you have 100 or
10,000 discs, don’t you want them to sound their best? Compromise was not built into the CD5’s design.
The CD5 retains the best physical attributes and features of its predecessors while offering dramatically improved
performance. The CD5 relies on the substantial Philips PRO2M laser mechanism mounted to a machined aluminum Ibeam with Audio Research’s proprietary mounting system and damping for ultralow mechanical jitter. The I-beam, in turn,
is bolted to a heavy, machined aluminum plate for maximum rigidity. New high-performance circuit board material and
an all-new FET direct-coupled analog output stage with beefy regulated supplies yield better performance that’s
measurable: channel separation is improved from 92 dB to 120 dB, and S/N ratio is improved from 90 dB to 114 dB. The
CD5 is even “greener,” drawing just 14 watts at idle compared to 26 watts for its predecessor.
Operationally, the CD5’s control functions are straightforward and identical to its predecessor with one exception: it now

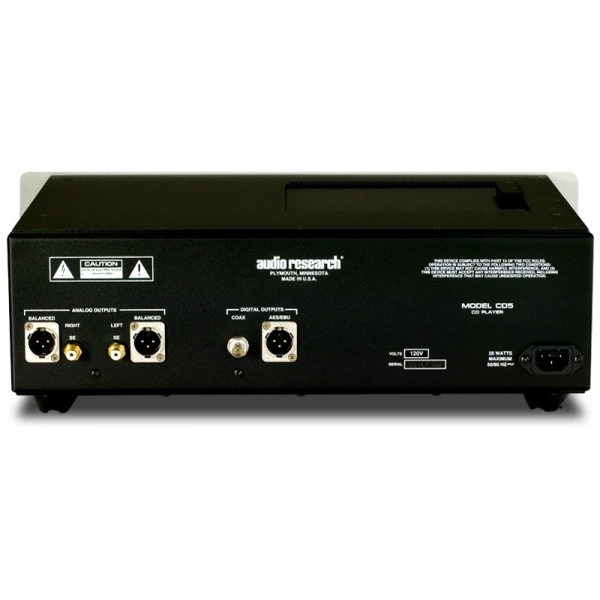

has a dimmable display with four levels of illumination, plus off. Analog outputs include balanced XLR and single-ended
RCA. Digital outputs include AES-EBU/XLR and coax/BNC. The line cord is detachable with a 15-amp connector.
In performance, the CD5 approaches the attributes of the flagship Reference CD8: a larger, more dimensional soundstage,
higher resolution of subtle dynamics, fewer digital artifacts and less grain. The top end is airier without dryness, while bass
definition and control are both more precise and powerful. The overall sense of transparency and purity is simply
breathtaking, offering a sense of relaxed intimacy with the recorded performance. You will enjoy finding new information

SPECIFICATIONS
OUTPUTS, ANALOG: (Stereo) 1. Balanced XLR 5.2V RMS (+14.3dBv) max. 2. Single-Ended RCA 2.6V RMS (+8.3dBv) max.
OUTPUT IMPEDANCE: (Analog) 500 ohms BAL, 250 ohms SE.
FREQUENCY RESPONSE: 0.5-20,000 Hz +0 -1dB.
SIGNAL TO NOISE RATIO: BAL 114 dBA below 20kHz.
DISTORTION: .06% 1kHz.
RESOLUTION: 24 BIT DAC.
CHANNEL SEPARATION: 120dB 1kHz.
OUTPUTS, DIGITAL: (to external Digital-to-Analog Converter) 1.XLR Balanced AES/EBU 110-ohm 4V P-P. 2.BNC coax
SPDIF 75-ohm 0.7V P-P.
SIGNAL FORMAT (disc): Sampling frequency: 44.1kHz. • Quantization Bit: 16bit linear per channel. • Channel bit rate:
4.3218Mb/sec. • Channel modulation code: EFM (8-14 modulation) • Error correction: CIRC (cross interleave Reed
Solomon Code).
DRIVE MECHANISM (top load): Wow & Flutter: unmeasurable (Quartz stability) • Discs: Accepts 5" (12cm) and 3" (8cm)
sizes.
OPTICAL PICKUP: Less than .005% at 2V RMS output. • Type: 3-beam LDGU (Laser Diode & Grating Unit), with
holographic diffraction light pen. • Laser: GaAIAs semiconductor, 780nm, 0.5mW maximum output. • Servo: Digitally
controlled low-inertia linear positioning actuator.
JITTER REDUCTION: High-stability crystal-controlled re-clocking for all outputs.
DISPLAY: Six-digit vacuum fluorescent, with optical filter.
FRONT PANEL CONTROL FUNCTIONS: PREV selection • PLAY disc • NEXT selection • PAUSE program • STOP disc
STANDBY operate/standby mode
INFRARED REMOTE CONTROL FUNCTIONS: (Standard RC5 code, 30ft (9m) max distance) • 0-9 digit entry keys •
SCAN ten seconds each track • PAUSE program • REP repeat track/disc • STOP program • PLAY disc • SHUF random
sequence play • search, REV • search, FWD • STBY operate/standby mode • PROG enters selection on program list • TIME
elapsed, remaining track; remaining disc • A/B repeats segment • previous track • next track • DSP DN Decrease display
intensity • DSP UP Increase display intensity
POWER REQUIREMENTS (detachable power cord): 100 - 135VAC 60Hz (200-270VAC 50/60Hz) 20 watts maximum.
(14 watts standby)
COMPLIANCE: RF Interference complies with FCC and CE MARK.
DIMENSIONS: 19" (45 cm) W x 5 ¼” (13.4 cm) H x 12 ¼” (31.1 cm) D. Handles extend 1 ½” (3.8 cm) forward of the front
panel. Rear connectors extend ¾” (1.9 cm).
