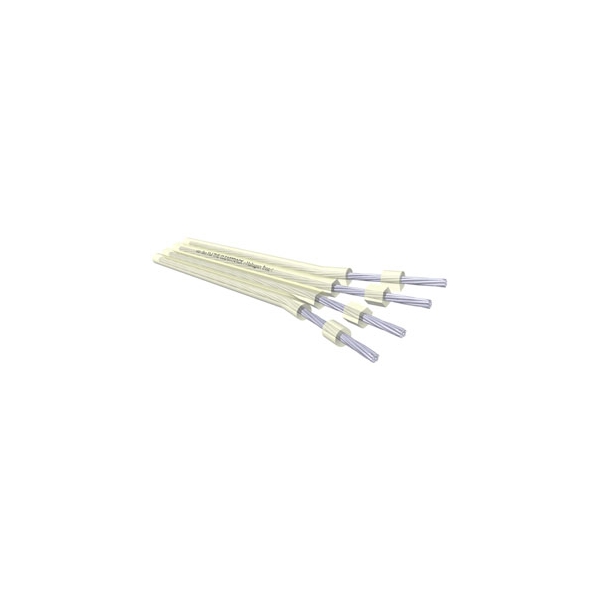

Van den Hul MC The Cleartrack
producto agotado y descatalogado. No disponible
precio/m. Especial para Bi-cablear. Diseño plano con conductores de cobre libre de oxigeno de alta pureza recubierto de plata, sección 1,97mms, dieléctrico de Hulliflex.
18€/m Especial para bicablear The CLEARTRACK is an elegant flexible quadruple conductor loudspeaker cable with outstanding qualities. The CLEARTRACK is a member of our AWG 14 quadruple lead / bi-wiring loudspeaker cable range which consists of of The CLEARTRACK, The SNOWTRACK and The SKYTRACK HYBRID. Each of its four leads contain 98 high purity dense Silver coated high purity Matched Crystal OFC strands with an effective cross-section area of 1.97 mm², closely approaching AWG 14. The resistance of each lead is 0.9 Ohm per 100 m. The capacitance between two adjacent leads is a low 45 pF/m. The CLEARTRACK is 16.5 mm. wide and 4.2 mm. thick. The cable’s jacket is made of transparent HULLIFLEX ® 3, a robust halogen free material excellently capable of shielding the copper conductors from the chemically threatening outside world. Sonically this cable is a great product with a very balanced overall quality and outstanding clarity. Polarity determination is simple: the four conductors have different insulator shapes, furthermore, one set has two cuts and the other set has only one cut and a flat surface at the other side with type printing. Printing at 25 cm. (10") distance allows easy cutting of lengths. It is advised to use the two inside conductors as the cold (-) leads and both outer conductors as the hot (+) leads. In our program we also have a twin lead version of this cable, named The CLEARWATER, available. Next to our standard sales units (see specifications below) The CLEARTRACK is also available on 100 m. reels packed in a 31 x 31 x 29 cm. box with a total shipping weight of 13.4 kg. Specifications: The CLEARTRACK Cable Type: Quadruple conductor Conductor Material: High purity dense Silver coated high purity Matched Crystal OFC Design Purpose / Application Area(s): Loudspeaker bi-wiring cable Eff. Conductor Ø / Eq. AWG No. / Strands: 4x(1.97 mm² / ~AWG 14 / 98) External Diameter / -Dimensions: 16.5 mm. wide; 4.2 mm. thick Resistance (20 °C / 68 °F): 0.9 Ohm/100 m. Capacitance: ~45 pF/m. Characteristic Impedance: - Insulation / Dielectric Strength / Test Voltage: HULLIFLEX ® 3 / 300 Vrms min. Connector Types Suitable: When combining leads into pairs (e.g. as twin lead speaker cable or at amplifier side of bi-wiring cable): Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors; Custom mountable on any length ordered; For termination of individual leads: Our 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our DIY Screw-On Speaker Connectors; Both custom mountable on any length ordered. Standard Sales Units / -Lengths: 100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country. With connectors mounted the cable is also available in stereo pairs (i.e. two separate cables) in the following standard configurations: Bi-amping configuration: Each of both cables having 4 connectors at the amplifier side and 4 connectors at the speaker side. Bi-wiring configuration: Each of both cables having 2 connectors at the amplifier side and 4 connectors at the speaker side. Normal wiring configuration: Each of both cables having 2 connectors at the amplifier side and 2 connectors at the speaker side. Jacket Colour(s) Available: Transparent Remarks: Is a quadruple lead / bi-wiring version of The CLEARWATER
