Van den Hul MC D352
  • Van den Hul MC D352

Van den Hul MC D352

1056
Novedad

precio/m. Conductores de cobre libre de oxigeno de alta pureza recubierto de plata más una estructura linear de carbono, sección 2 X 5,23mms, dieléctrico de Hulliflex.
Precio por metro sin conectores.

Cantidad
33 €
Impuestos incluidos

Financiación 12 meses SIN intereses - GRATUITA - Ver Condiciones

Pregunta al especialista
Envío gratuito

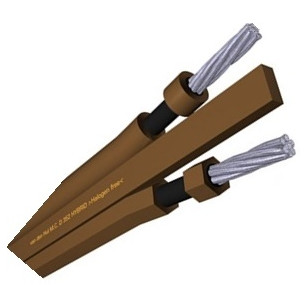

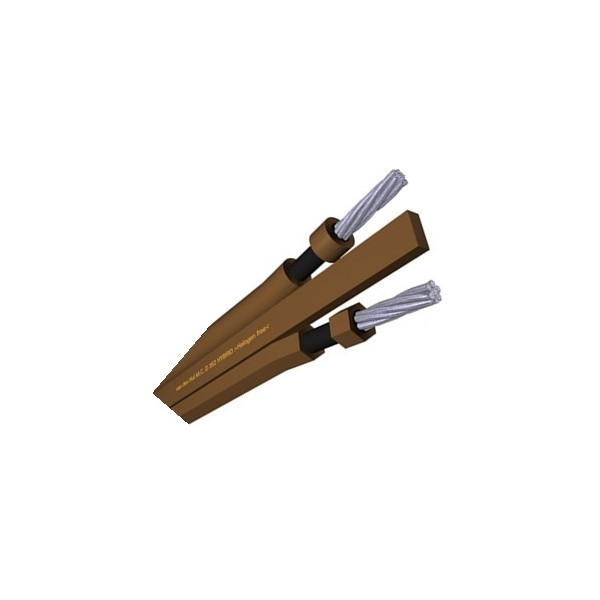

Description: This twin lead brown metallic coloured speaker cable is designed to provide a very high transfer quality at a moderate price. Each lead is made of 296 x 0.15 mm. Matched Crystal (MC) high purity OFC strands with a dense and very pure silver coating. Covering the two conductors an extra layer saturated with Linear Structured Carbon Ž is applied to improve the sonic performance and to transform the radiated magnetic field into an audio signal again. The cable jacket is made of our HULLIFLEX Ž 3, a very flexible and mechanically superb insulation material. The resistance per lead is: 0.34 Ohm/100 meter. Total metal cross-section area for each conductor is 5.23 mm˛, equalling AWG 10. The capacitance between the 2 leads is: 32.5 pF/meter. The plus and minus leads are different in jacket-shape with printing in the flat middle section. Both properties are easy polarity-finders. Type printing at 25 cm. (10") distance makes cutting of specified lengths very easy. Our 4.0 mm. Ř cable entrance diameter Bus type Universal Speaker Connectors and our DIY Screw-On Speaker Connectors are excellently suited for the D - 352 HYBRID. Packing conditions: 50 meters per reel with a total shipping weight of 10.4 kg. incl. the packing box with external dimensions in mm.: 310 x 310 x 290. Specifications: D - 352 HYBRID Cable Type: Twin conductor Conductor Material: HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon Ž saturated layer(s) Design Purpose / Application Area(s): Loudspeaker cable Eff. Conductor Ř / Eq. AWG No. / Strands: 2x(5.23 mm˛ / AWG 10 / 296) External Diameter / -Dimensions: 21.0 mm. wide; 6.5 mm. thick Resistance (20 °C / 68 °F): 0.34 Ohm/100 m. Capacitance: 32.5 pF/m. Characteristic Impedance: - Insulation / Dielectric Strength / Test Voltage: HULLIFLEX Ž 3 / 300 Vrms min. Connector Types Suitable: Our 4.0 mm. Ř cable entrance diameter Bus type Universal Speaker Connectors or our DIY Screw-On Speaker Connectors; Both custom mountable on ordered lengths. Standard Sales Units / -Lengths: 50 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country. Jacket Colour(s) Available: Brown metallic Remarks: Self mounting of connectors is not advised since special soldering equipment is required; Our custom connector mounting service is available.
