Van den Hul HDMI Flat 180
  • Van den Hul HDMI Flat 180
  • Van den Hul HDMI Flat 180

Van den Hul HDMI Flat 180

3147 - 01

HDMI v1.4a compatible 3D versión acodada con giro 180º

Longitud
104 €
Impuestos incluidos

Pregunta al especialista

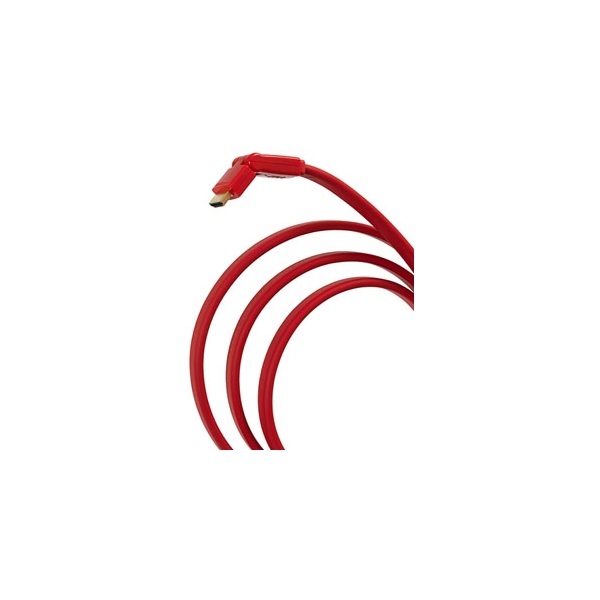

The VDH HDMI Flat 180 is a new high quality, flat shaped, HDMI cable with clever tiltable connectors that make an edge when there's little room behind your equipment.
The VDH HDMI Flat 180 is fully compliant with the High Speed (1.4) standard for lengths up to 5 meter, offers effortless performance even at long 15 meter runs (1080i warranted) and is available in a wide range of standard lengths.

With The VDH HDMI Flat 180 our included unique design and material features provide unparalleled added value in terms of signal transport quality and fidelity, cable lifespan and environmental friendliness. Applied throughout our product range, this more serious cable design and production approach makes van den Hul stand out from the rest.

The VDH HDMI Flat 180 features:
  • Fully compliant with the HDMI™ High Speed specifications for lengths up to 5.0 meter.
  • Handles 1080i resolution up to 15.0 meter.
  • Very smart and handy connectors that can be tilted sideways, allowing screens and equipment to be placed very close to walls without harming the cable or connectors.
    The connectors are high-quality HDMI ‘Type A’ connectors with heavy gold plated contacts which provide solid and reliable connections.
  • High-density-coated Oxygen Free Copper conductors warrant minimum signal attenuation.
    In addition to the cable's Hulliflex ® jacket, the internal conductors' special coating adds extra protection against aggressive environmental conditions.
  • Environmentally friendly and durable:
    The HDMI Flat 180's red coloured jacket is made of our robust, halogen free, Hulliflex ®.
    Hulliflex ® provides long term stability of the cable’s mechanical and electrical properties. It is for instance chemically closed, protecting the leads inside from external influences. It is also environmentally friendly, both in production and during its use, as well as after many years of service: Even after disposal it can be burned in an incinerator without producing harmful gasses or toxic waste.
  • Flat shaped:
    With the HDMI standard's enormous digital data throughput of up to 10.2 Gigabits per second, the cable's designed flat shape reduces crosstalk. The result is a higher signal integrity (especially at larger cable runs), which translates into superb digital video and sound quality.
    The flat shape also provides extra mechanical flexibility as well as extended options in architectural friendly installation, like running the cable through skirting.
  • Decades of service life for install use.
  • Available in a wide range of lengths: 1, 1.5, 2, 3, 5, 7.5, 10, 12.5 and 15 meters.

Offering exceptional performance and value for money, The VDH HDMI Flat 180 delivers clear sharp images, accurate colour definition, vivid contrast and an infinity of fine detail up to the highest video resolutions. Sound at any digital format is matchless.


Note: To convert from HDMI™ to DVI with this cable, we have a separate HDMI to DVI Adapter available.
Furthermore, to recondition the HDMI signal in A/V installations where the cable lengths are significant, we have a separate HDMI Repeater available.


A summary of our HDMI cables' performance:
The VDH HDMI: HDMI™ 1.3 compliant
Handles 1080p resolution up to 7.5 meter and 1080i resolution up to 12.5 meter DISCONTINUED
The VDH HDMI HQ: HDMI™ 1.2 compliant and HDMI™ 1.3 compatible up to 7.5 meter
Handles 1080i resolution up to 15 meter DISCONTINUED
The VDH HDMI Flat: HDMI™ High Speed compliant up to 7.5 meter
Handles 1080i resolution up to 15.0 meter
The VDH HDMI Flat 180: HDMI™ High Speed compliant up to 5.0 meter
Handles 1080i resolution up to 15.0 meter
The VDH HDMI Ultimate: HDMI™ High Speed compliant up to 10.0 meter
Handles 1080i resolution up to 25 meter
Please note: The lengths mentioned above are the minimum distances up to which the given performances are warranted. However, in most situations larger distances can be accomplished.

Related Articles & Papers:

Cable Type: HDMI
Conductor Material: High density coated high purity OFC
Design Purpose/
Application Area(s): 		HDMI™ standard digital AV interface
External Diameter /
-Dimensions: 		14.6 mm. wide; 6.0 mm. thick
Insulation / Dielectric Strength / Test Voltage: Internal conductors: Cell PE; Jacket: HULLIFLEX ® / - /
Connector Types Suitable: As ready mounted: Tiltable 19 pin HDMI Type A (all required HDMI signals wired)
Standard Sales Units / -Lengths: Single packed, fit with HDMI connectors in 1, 1.5, 2, 3, 5, 7.5, 10, 12.5 and 15 meter lengths.
Jacket Colours Available: Red
Remarks: This cable is compliant with the HDMI v1.4 fast speed specification for the High-Definition Multimedia Interface (HDMI™) for lengths up to 10.0 meter.
Functionality of all video resolutions at all display modes up to and including 1080p is warranted for lengths up to 10 meter and 1080i up to 15 meter length.
Connectors need to be factory mounted.
Our HDMI to DVI Adapter is available as a separate accessory.
Our HDMI Repeater is available as a separate accessory.

3147 - 01
