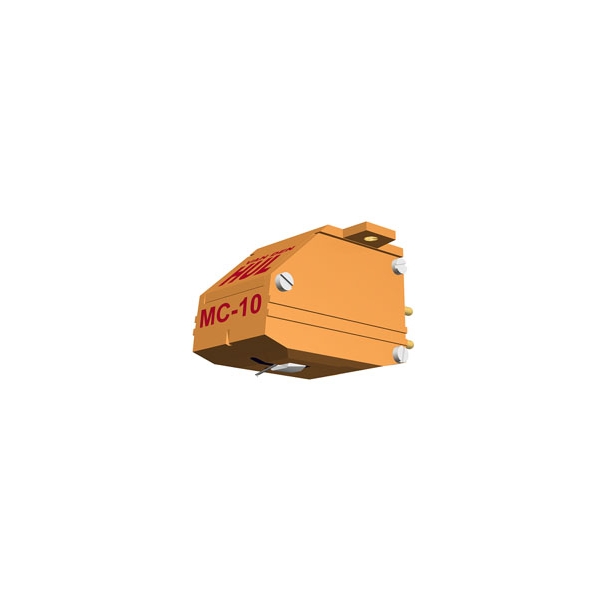

Capsula Van den Hul MC 10 Special

Van den Hul MC 10 Special
Novedad

Capsula MC, bobina móvil. Cantilever de boro. Aguja eliptica. Nivel de salida 0,65mV.

  • Description: A custom handbuilt moving coil cartridge with VDH-type 1 tip, boron cantilever, matched crystal silver-wire coils and 0.65 mV/channel. The designation “Special” in this cartridge’s name indicates important improvements over its previous version: The cartridge is equiped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage. Specifications: Cartridge Type MC - 10 Special Unit Stylus Replacement Available see (*) Stylus Shape VDH - I Stylus Radii 3 x 85 Micron Frequency Range 5 - 50.000 Hz Tracking Force 13.5 - 15.0 mN Static Compliance 28 Micron / mN Tracking Ability at 15 mN at 315 Hz 70 - 80 Micron Output Voltage at 1 kHz at 5.7 cm/s eff. 0.65 mV RMS Channel Unbalance < 0.5 dB Channel Separation at 1 kHz/10 kHz >35 / >30 dB Equivalent Stylus Tip Mass 0.35 Milligram System Weight 8.2 Gram Vertical Tracking Angle 22 Degrees Optimum Load Capacitance see (**) pF Recommended Load Impedance 200 Ohm Recommended Eff. Tone arm Mass 8 - 12 Gram Moving Coil Resistance (per channel) 9 Ohm
