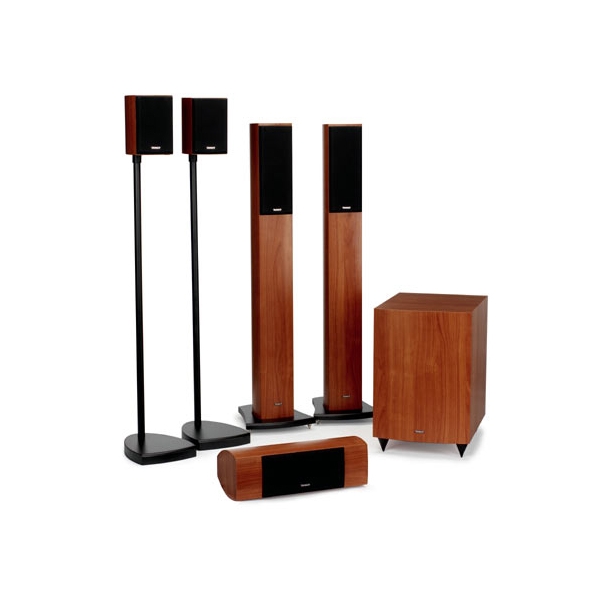

Tannoy HTS200

TECHNICAL SPECIFICATIONS SATELLITE SPEAKER Recommended amplifier power 25 - 100 Watts Maximum Sensitivity (2.83Volts @ 1m) 87dB Nominal impedance Satellite 6 ohm Frequency response (-6dB) 100Hz to 40kHz (Centre & Satellites) Drivers HF: 19mm (3/4inch) titanium WideBand™ dome, with neodymium magnet system LF: 75mm (3 inch) paper cone Crossover frequency 3kHz (LF to HF) Satellite Weight 1.3KG (2.9lbs) Satellite Dimensions (H x W x D) 162 x 120 x 170mm (6.4 x 4.7 x 6.7 inches) Supplied accessories Satellite wall brackets / 20metres (65 ft) speaker cable Optional accessories Satellite floor stands with mounting brackets available in black finish CENTRE SPEAKER Recommended amplifier power 25 - 100 Watts Maximum Sensitivity (2.83Volts @ 1m) 87dB Nominal impedance 8 ohm Frequency response (-6dB) 100Hz to 40kHz (Centre & Satellites) Drivers HF: 19mm (3/4inch) titanium WideBand™ dome, with neodymium magnet system 2 x LF: 75mm (3 inch) paper cone Crossover frequency 3kHz (LF to HF) Centre Weight 2.7KG (5.9lbs) Centre Dimensions (H x W x D) 120 x 355 x 170mm (4.7 x 14 x 6.7 inches) Supplied accessories Centre support platform / 20metres (65 ft) speaker cable Optional accessories Satellite floor stands with mounting brackets available in black finish TOWER SPEAKER Recommended amplifier power 25 - 100 Watts Maximum Sensitivity (2.83Volts @ 1m) 88dB Nominal impedance 6 ohm Frequency response (-6dB) 80Hz to 40kHz Drivers HF: 19mm (3/4inch) titanium WideBand™ dome, with neodymium magnet system 2 x LF: 75mm (3 inch) paper cone Crossover frequency 3kHz (LF to HF) Centre Weight 5.8KG (12.8lbs) Centre Dimensions (H x W x D) 940 x 120 x 170mm (37 x 4.7 x 6.7 inches) Supplied accessories Adjustable coupling spikes and wood floor protectors SUBWOOFER Power output 100 Watts Frequency response (-6dB) 29Hz - 200Hz Crossover frequency 50Hz to 200Hz variable control Driver 200mm (8 inch) paper cone, long throw Inputs Line Input (LFE RCA/Phono) or Left & Right speaker level input. Power requirements 115 or 230V AC / 50 - 60 Hz, switching facility on amplifier panel, 60VA Fuse ratings AC 100-120V/60Hz - Fuse: T1.6A L /125V / AC 220-240V/50Hz - Fuse: T800mA L /250V Additional features Energy saving AUTO power function, Switchable phase 0 or 180 degrees, Crossover and Volume control Weight 10.2KG (22.4lbs) Dimensions (H x W x D) 420 x 275 x 405mm (16.5 x 10.8 x 16 inches) Supplied accessories Port tube air flow modifier / Country specific mains cable (cord)
