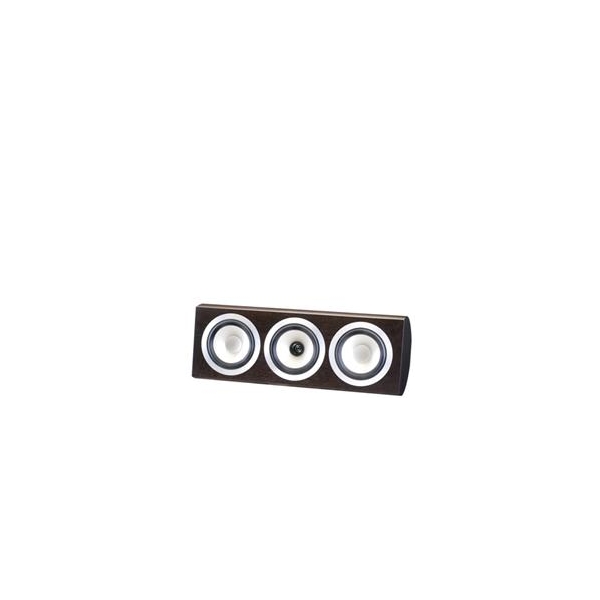

Altavoz central Tannoy Revolution Signature DC6 LCR

Características técnicas:

 Altavoz central. 2 vias,8 ohmios. Sistema suspensión acustica. Varios acabados. Tecnologia Dual Concentric.

producto descatalogado y agotado. Sustituido por Revolution DC6

Passion, performance and precision 80 years in the making - and more affordable than you might think. Isn’t it time you escaped with a Revolution Signature? Bristling with cutting edge acoustic technology, the Revolution Signature DC6 LCR is a high performance and versatile left, centre or right channel home theatre loudspeaker. The 150mm (6.00") point source, constant directivity Dual Concentric™ drive unit is augmented by a additional 150mm (6.00") bass driver and 150mm (6.00") passive radiator. WideBand™ extended frequency response combines with premium crossover components, driver earthing and a rigidly constructed, sensuously styled curved trapezoidal cabinet to ensure natural midrange, high intelligibility, airiness and expansive sound staging.

Revolution Signature DC6 LCR PERFORMANCE Recommended amplifier power 20 – 175 Watts RMS Continuous power handling 87 Watts RMS Peak power handling 350 Watts Sensitivity 89dB (2.83V @ 1m) Nominal impedance 8 Ohms Frequency response 34Hz – 35kHz (-6dB) Dispersion 90 degrees conical

DRIVE UNIT Dual Concentric™ high frequency 25mm (1.00”) titanium dome with Tulip WaveGuide™ Dual Concentric™ low frequency 150mm (6.00”) treated paper pulp cone with rubber surround and 44mm (1.75”) edge wound voice coil Bass driver 150mm (6.00”) treated paper pulp cone with rubber surround and 44mm (1.75”) edge wound voice coil Passive radiator 150mm (6.00”) treated paper pulp cone with rubber surround

CROSSOVER Crossover frequency 1.7kHz Crossover type Passive low loss 2nd order LF, 1st order HF

CONSTRUCTION Enclosure type Passive radiator ported Volume 18.4L 0.650 cu. ft.

Dimensions 226 x 600 x 225mm (H x W x D ex. grille)

Weight 12.2kg
