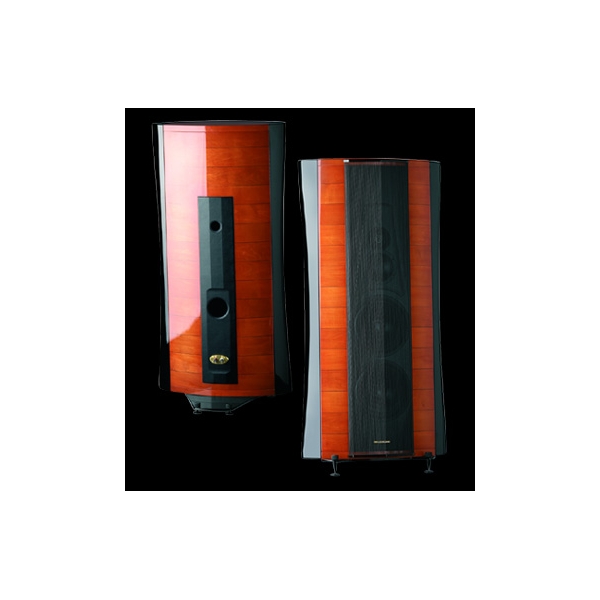

Altavoces Sonus Faber Stradivari Homage

492 - 02

producto agotado y descatalogado. No disponible


Envío gratuito
 Altavoz de suelo, 3 vias. Puerto reflex trasero. 4 Ohmios. Varios acabados. Altavoz de Referencia

High Frequency Spectrum The silk ring radiator employed is simply the finest version available from this family of drive units. Compared to metal membrane versions they exhibit a far broader bandwidth and wider dispersion while maintaining the inherent advantages over traditional dome shaped diaphragms. A carefully controlled frontal radiation pattern from the dual-wave diaphragm is due to a proprietary dual-toroidal wave-guide. This wave-guide, inspired by the concentric ripples generated by a drop falling on a still water surface, harmonically integrates the radiating diaphragm into the curved, virtually infinite, front baffle. The back wave of the diaphragm is loaded into a crafted wooden acoustic labyrinth, eliminating any unwanted reflections and colorations. Wood was chosen for it superior damping qualities when compared to either metal or plastic. Mid Frequency Spectrum A 150mm transducer was chosen for its extremely high dynamic linearity and many other qualities traditional to Sonus faber. The midrange spectrum is in fact the “soul” of the Stradivari system. Special care was taken to create absolute synergism between the character of the high frequency radiator and the electro-acoustic properties of the mid frequency driver. Inspiration came from the “Anima”, a little known device found within a violin. The Anima is what connects the top surface of the violin’s body to the bottom surface and without it; a violin simply would not be a violin! Internal to the Stradivari enclosure is a cardioid-shaped chamber that controls and dampens the reflections to the rear of the transducers cone. Its walls are “compression-held” by the front and rear of the outer structure and much like the “Anima”, it controls mechanical resonances for the most uncolored musical reproduction. Low Frequency Spectrum The dual 260mm drivers that comprise the low frequency system of the Stradivari employ cones made from an exotic aluminum/magnesium alloy that exhibits a great stiffness to weight ratio. These cones are treated with an elastic coating to further prevent any residual coloration. Additionally, a natural rubber surround delivers an optimal mechanical termination that allows for extra long cone excursion. Wooden coaxial anti-compressors remove any cavity compression effects and assists in the ventilation of the voice-coil, providing effortless low frequency extension. To avoid any mechanical modulation these drivers are housed in a tuned volume within the enclosure, isolated and decoupled from the mid and high frequency units by this separate sub-baffle. The transducers, within this properly loaded acoustical environment, are capable of true pistonic action and extraordinarily accurate mechanical behavior. Crossover The basic design approach incorporates both a multi-slope circuit topology and thoughtful control of both amplitude and phase over the entire musical spectrum. The chosen crossover transition frequencies are at the boundaries of the human voice spectrum, roughly 300Hz and 4,000Hz. Since the vast majority of acoustical musical instruments have their fundamentals below 4,000Hz, this transition point is the most seamless and least disruptive to musical harmonics. Another special aspect of the crossover design is the unique implementation of the filter structure that controls component micro-phonics and last but not least, the nature of the conductor in the signal path. To prevent harmful vibrations for affecting the integrity of the sound, the crossover is completely cast within a vibration inhibiting resin material. Additionally, the signal path from the crossover is enhanced by the use of a connection terminal made from a precious alloy of silver and palladium. Developed specially for this application and based on concepts of nanotechnology. System Type: Three-way elliptical design with virtual 2pi radiation and symbiotic tuning system Acoustic Enclosure: Multi-layered, constructively damped elliptically shaped enclosure formed using hand-selected wood layers, quality-graded, and oriented for optimized resonance control. Sub-structural ribs strategically placed for absolute rejection of spurious vibrations. High Frequency Spectrum: 33mm ultra-dynamic and linear Neodymium ring radiator with exclusive dual-toroidal wave-guide. Natural wood acoustic labyrinth rear chamber with mechanical anti-resonator synergistically designed and integrated. Mid Frequency Spectrum: 150mm ultra-linear drive unit. CCAW / Kapton and eddy current free voice coil. Dynamically linear magnetic field motor incorporating Kellog and Faraday rings. All moving elements optimally ventilated for resonance free response. Designed synergistically with its vented chamber. Low Frequency Spectrum: Dual 260mm lightweight aluminum/magnesium alloy cone drivers in an acoustically amorphous vented chamber. Dual Faraday copper ring long-throw motor system with 2pi eddy current free voice coil for ultra dynamic performance and linearity. Coaxial anti-compressors made of wood are employed to remove cavity resonance and distortions. Crossover: Special multi-slope circuit topology with optimized phase/amplitude response. Crossover points at 300Hz and 4kHz. Terminals and wiring use silver/palladium alloy with “nanotechnical” structure. Sensitivity: 92dB, 1W/1m Nominal Impedance: 4 ohms Power Handling: Minimum amplifier 30W, Maximum Amplifier 300W without clipping. Frequency Response: 22Hz - 40kHz


Dimensions: 650 x 500 x 1360mm (WDH)

Weight: 150 Kg/pair - 330.7 lbs/pair

without packing 195 Kg/pair - 429.9 lbs/pair shipping wieight

492 - 02
