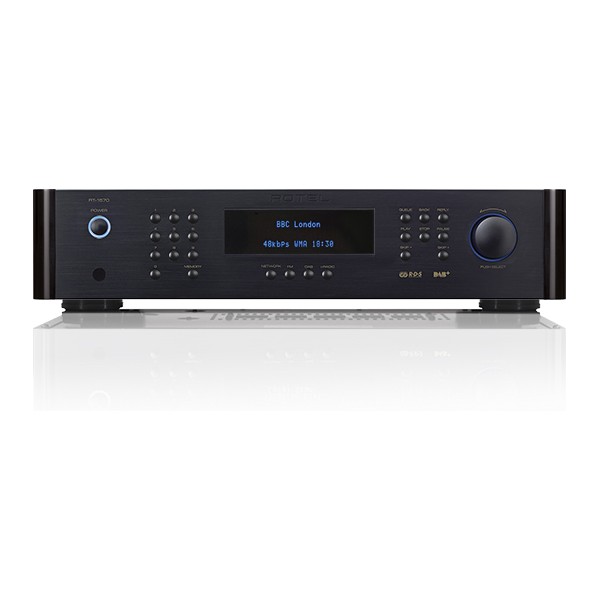

Reproductor Rotel RT1570

Rotel RT1570

Producto Agotado y Descatalogado. No Disponible

.

.

Opcion

Envío gratuito

Descripción del Producto
The RT-1570 not only offers conventional radio reception for FM and DAB stations (including DAB+ where available), but features internet radio streaming and audio playback from a media server.

Internally the RT-1570 features one of Rotel’s renowned toroid transformers with separate windings for four independent power supplies; two for the DAC circuits and a third for the filter and output stages. The filter/output circuits also include ‘Slit-Foil’ capacitors specifically developed for this model. The fourth power supply supports subsidiary circuits including the CPU and display. All of these circuits feature independent regulation and filtering as befits an audiophile product. The Wolfson DAC offers the advantage of differential outputs to maximise performance, in conjunction with selected components for the signal path, filter circuits and output stages.

As well as receiving FM and DAB (DAB+) stations, the RT-1570 will accept a range of audio codecs (most notably mp3, FLAC and AIFF), with resolution and sampling rates up to 24-bit/96kHz. This versatility means that most internet radio services and very high-resolution audio files (normally stored on a local media server) will be reproduced in their native format and resolution.

The RT-1570 can easily be incorporated into multi room systems via RS232 and controlled with the likes of Crestron or AMX. The ‘Rotel Link’ is a straight forward ‘plug and play’ method of controlling compatible ‘Rotel Link’ products including amplifiers and CD players. The RT-1570 also includes a 12V trigger for simple system on-off contro

Más Especificaciones
FM SENSIBILIDAD UTILIZABLE
22.2dBf

FM SENSIBILIDAD PARA UN NIVEL DE 50 DB
27.2dBf (Mono)

FM RELACIÓN SEÑAL/RUIDO (a 65dBf)
65dBf (Mono)
60dBf (Estéreo)

FM DISTORSIÓN ARMÓNICA TOTAL (a 65dBf)
0.2% (Mono)
0.3% (Estéreo)

FM RESPUESTA EN FRECUENCIA
10Hz - 15kHz ±3dB

FM SEPARACIÓN EN ESTÉREO (100Hz/1kHz)
40dB/30dB

FM NIVEL DE SALIDA
Línea: 1V
Digital: 0.7V

FM ENTRADA DE ANTENA
75Ω con conector en “Belling Lee”

TIPO DE CONEXIÓN EN RED
802.11b/g/n

PROTOCOLOS DE SEGURIDAD
WEP, WPA1 (TKIP), WPA2 (TKIP)

FORMATOS DE ARCHIVO COMPATIBLES (SERVIDOR DE MÚSICA UPNP)
AAC, MP3, WMA (excepto la versión sin pérdidas), Ogg Vorbis, WAV, AIFF, FLAC, AU

DIMENSIONES (AN × AL × P)430 × 99 × 310mm
ALTURA DEL PANEL FRONTAL2U / 88.1mm (3.5") ALIMENTACIÓN230V, 50Hz CONSUMO16W CONSUMO EN STANDBY0.5W PESO NETO6.33kg (14lbs.) BTU55 BTU/h

DAB SENSIBILIDAD
-80dBm DAB RANGO DE SINTONÍA
Band III (174-240MHz) DAB VELOCIDAD DE TRANSFERENCIA DE LOS DATOS DE AUDIO224Kbps Max DAB RESPUESTA EN FRECUENCIA20Hz - 20kHz ±1dB DAB NIVEL DE SALIDA2.1V a 0dBfs DAB ENTRADA DE ANTENA
no balanceada de 75 ohmios con conector en “F”

Nuevas Aplicaciones de control de Rotel y Classé

Rotel lanza la nueva aplicación para Android y mejora la aplicación para iOS

Junto con el lanzamiento de los nuevos modelos de Rotel empezando por el RT-1570, les informamos que ya está disponible la nueva aplicación de Rotel para su descarga en la App Store de Apple y también para sistema operativo Android.

La aplicación aparece como una "UPDATE" en la App Store, así que cualquier persona con la versión anterior recibirá una notificación en su Iphone y/o iPad.

La aplicación es completamente novedosa respecto a la versión anterior, los cambios más significativos son:
•Gráficos actualizados
•Actualización de la navegación y el control
•Mejora la estabilidad de la propia aplicación
•Soporta el modelo RT-1570
•Soporta la reproducción de ficheros en discos NAS (localiza servidores, facilita la navegación, se puede seleccionar música y crear listas de reproducción)
•Mejora la velocidad en el cambio de entrada y cambios de volumen
•Dispone de un tutorial inicial cuando se abre la aplicación por primera vez
La aplicación de Classé para Android ya está disponible en la Google Play Store
