Receptor AV Pioneer SC-LX79

Amplificador Pioneer SC-LX79
Receptor AV 9.2, Clase D. Dolby Atmos. WiFi, DLNA. Airplay. DTS:X Ready.

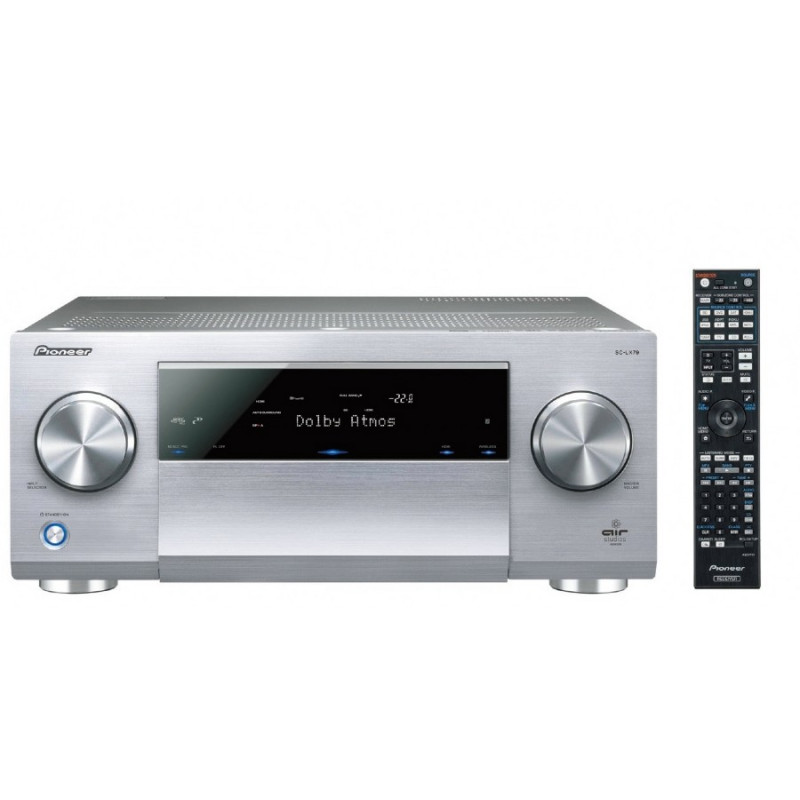

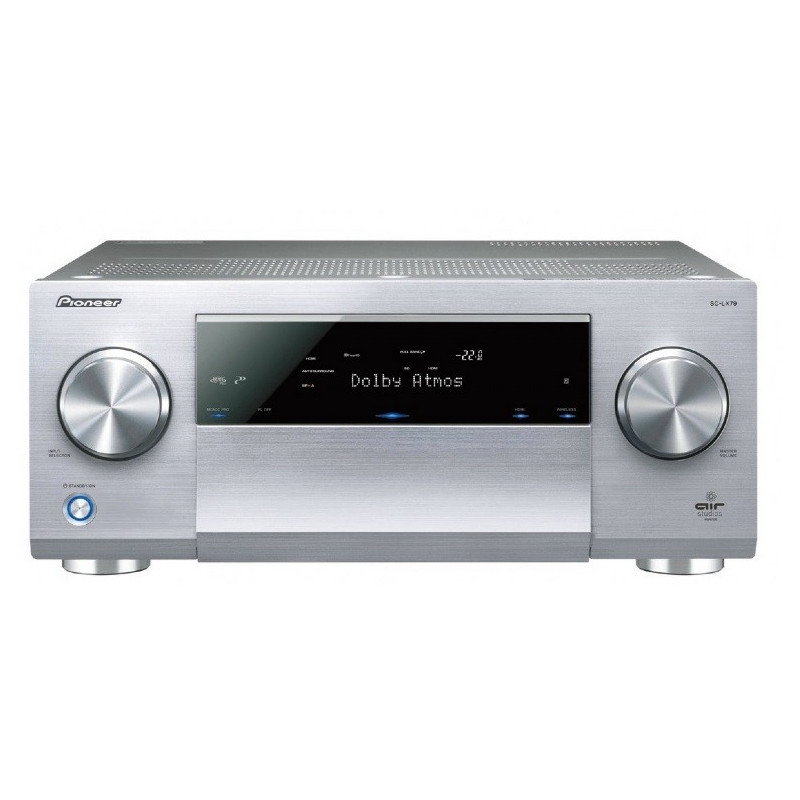

Disponible en color PLATA o NEGRO

 Enjoy precise audio reproduction, just as the creators intended with the AV receiver featuring Direct Energy HD (High fidelity class D) amplifier, SABRE32 Ultra DAC, and AIR Studios Monitor Certification. Dolby Atmos® brings a new level of surround sound in the ideal environment made by Pioneer’s MCACC Pro auto-room calibration, while the objectbased DTS:X™ format will also be available with firmware update. Other highlights include video scaler with Super Resolution, Ultra HD Pass-through with HDCP 2.2, and 3D Space Frame Construction.

Amplification
›› Channels: 9
›› Amplification Type: Class D (Direct Energy HD)
›› 810 W Multi ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)
›› 250 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
›› 210 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)

Construction Design
›› Advanced Direct Construction
›› Rigid Trans-Stabilizer
›› Insulated Dual Chassis
›› 3D Space Frame Construction
›› Anti-Standing Wave Insulator

Audio Features
›› AIR Studios Monitor Certification
›› Dolby Atmos®/Dolby® TrueHD/Dolby Digital Plus/Dolby Surround
›› DTS:X/DTS Neural:X™ Ready*1
›› DTS-HD Master Audio/DTS-ES/DTS Neo:X|11.1
›› DSD Direct Playback via Network/USB (2.8 MHz, 5.6 MHz/2ch)
›› DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
›› SABRE32 Ultra DAC (ES9016S) for 9.2ch
›› Audio Scaler 192 kHz/32-bit Enhancer
›› MCACC Pro Room Calibration
• Full Band Phase Control
• Auto Phase Control Plus/Phase Control Plus
• Standing Wave Control
• 3D Time Axis Measurement
• Subwoofer EQ (4 Band)
• Bass Management System for Dolby Atmos Enabled
Speakers
›› Sound Enhancements
• PQLS Bit-stream/Multi-Surround/2ch
• Advanced Sound Retriever (Multi-ch)
• Auto Sound Retriever/Auto Sound Retriever for ARC
• Auto Level Control (Multi-ch)
• Virtual Speakers (Wide/Height/Surround Back)
• Rendering Mode
›› Advanced Surround Modes
• Action, Drama, Advanced Game, Sports, Classical, Rock/Pop
• Front Stage Surround
• Sound Retriever Air, Phones Surround
• ECO Mode 1, ECO Mode 2
›› Input Volume Absorber
›› Speaker System 15 Patterns Including 7 Patterns for Dolby
Atmos

Video Features
›› Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit,
4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit)
›› Video Scaler (1080p to 4K) with Super Resolution
›› Triple HD Noise Reduction
›› Advanced Video Adjust
›› Stream Smoother/Stream Smoother Link

Home Network Features
›› Apple AirPlay Certified
›› DLNA Certified™ (1.5)
›› HTC Connect™ Certified
›› Compatible with Windows® 8.1
›› Music File Playback/Seek via Network/USB: AIFF , Apple Lossless,
WAV, FLAC, MP3, WMA, AAC, DSD
• 192 kHz/24-Bit Audio playback (AIFF , Apple Lossless, WAV,
FLAC)
• Multi-Channel (5.1ch, 5.0ch) Audio Playback (WAV*2,
FLAC*3)
›› Gapless Playback for AIFF , Apple Lossless, WAV, FL AC, AAC,
MP3, DSD
›› Spotify® Digital Music-Streaming Service Ready*4
›› Internet Radio with vTuner

Convenience Features
›› iPod Digital Transmission via Front USB Terminal
›› Android™ Audio/Video Playback with MHL™
›› Start-up Navi (Initial Setting App) Ready (iOS/Android)*5
›› AVNavigator (Wiring Navi/Interactive Operation Guide)
›› iControlAV5 Remote Control App Ready (iOS/Android)*5
›› HDMI ZONE Out (HDZONE)
›› Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
›› Built-in Bluetooth® Wireless Technology (Version: 2.1 + EDR,
Profile: A2DP/AVRCP, Codec: SBC/AAC)
›› Power Save for HDMI Standby Through
›› Learning Remote Control (Luminous)

Front Terminals
›› HDMI 1 in
›› USB 1 in for iPod/iPhone, USB drive
›› MCACC Setup MIC in
›› Phones 1 out

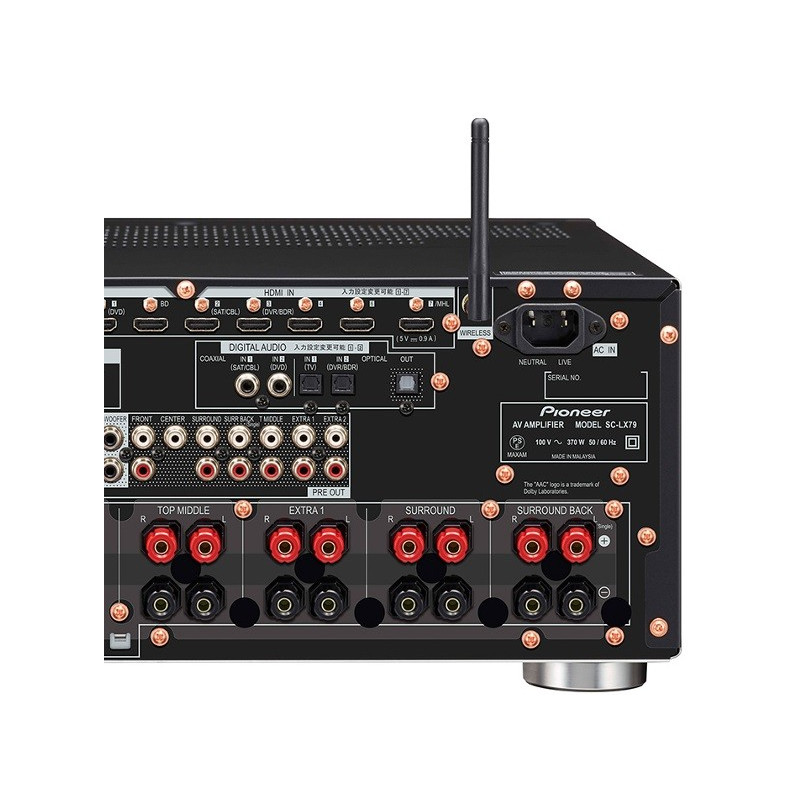

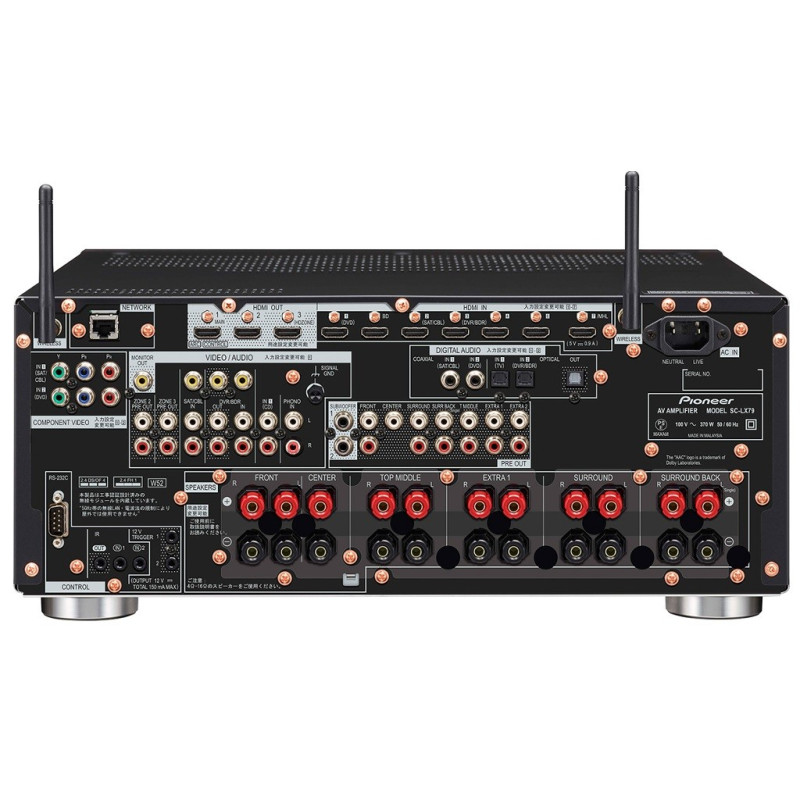

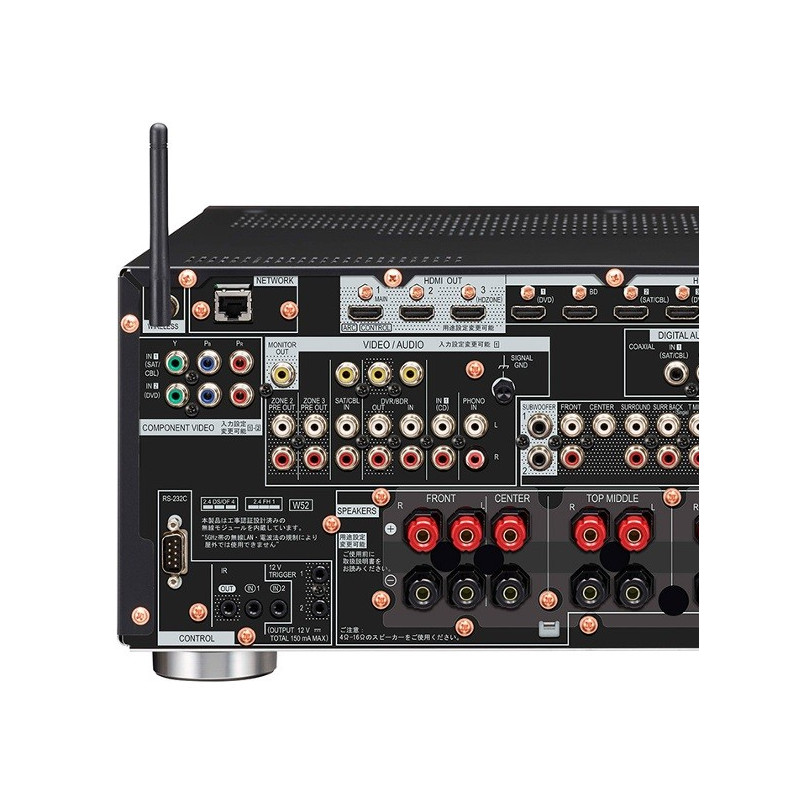

Rear Terminals
›› HDMI 7 in (7 assignable, 1 for HDMI/
MHL)
›› HDMI 3 out (2 for MAIN, 1 for MAIN/
HDZONE)
›› Ethernet 1 In
›› AV (Composite) 2 In/1 Out
›› Audio 1 In (assignable)
›› Phono (MM) 1 In
›› Digital Coaxial 2 In (assignable)
›› Digital Optical 2 In (assignable)/1 Out
›› Component Video 2 In (assignable)
›› Monitor Composite 1 Out
›› Preout 11.2 ch (13.2 ch terminals)
›› Speaker 11 ch Out
›› Independent Dual Subwoofer
›› IR 2 In/1 Out
›› 12 V Trigger x 2/RS-232C

Specifications
›› Power Requirements:
AC 220-230 V, 50/60 Hz
›› Power Consumption/Standby:
370 W/0.1 W
›› Dimensions (W x H x D):
435 x 185 x 441 mm
›› Weight: 17.7 kg

*1 Firmware update required *2 Up to 192 kHz streams via USB, up to 96 kHz streams via wired LAN, up to 48 kHz via wireless LAN *3 Up to 96 kHz streams
*4 For service availability in your country, check www.spotify.com *5 Available for free download from the App Store/the Google Play™
