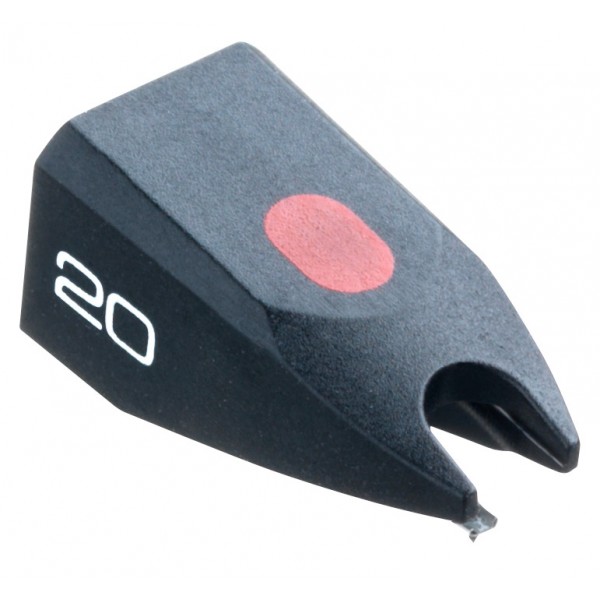

Ortofon Stylus 20 Aguja

Ortofon Stylus 20
Novedad

Aguja de recambio para Super OM20, OM20, OMP20, OMB20, LM20, Concorde 20, LM20H, TM20U, TM20H


  • Ortofon Stylus 20

    Aguja de recambio para Super OM20, OM20, OMP20, OMB20, LM20, Concorde 20, LM20H, TM20U, TM20H

    Frequency range - 20-27.000 Hz
    Frequency response - 20-20.000 Hz + 2 / - 3 dB
    Tracking ability at 315Hz at recommended tracking force *) - 80 µm
    Compliance, dynamic, lateral - 25 µm/mN
    Stylus type - Nude Elliptical
    Stylus tip radius - r/R 8/18 µm
    *) Typical valueEquivalent stylus tip mass - 0,4 mg

    Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
    Tracking force, recommended - 1.5 g (15 mN)
    Tracking angle - 20°
    Stylus colour - Black

    Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
