Moon 880M

Moon 880M - 01

Producto Agotado y Descatalogado. NO Disponible

.

Opcion

Financiación 12 meses SIN intereses - GRATUITA - Ver Condiciones

Pregunta al especialista
Envío gratuito

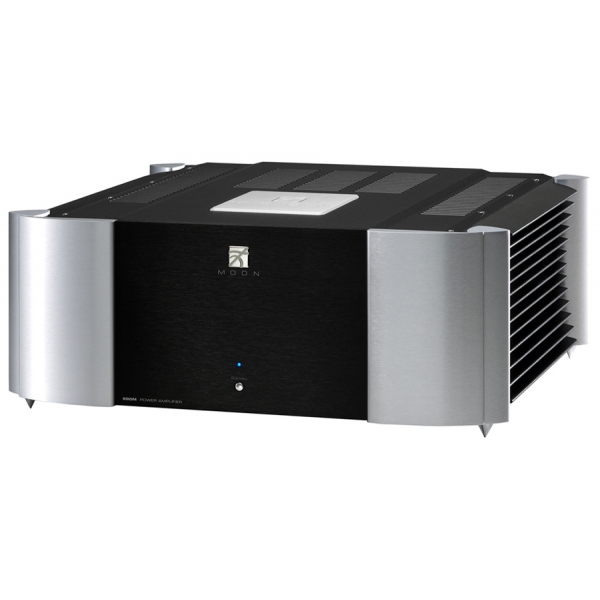

The MOON 880M Power Amplifier is a fully balanced differential mono design that effortlessly outputs 800 watts into 8Ω and 1600 watts into 4&Omega. Transparency and soundstage are as good as it gets, despite this amplifier's astonishingly high power rating. Ultimately, the 880M will mate seamlessly with any loudspeaker allowing it to reach its full sonic potential, regardless of its load.

Several recent in-house developed advancements allows the MOON 880M to perform with the accuracy and grain-free character of our lower powered amplifiers; These include (i) MOON output transistors, specifically designed for use in our amplifiers, providing tighter and more visceral bass performance, as well as unprecedented linearity thoughout the entire frequency spectrum; and (ii) our advanced "zero global feedback" circuit, commonly referred to as Lynx

Of course, both RS-232 and 12 Volt triggers for custom-install environments are included as well as a plethora of user selectable cosmetic options that are available at the time of purchase.

Significant Design Features:

· Full unsolicited RS-232 bidirectional feedback
· Lynx circuitry which is a "no overall feedback" design resulting in genuine real-time amplification,
  a more accurate musical reproduction with respect to tonality, virtually non-existent IMD and the
  elimination of common phase errors resulting from feedback
· Precision matched and fully decoupled proprietary MOON Bipolar output transistors with
  unprecedented gain linearity resulting in improved bass response and even more accurate
  sonic reproduction
· Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal
  loss, yielding an improved power transfer and lower regulation factor. The result is increased
  current speed and better dynamics
· A massive oversized power supply
· 12 Volt trigger input/output for remote operation
· "Class A" output to 10 watts for greater efficiency
· A high damping factor yielding superior musical dynamics, improved signal speed and refined
  refined timbre accuracy
· A very short capacitor-free signal path for a faster transient response
· Stable to any known speaker impedance
· 4-Layer PCB’s with pure copper tracings for a much shorter signal path; This results in
  greater sonic accuracy and a dramatically improved signal-to-noise ratio
· Ultra rigid chassis construction to minimize the effects of external vibrations
· Accurate matching of the very finest quality electronic components in a symmetrical circuit design
· Designed to be powered up at all times for optimal performance
· Low operating temperature for a longer than normal life expectancy.
