Lector CDs Moon 360Dx


descatalogado y agotado. No disponible

Envío gratuito

Breathe new life into your digital music files & discs

The MOON 360D Disc Player, companion source component for the 340i Integrated Amplifier, embodies many of the revolutionary technologies found in our highly acclaimed MOON disc players. The 360D uses state-of-the-art digital and analog circuitry to produce astonishing sonic performance with no equal in its class.
With features including a digital input for use with a PC, music server or stand-alone transport, optional balanced analog outputs, a fully customized CD transport mechanism, numerous interfaces for external control and a luxurious build quality, the MOON CD3.3 will provide for many years of listening pleasure and hassle-free use. Lector CD. Chasis metalico reforzado. Mando a distancia. Salida digital coaxial. Entrada digital coaxial. Transporte CD con amortiguación especial.

Significant Design Features:

· Proprietary CD drive system with in-house developed hardware & software
· CD drive system mounted on our revolutionary M-Quattro gel-based 4-point floating
suspension for vibration damping, allowing ambient & spatial cues in your recordings
to come to life like never before
· RS-232 port for i) full unsolicited bidirectional feedback in custom installation setups
and ii) firmware updates
· IR input for external control
· 10 stages of DC voltage regulation
· Internal upsampling with 24-bit/1.411MHz processing
· BurrBrown PCM1798 high-resolution 24-bit/192kHz Digital-to-Analog Converter and
8x oversampling digital filter
· Very precise 25PPM digital clocking system
· Digital Audio Signal Processing using M-AJiC (MOON Asynchronous Jitter Control)
· Advanced analog signal path using a DC servo circuit and proprietary 6dB/octave
analog filter
· SimLink controller port allows for 2-way communications between other compatible
MOON components

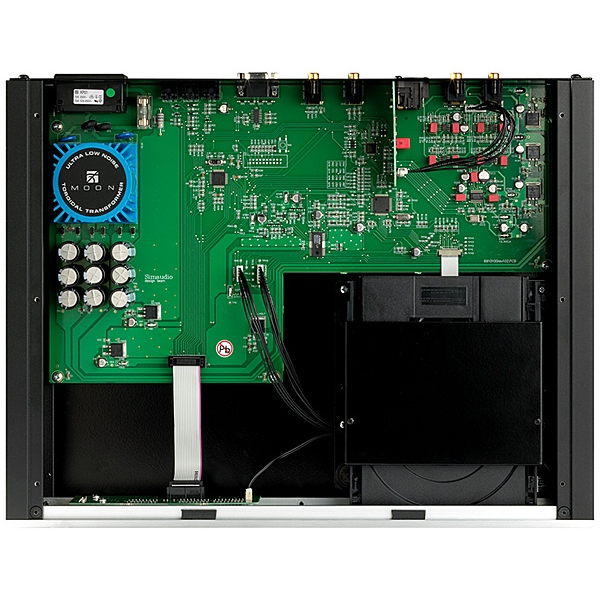

· All digital and analog audio circuitry mounted on a single circuit board, each with their
own respective ground plane, to minimize signal path lengths and eliminate any
potential for interference and signal degradation
· PCB w/ pure copper tracings & gold plating that yields low impedance characteristics
· A symmetrical circuit design
· Designed to be powered up at all times for optimal performance.

Configuration Single-ended
Transport Mechanism Proprietary Design


Front Panel
Controls Stand by · Display · Time · Input · Repeat · Program · Random ·
Play · Pause · Stop · Previous Track · Next Track · Open / Close
Front Panel
Display Track number · Time - elapsed or remaining (track / entire disc)
Front Panel
LED Indicators Programming · Repeat (disc and track) · Random


DAC / Digital Filter BurrBrown PCM1798
Frequency Response full range / audible 2Hz - 72kHz +0/-3dB / 20Hz - 20kHz +0/-0.2dB
THD @ 1kHz, 0dBFS (A-weighted) < 0.001 %
IMD < 0.004 %
Dynamic Range > 116dB
Signal-to-noise ratio > 115dB @ full output
Slew Rate 50V/µs
Channel Separation > 115dB
Low Level Linearity >±1.0dB to below 120dBFS
Intrinsic Jitter < 25 picoseconds RMS
Single-ended Analog Outputs 1 pair RCA
Optional Balanced Analog Outputs 1 pair XLR
Max. Analog Output @ 0dBFS - RCA 2.0 Volts @ 100 Ω
Max. Analog Output @ 0dBFS - XLR 4.0 Volts @ 50 Ω
Digital Input S/PDIF (RCA)
Digital Input Impedance S/PDIF 75 Ω @ 0.5 Volts
Digital Output S/PDIF (RCA)
Digital Output Impedance S/PDIF 75 Ω @ 0.5 Volts


SimLink Port 1 input + 1 output each on 1/8" mini-jack
RS-232 Port 9-pin female DB connector
IR input 1/8" mini-jack

Available Faceplate Finishes Black and Silver
Remote Control Full Function
Power Consumption @ idle 15 Watts
AC Power Requirements 120V / 60Hz 240V / 50Hz
Fuse Replacement - 120V 0.2A short slow blow
Fuse Replacement - 230V 0.1A short slow blow
Warranty (USA & Canada) 3 yrs - transport / 10 yrs - electronics
Shipping weight 18 lbs / 8 kgs
Dimensions (W x H x D) 16.88 x 3.50 x 13.07 in. (43 x 8.9 x 33.2 cm.)
