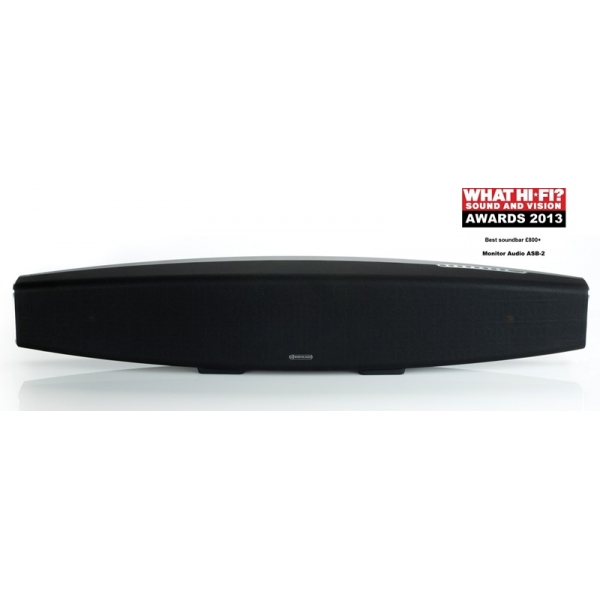

Barra de sonido Monitor Audio ASB-2

Barra de sonido totalmente activa. 3 entradas HDMI, HDMI 1080p/3D, On-Screen Display, entradas digitales ópticas y coaxiales digitales S / PDIF, entrada analógica estéreo, AirPlay ® Airstream directo / DLNA / UPnP. Potencia total de 160 watts. Altavoces de bajos 2 x 5.5", Medios 2 x 4” C-CAM ®, Altos 2 x 1” Tweeter C-CAM. Software de audio 3D, Salida de subwoofer RCA LFE. Control remoto IR.

Producto Agotado y Descatalogado. No disponible

Monitor Audio has conceived the ASB-2 as the ultimate audio hub for the home. It can operate as a high quality soundbar beneath a TV monitor from rack or wall positions, but offers so much more than the conventional amalgam of left, centre, right speakers. Apple AirPlay®, DLNA® and UPnP enabled, the ASB-2 will deliver uncompressed music from files stored on PC or Mac, iPad, iPhone or iPod Touch, Android or Windows phone, or streamed from Internet services. In addition to iTunes and DNLA compatible Apps, friends can connect and play directly to the ASB-2 without network access via Airplay Direct.



Connect a plethora of sound sources to the ASB-2 via three HDMI inputs and use the HDMI output for 1080p/3D video pass through and OSD. HDMI 1.4’s Audio Return Channel (ARC) allows for the two way transfer of information between the ASB-2 and a compatible device, creating an additional input from the HDMI output. Digital S/PDIF optical and coaxial inputs add further flexibility, together with stereo analogue RCAs for plugging-in legacy radios and CD players. A single RCA LFE output allows for system expansion with an external sub-woofer - crossover filtering is automatic. Network setup and upgrades are via USB or Wi-Fi.



Select input, track, volume, mute, menu, play and standby from the ASB-2’s compact handset, or access this functionality from home control screens via hex codes for each remote feature, which can be programmed into a whole-house system by your custom installer.



ASB-2 owners can download the latest firmware here.



Fully active, high performance soundbar system 5 discrete power amplifier stages - fully digital amp technology (class D) 160 watts total power delivery  Wireless Airplay/ DLNA / UPnP music streaming Proprietary 3D spatial effects, consistent in quality irrespective of environment  Digital coaxial input (S/PDIF)  Digital optical input  (Toslink)  3 x HDMI input Analogue stereo RCA inputs, 3.5mm Jack (auto-sensing between each input, via analogue switch)  RCA LFE sub-woofer output (auto sensing changes filter/crossover settings) USB port for service, FW update and Airplay network set up HDMI processing with HD 1080P and 3D pass through On-screen set up (OSD) – for all advanced audio features access TV remote will control volume via HDMI Local controls: volume up/down, power on/standby/sleep (single button scroll), HDMI (single button scrolling 1-3), digital (single button S/PDIF, Toslink - auto-sense), analogue (single button scrolling - AUX1, AUX2. auto-sense), connect/setup button, Airplay button (toggle on/off), mute (toggle on/off), 3D audio (on/off) Designed to fit Sanus™ TV mounting systems Optional sturdy wall bracket with cable hole access and template installation Silicon rubber stand included for secure cabinet top placement Dimensions: 100.5cm wide x 16.7cm deep x 18cm high (including grille, excluding rubber base) - See more at: http://www.monitoraudio.co.uk/products/asb-2-range/asb-2/#sthash.WhKpIg71.dpuf



ItemValue Inputs: 3 x HDMI inputs

Digital coaxial input (S/PDIF)

Digital optical input (Toslink)

Analogue stereo RCA inputs, 3.5mm Jack

(auto-sensing between each input, via analogue switch)  Outputs:  HDMI output (supporting ARC)

RCA LFE sub-woofer output (auto sensing changes filter/crossover settings) Frequency Range: 40Hz - 20kHz Drive unit complement: 2 x 51/2” (140mm) C-CAM subwoofers

2 x 4” (100mm) C-CAM midrange drivers

2 x 1” (25mm) Gold Dome C-CAM tweeters Decodes:   Stereo

5.1 Linear PCM

7.1 Linear PCM Amplifier Power Output: 160W Connectivity: Wireless Airplay/ DLNA / UPnP music streaming Features:     Proprietary 3D spatial effects, consistent in quality irrespective of environment

USB port for service, FW update and Airplay network set up

HDMI processing with HD 1080P and 3D pass through

On-screen set up (OSD) – for all advanced audio features access

TV remote will control volume via HDMI Local Controls:    Volume up/down, power on/standby/sleep (single button scroll),

HDMI (single button scrolling 1-3), digital (single button S/PDIF, Toslink - auto-sense),

analogue (single button scrolling - AUX1, AUX2. auto-sense), connect/setup button,

Airplay button (toggle on/off), mute (toggle on/off), 3D audio (on/off) Applications:   Freestanding (placed on Silicon rubber support stand - Included)



Dimensions inc grille, excluding rubber base(H x W x D) 180 x 1005 x 167mm

Weight   (11.52Kg)
