Altavoces Home Cinema Monitor Audio Bronze 5AV

Conjunto de altavoces de Cine en Casa Monitor Audio de la gama Bronze BX. Equipo de cine en casa 5.0 formado por columnas de suelo, altavoz central y altavoces traseros dipolares. Disponible en varios colores: Negro, Nogal, Rosemah o Roble Claro



Como altavoces principales encontramos el modelo MA Bronze BX5

Como altavoces traseros encontramos el modelo MA Bronze BXFX

El central es el modelo MA Bronze BX Centre LCR



Para más información hacer click en las fichas de producto en color azul



Altavoces disponibles en color Nogal, Rosemah, Negro y Roble Natural. También puede hacer la combinación de colores que quiera, por ejemplo: altavoces frontales y central en color Nogal y traseros en color Negro

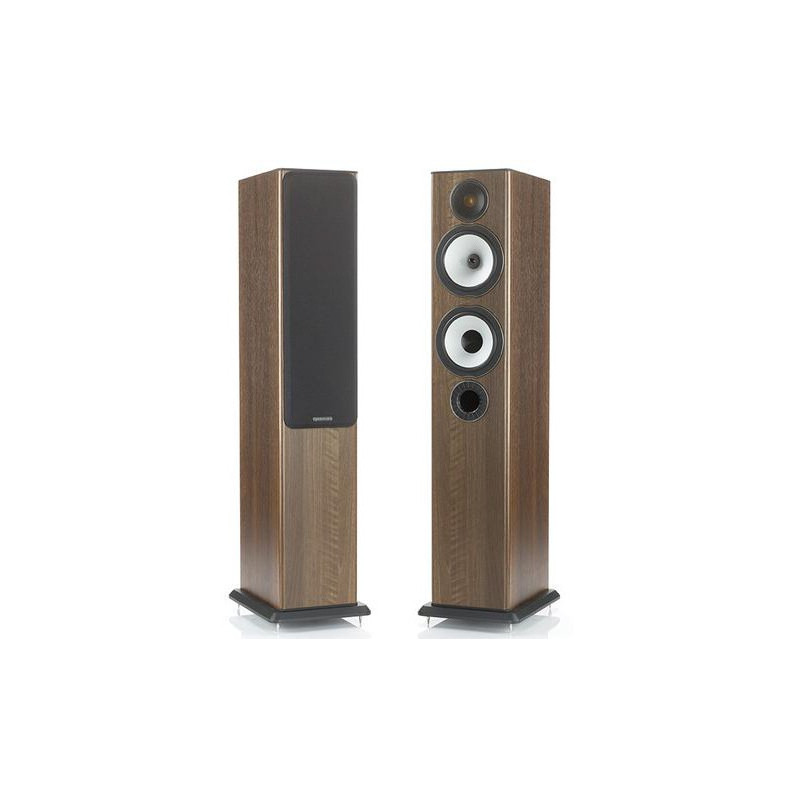

INFORMACION ALTAVOCES MONITOR AUDIO BX5

The slender BX5 represents a careful re-tuning of the acclaimed BR5 floorstanding model, adding further bandwidth and resolution to a recognised class act. Its sophisticated 2 1/2-way system of twin 140mm (5 1/2") C-CAM® drivers and 25mm (1") C-CAM® tweeter is perfected through a series of internal chambers providing the optimum operating environment for each driver and lending further rigidity to the cabinet. For such a modestly priced speaker, the BX5 is exceedingly coherent, having the transparency to expose the texture of complex musical passages and the control to communicate the natural dynamics of every performance. Astride the driver-matched BX Centre in a multichannel system, the BX5 will deliver a captivating blend of stratospheric highs, percussive mid-band and gripping bass extension for mesmerising three-dimensional AV fidelity.

•New C-CAM® tweeter has greater sensitivity and a wider bandwidth beyond 30kHz.
•New C-CAM® bass and mid-range drivers refined by FEA analysis.
•Single bolt-through drivers. A design feature which means the driver is not fixed to the front baffle and cannot transmit vibrations and therefore colouration to the cabinet.
•Improved cabinet rigidity and stability.
•HiVe®II port technology to speed the transit of air from the cabinet, resulting in more dynamic bass.
•High-quality terminal panels blend easy access with high-end functionality.
•Choice of four high quality vinyl wood finishes.

Frequency Response +/- 3dB: 36Hz - 30kHz
Sensitivity (1W@1m): 90 dB
Nominal Impedance: 8 ohms
Power Handling (RMS): 120 W
Recommended Amplifier Requirements (RMS): 30 - 120 W
Cabinet Design: Dual chamber bass reflex – Ported front and rear. HiVe®II port technology
Drive Unit Complement: 1 x 140mm (5 1/2") C-CAM® bass.
1 x 140mm (5 1/2") C-CAM® bass mid-range driver.
1 x 25 mm (1") gold dome C-CAM® tweeter.

Crossover Frequency: LF: -6dB @ 400Hz
MF/HF: 3.2Hz

External Dimensions:
(H x W x D mm) 850 x 166 x 248 mm
(868 x 215 x 282 - inc Plinth)

External Dimensions:
(H x W x D inches) 33 7/16 x 6 9/16 x 9 3/4 inches
Weight (Individual): 12 Kg (26.4 lbs)

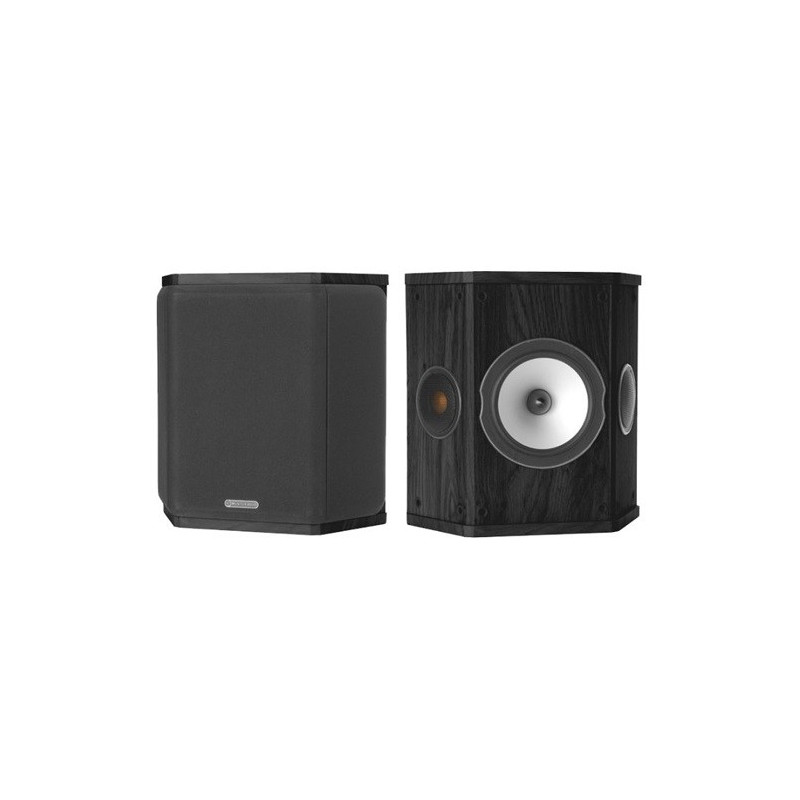

INFORMACION ALTAVOCES TRASEROS BX FX

The versatile BX-FX dual-mode surround speaker adds the facility to switch dispersion for side or rear channel use, allowing the BX-FX to optimise five or seven channel systems. Utilising a single 140mm (5 1/2") C-CAM® bass/mid-range driver flanked by two 25mm (1") C-CAM® tweeters on angled baffles, the super-compact BX-FX is easy to position for amazing surround effects and is available in the BX range of finishes for a closer décor blend.

•Acoustically matched with all other BX loudspeakers for excellent surround sound imaging and consistent timbre.
•Switchable dual-mode design for direct or ambient sound.
•New C-CAM® tweeter has greater sensitivity and a wider bandwidth beyond 30kHz.
•New C-CAM® bass and mid-range drivers refined by FEA analysis.
•Single bolt-through drivers. A design feature which means the driver is not fixed to the front baffle and cannot transmit vibrations and therefore colouration to the cabinet.
•Improved cabinet rigidity and stability.
•High-quality terminal panels blend easy access with high-end functionality.
•Choice of four high quality vinyl wood finishes.

Frequency Response +/- 3dB: 65Hz - 30kHz
Sensitivity (1W@1m): 88 dB
Nominal Impedance:
8 ohms

Power Handling (RMS):
80 W

Recommended Amplifier Requirements (RMS):
25 - 80 W

Cabinet Design: Sealed Cabinet
Drive Unit Complement: 1 x 140mm (5 1/2") C-CAM® bass mid-range driver.
2 x 25 mm (1") gold dome C-CAM® tweeter

Crossover Frequency: 2.2 kHz

External Dimensions:
(H x W x D mm) 287 x 276 x 105 mm
(118 deep inc grille & bracket)

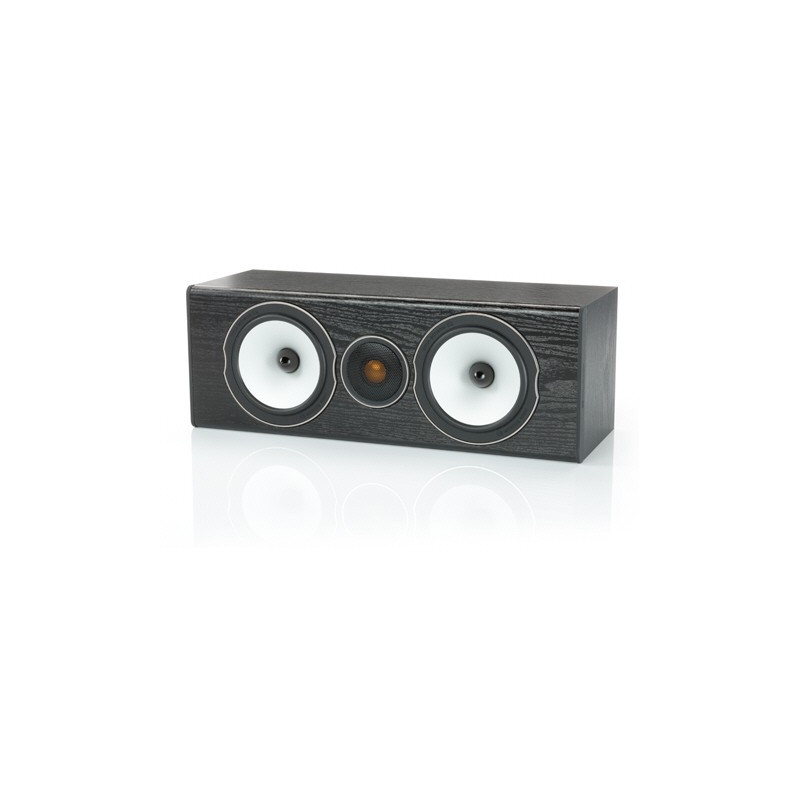

INFORMACION CENTRAL MONITOR AUDIO BX CENTRE

For the BX Centre we've demolished the limitations of entry-level design by creating a speaker that reproduces voice with unfailing detail and accuracy. Its system of twin 140mm (5 1/2") C-CAM® drivers and 25mm (1") C-CAM® tweeter complements the driver architecture of other BX series speakers, to create a wide and detailed front sound-stage, characterised by pin-point imaging.

•Versatile 2-way loudspeaker perfect for on-wall applications, stereo or surround.
•Dual 5 1/2" C-CAM® drivers and single 1" C-CAM® tweeter are pitched perfectly for accurate dialogue.
•Acoustically matched with all other BX loudspeakers for precise surround sound imaging and consistent timbre front to back.
•Single bolt-through drivers. A design feature which means the driver is not fixed to the front baffle and cannot transmit vibrations and therefore colouration to the cabinet.
•Improved cabinet rigidity and stability.
•HiVe®II port technology to speed the transit of air from the cabinet, resulting in more dynamic bass.
•High-quality terminal panels blend easy access with high-end functionality.
•Choice of four high quality vinyl wood finishes.

Frequency Response +/- 3dB: 60Hz - 30kHz
Sensitivity (1W@1m): 90 dB
Nominal Impedance:
8 ohms

Power Handling (RMS):
120 W

Recommended Amplifier Requirements (RMS):
20 - 120 W

Cabinet Design: Sealed Cabinet
Drive Unit Complement: 2 x 140mm (5 1/2") C-CAM® bass mid-range driver.
1 x 25 mm (1") gold dome C-CAM® tweeter
Crossover frequency: 3.2 kHz

External Dimensions:
(H x W x D) 166 x 460 x 165 mm
Weight (Individual): 6.18 Kg (13.6 lb)
