Meridian Explorer + WireWorld

DAC Meridian Explorer 1 conversor analógico digital
This product is MQA-ready.

SALIDAS
3.5mm analogue line out, fixed 2v RMS.
3.5mm headphone jack with variable-level output, impedance 0.47Ω.

CONSTRUCCION
Extruded Aluminium shell with moulded plastic endcaps and rubber foot.

ALIMENTACION
USB, nominal 5V at <500mA.

PROCESADOR
Dual Tile XMOS DSP with 16 cores and 1000 MIPS

INDICADORES DE ESTADO
Dual Tile XMOS DSP with 16 cores and 1000 MIPS

IMPLEMENTACION/CONFIGURACION
USB audio class compliant 2.0 HS 480Mb/s bandwidth.
Asynchronous: device is the clock source for high quality.
Firmware upgrade is via USB.
Windows drivers provided, no drivers required for Macintosh OS X or Linux.
Analogue volume control for headphone output, controlled from PC, control law modified to match connected OS.

REQUERIMIENTOS DEL ORDENADOR
Macintosh OS X 10.6.4 (Snow Leopard) or later.
Windows XP SP3, Windows 7 SP1, Windows 8 or later
Linux kernel 2.6.37 or later and ALSA version 1.0.32 or greater
Allowing you to experience the full, intricate detail of a live performance for the first time in the history of recorded music.

MEDIDAS Y PESO
102 x 32 x 18mm
50 GRAMOS

Hear More and Feel More

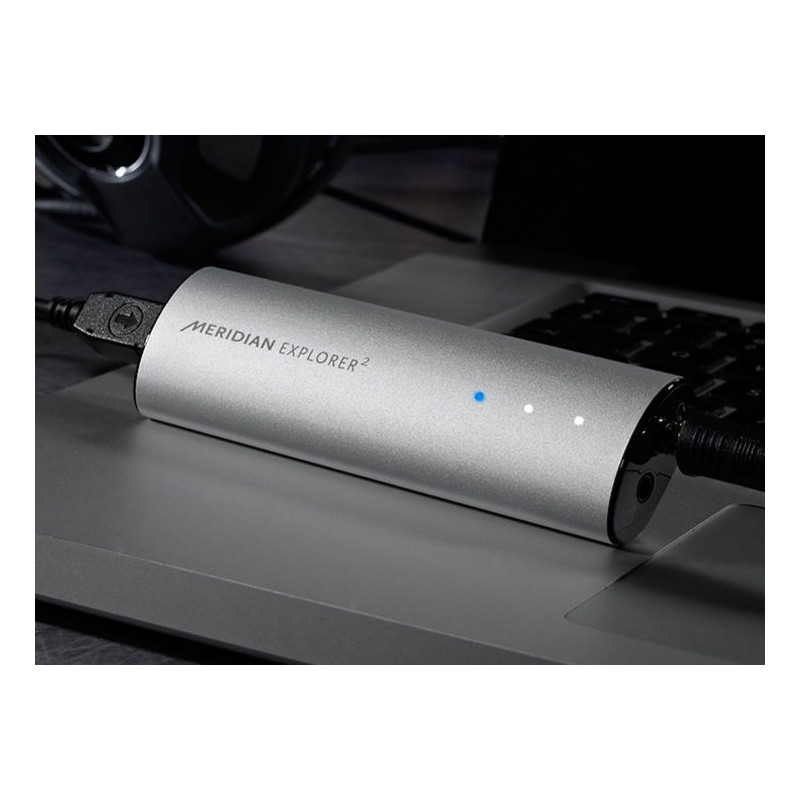

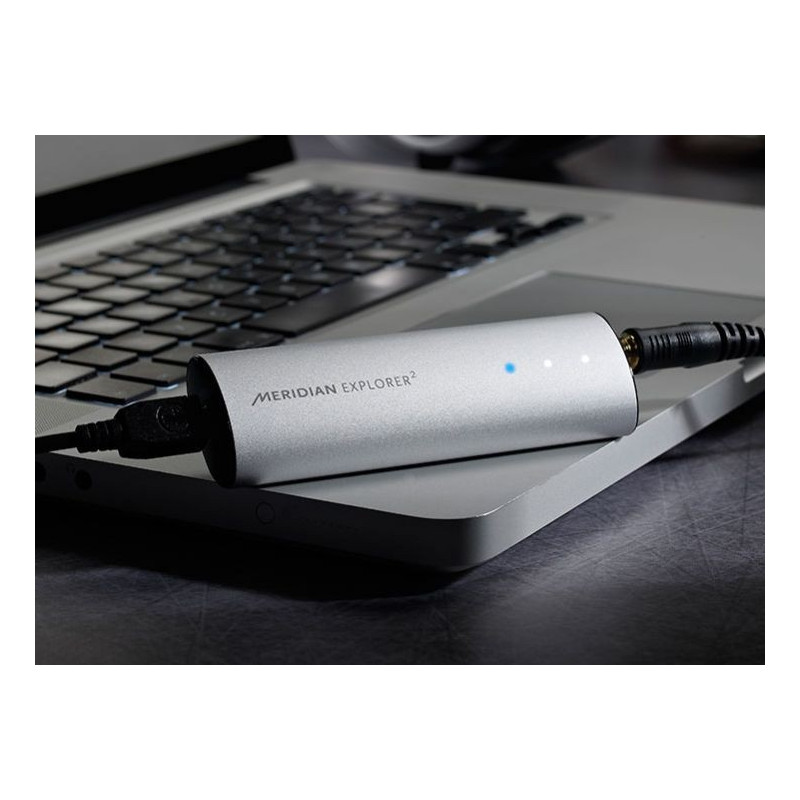

Meridian’s new Explorer² is the successor to the popular and widely acclaimed Explorer pocket USB DAC. Featuring a dramatically increased complement of DSP, Exploreris able to incorporate the full suite of Meridian’s audio enhancement technologies to provide a more realistic, natural sound than ever before.

The Meridian Experience in your hand

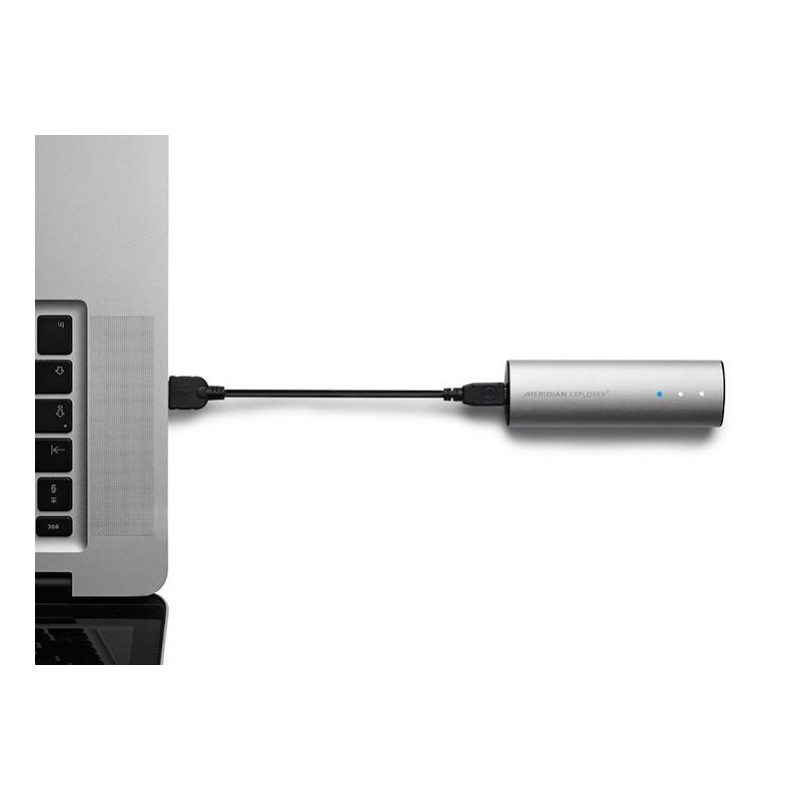

Explorer replaces a computer’s audio outputs with a USB-powered DAC (Digital to Analogue Converter) featuring over 30 years of Meridian’s digital expertise in high-quality audio circuitry. Explorer² includes digital clocking derived from Meridian’s award-winning Reference Series components, for precise timing of digital signals.

Meridian has paid as much attention to the analogue circuitry as the digital. Explorer² features a pure analog volume control with a powerful headphone amplifier and a line output. This provides sophisticated volume control with an extended range of 100dB – ideal for sensitive headphones. Whatever you listen to, Explorer² makes it sound its best.
