Marting Logan Vignette
Producto Agotado y Descatalogado. NO Disponible

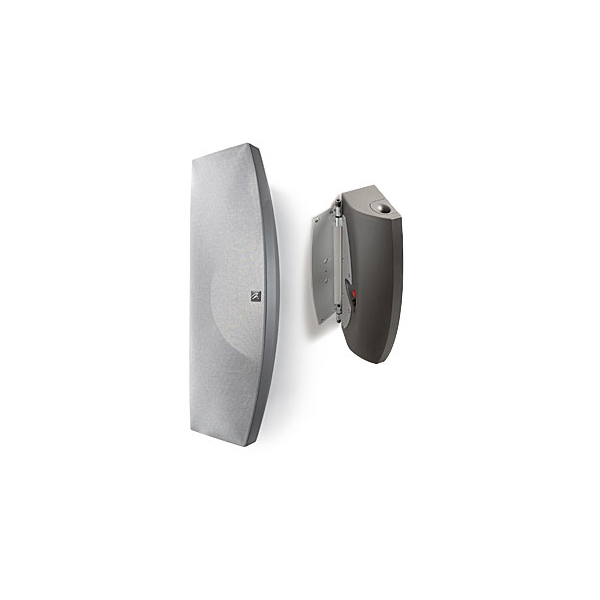

Engineered throughout to our highest standard, Vignette delivers impact and performance unprecedented for a speaker of such light weight and compact dimensions. Advanced Thin Film drivers, long-excursion low-mass woofers, and sophisticated crossover combine to produce sound with a lifelike clarity and openness approaching that of our electrostatic designs. Vignette is also very adaptable, working equally well whether mounted horizontally or vertically with the included wall bracket.
78–20,000 Hz ±3dB
High Frequency Transducer
1.5" × 2.25" (3.8 × 5.7 cm) ATF™ Transducer
Low Frequency Transducer
Two 4" (10.2cm) magnetically shielded high rigidity aluminum cones with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex
89 dB/2.83 volts/meter
6 Ohms nominal. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20‒250 watts per channel
Air core coils, metal film and low dissipation electrolytic capacitors
Custom 5-way binding posts
14 lbs. (6.4 kg)
Dimensions (without wall bracket)
7.19" × 19.5" × 4.5"
(18.3cm × 49.5cm × 12.54cm)
Dimensions (with wall bracket flat agains speaker)
7.19" × 19.5" × 5.26"
(18.3cm × 49.5cm × 14.45cm)
