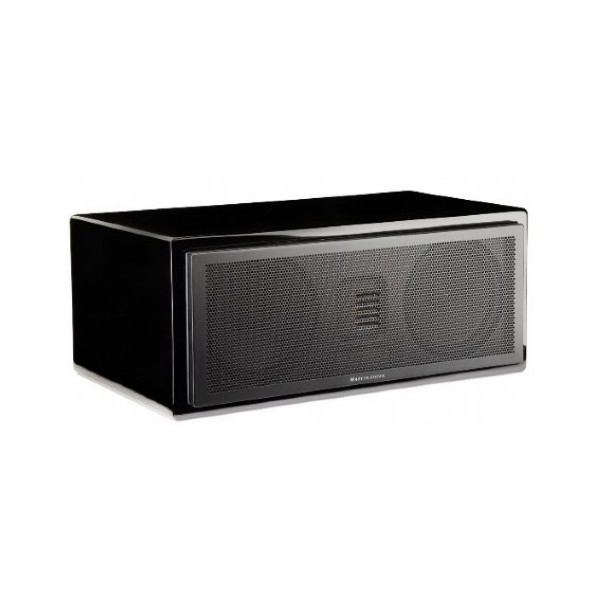

Martin Logan Motion 30

Powerful compact center channel speaker with a Folded Motion™ tweeter, high-gloss piano-black finish subtle angled top. Voice-matched to MartinLogan ESL speakers.

Inspired by the clarity and detail of our ultra-high-end electrostatic loudspeakers, Motion 30 features an exquisite Folded Motion tweeter and powerful bass technology in a compact and affordable package. Key to Motion 30’s performance is the lightning fast response of the tweeter’s light-weight diaphragm combined with a large surface area (8-times that of a typical one-inch dome tweeter) which together achieve a smooth, refined sound with stunning dynamic range and jaw-dropping clarity.

SPECIFICATIONS
Frequency Response
65–25 000 Hz ± 3 dB
Dispersion
80° x 80°
High Frequency Driver
1” x 1.4” (2.6cm x 3.6cm) Folded Motion
Transducer with 5.25” x 1.75”
(13.3cm x 4.4cm) diaphragm
Low Frequency Transducer
Two 5.5” (14cm) aluminum cone with cast polymer
basket. Non-resonant asymmetrical chamber format.
Rigid structured dust cap to reduce cone break-up
modes.
Sensitivity
91 dB/2.83 volts/meter
Impedance
4 Ohms. Compatible with 4, 6
or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20 – 200 watts
Crossover Frequency
400 & 2,600 Hz
Cabinet
Rear Ported
Components
Custom air core coil and low DCR steel laminate
inductors. Polyester film capacitors in series and low
DF electrolytic capacitors in parallel. Overall system
thermal/current protection.
Inputs
Custom 5-way tool-less binding posts
Weight
18 lbs. (8.2 kg)
Dimensions
6.9” x 16.5” x 10.5”
(17.5cm x 42cm x 26.6cm)
Specifications are subject to change without notice
