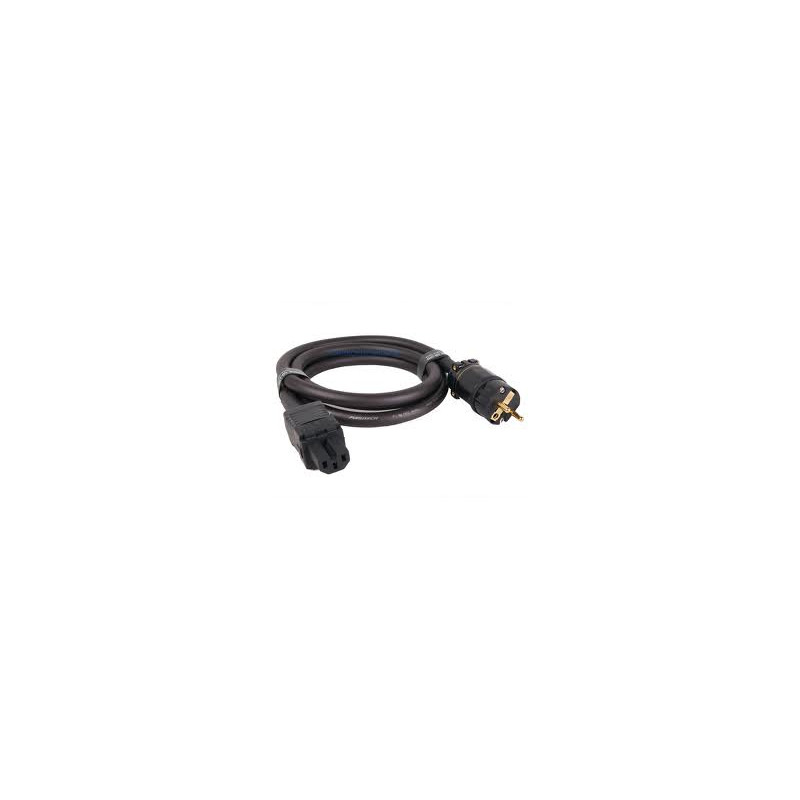

Furutech G-314AG 18E

No disponible para pedidos, descatalogado.

CABLE DE CORRIENTE DE ALTO RENDIMIENTO DE TRES HILOS. 1.8 M.
15A-125V/10A-250V
CONDUCTOR: μ-OFC α (Alpha) bañado en plata. (37 pcs/0.25 mm) x1+[μ-OFC α (Alpha)
sin baño (37 pcs/0.25 mm)] x2
AISLANTE: Polietileno (rojo, amarillo, verde) de 3.4 mm de diámetro.
CUBIERTA INTERIOR: PVC RoHS supresor de vibraciones (negro). 9.3 mm de diámetro.
MALLA: Trenzado de conductor α (Alpha) 9X24/0.12 mm.
CUBIERTA EXTERIOR: PVC RoHS supresor de vibraciones (marrón) de 12.9 mm de diámetro.
CONECTORES: FI-15E(G)IEC y FI-E11(G) schuko.
RESISTENCIA MÁXIMA: 10.0 Ω/Km.

G-314Ag-18E (Schuko) Type: 2-pole+earth Rating: 15A 1 25V A.C. Connectors: FI-15E(G) IEC and FI-15ME(G)Power A remarkably cost-effective power cord featuring 37-strand silver-plated α (Alpha) μ-OFC Conductor plus 37 strands of 0.25mm diameter α (Alpha) μ-OFC Conductor with high performance 9 by 24-strand braided α (Alpha) shield plus Furutech's advanced connectors achieving an amazing price/performance ratio. The best Furutech Power Cord bang for the buck! • Wire conductors and all metal parts are treated with Furutech’s Cryogenic/Demagnetizing Alpha Process for minimal transmission losses. • Furutech Hyper Quality High Performance fittings with 24k gold-plated non-magnetic pure copper male connectors and female phosphor bronze connectors. • Power Cable shielded with Alpha Processed stranded-wire braid for superior noise isolation. • Twin flexible PVC sheaths improve vibration isolation. • Silver plated μ–OFC &μ–OFC Conductor internal wiring uses Polyethylene (PE) insulation to reduce capacitance. • High Performance FI-15E(G) IEC Connector and FI-15ME (G) Power Connector. • α(Alpha) conductor is the fine Silver plated μ–OFC conductor & μ–OFC conductor wire strands treated with the α(Alpha) process. Specifications FConstruction and Material of Cable • 37 strands silver-plated α (Alpha) ConductorE0.25mm diameter × 1 core plus 37 strands of 0.25mm diameter μ-OFC α (Alpha) Conductor x 2 core • Insulation: Polyethylene (Red/Natural/Yellow) 3.4mm diameter • Inner Sheath: Flexible PVC (Black) 9.3mm diameter • Shield: 9 x 24 strands of 0.12mm braided α (Alpha) conductor • Sheath: Flexible PVC (Brown) approx. 12.9mm diameter Electrical Properties of Cable Test Method * Max. Conductor Resistance 10.0 Ω^km JISC3005 6 20 * Min. Insulation Resistance 1000 MΩ-km JISC3005 9.1 20 * Dielectric Strength AC. 1000 V^1 min. JISC3005 8
