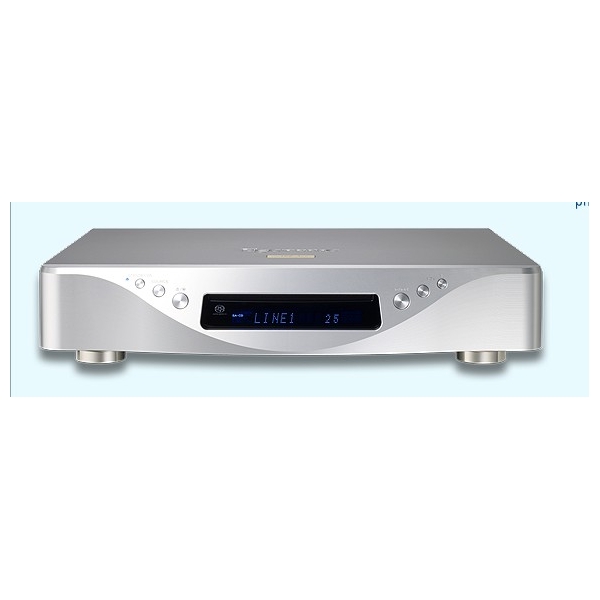

Esoteric RZ-1

Lector de SACD, CD, CD-R, CD-RW, convertidor DA 32-bit, amplificador integrado y previo de phono MM. Entradas digitales: USB, coaxial y óptica. 2x 100W a 4 ohmios. MD

Amplifier Section Lector de SACD, CD, CD-R, CD-RW, convertidor DA 32-bit, amplificador integrado 100W y previo de phono MM. - Ex Demo - 2 años garantía
Output Power 100 W + 100 W (1 kHz, 6 Ω, JEITA)
Minimum rated power output 80 W + 80 W (1 kHz, 0.1 %, 6 Ω, LPF 20 kHz) (JEITA)
Minimum impedance 4 Ω
Frequency response 15 Hz - 65 kHz (+1 dB, -3 dB, 6 Ω) (JEITA)
Total harmonic distortion 0.003 % (1 kHz, output 45 W, 6 Ω, LPF 20 kHz) (JEITA)
Signal-to-Noise Ratio (S/N) 102 dB
Input Sensitivity LINE : 46 mVrms (JEITA)
(input level for rated output at maximum volume) PHONO (MM) : 1.0 mVrms (JEITA)
Audio input
Analog input
Jacks RCA jacks (2 channels) x 2
Input impedance LINE: 100 kΩ (JEITA) PHONO: 48 kΩ (JEITA)
RIAA deviation PHONO (MM) 20 Hz to 15 kHz, ±0.5 dB
Digital input
COAXIAL jack RCA jack x 1 (0.5 Vp-p/75 Ω)
OPTICAL jack Optical digital jack x 1 (-24.0 to -14.5 dBm peak)
USB port USB type B x 1 (USB 1.1 or higher)
Input sampling frequency COAXIAL/OPTICAL : 32 kHz to 192 kHz USB : 32 kHz to 96 kHz
CD/Super Audio CD Player
Compatible format Super Audio CD, CD-DA
Compatible disc type Super Audio CD, CD, CD-R, CD-RW
Playback mode DSD native
D/A Converter
Digital filter 32 bit 8-times oversampling
General
Power supply Europe model : AC 230 V, 50 Hz
U.S.A./Canada model : AC 120 V, 60 Hz
Korea model : AC 220 V, 60 Hz
Power consumption 105 W (standby mode: 0.5 W)
External dimensions (W x H x D) 400 x 77 x 368 mm (15-3/4" x 3" x 14-1/2") (including protrusions)
Weight 9 kg (19-7/8 lb)
Operating temperature +5 ¢ªC to +35 ¢ªC
Operating humidity 5 % to 85 % (no condensation)
Storage temperature -20 ¢ªC to +55 ¢ªC
