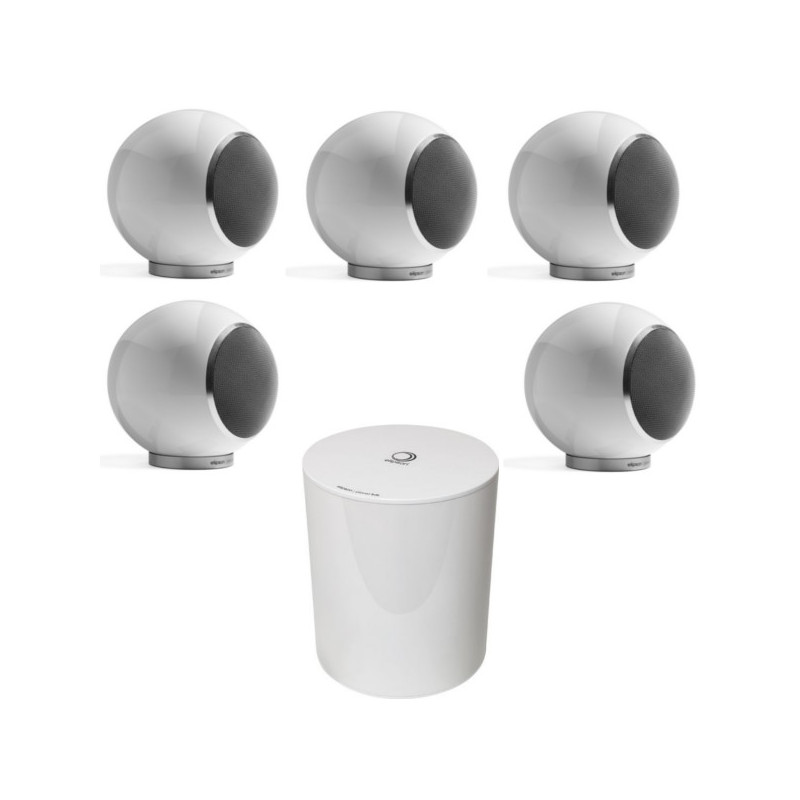

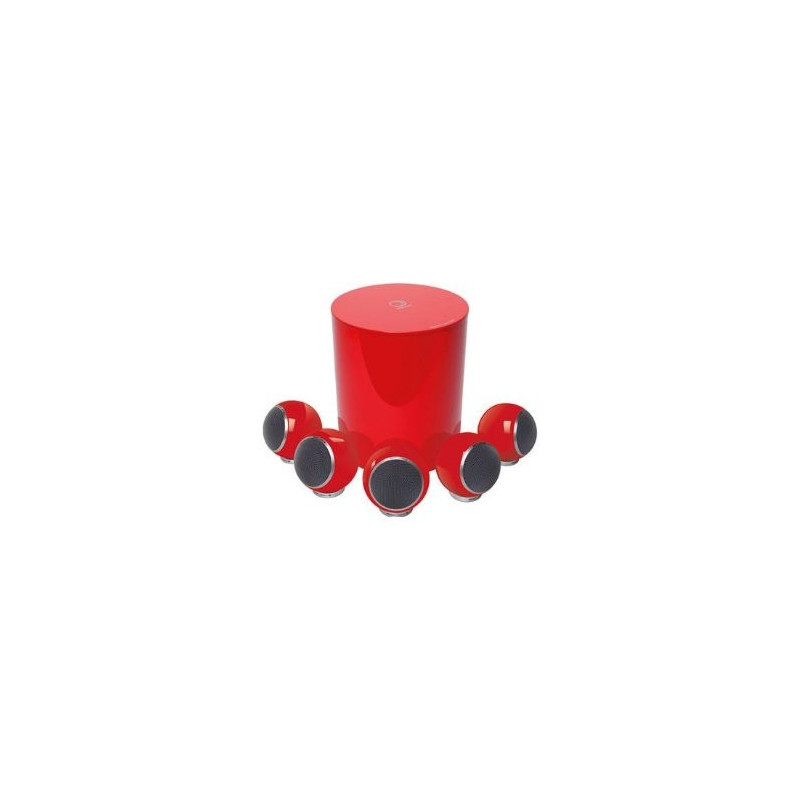

Elipson Planet M 5.1

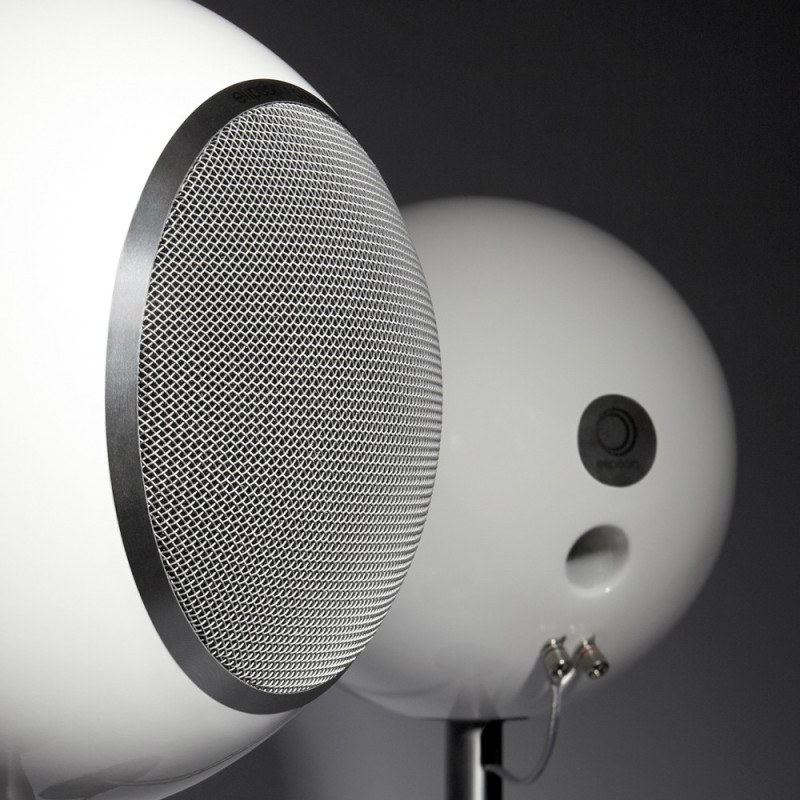

INFORMACION ALTAVOCES PLANET M,
Se incluyen 5 unidades

Altavoz compacto de singular forma Esférica, que proporciona un sonido de alta calidad con un diseño muy atractivo y Elegante. Woofer 100mm coaxial.

Tweeter de 20mm.
Amplificador recomendado 30 - 80 W
Respuesta 90 Hz - 22 kHz.
Impedancia 8 Ω.
Dimensiones Ø 15 cm.
Peso 1, 65 Kg.

Soporte de pared para Planet M
Soporte de techo para Planet M
Soporte de suelo para Planet M

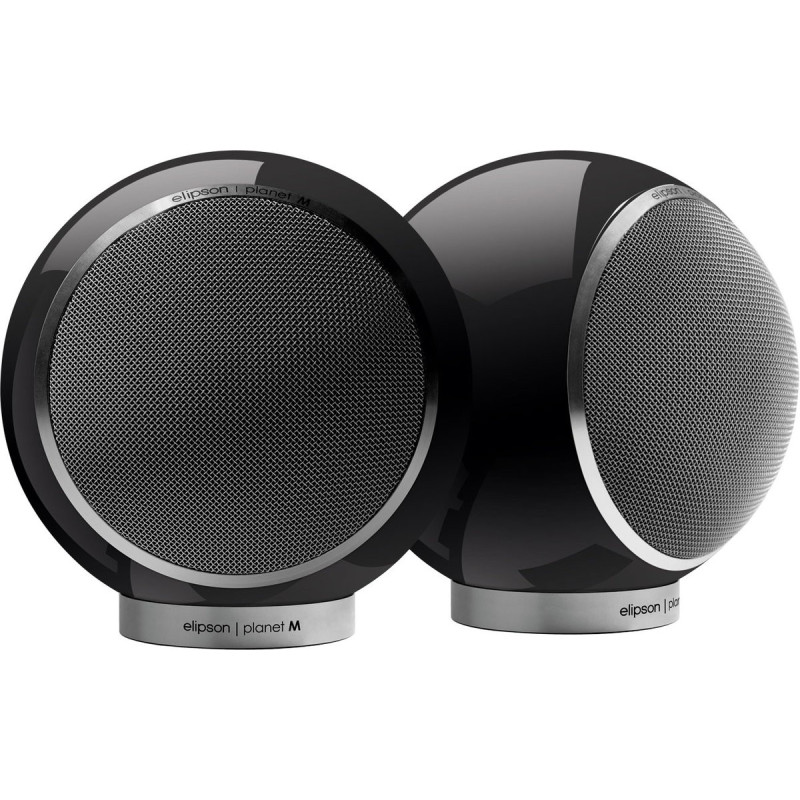

Compact, attractive, and unabashedly audiophile, Planet M illustrates all of Elipson’s audio expertise. Following in the footsteps of the iconic Planet L, this exceptional product draws on the best acoustic technologies and it has a state of the art design for uncompromising sound results. By the strength of its 2-way coaxial speaker, Planet M combines musical excellence and compact design. This is a brilliant product that will perform with elegance and boldness. Available in 3 colors (glossy finish): white, black, red.

Crossovers:
CROSSOVER #1
Frequency: 2500
Slope: 6-12

Drivers:
WOOFER
Brand: Elipson
Diameter: 10.00
Cone: paper
TWEETER
Brand: Elipson
Diameter: 2.00
Cone: silk

Features
SYSTEM: 2 ways
FREQUENCY RANGE (+/- 3DB): 90 - 22000 Hz
IMPEDANCE: 8 Ω
SENSITIVITY: 88 dB
MAX MUSIC POWER: 60 Watts
RECOMMENDED AMPLIFIER: 30-80 Watts
TERMINAL TYPE: Single wiring
TERMINAL FINISH: Silver plated
INTERNAL WIRING: 99,99% OFC
ENCLOSURE: Sealed
Dimensions
WITH GRILL AND TERMINAL (W X H X D):
5.9 x 5.9 x 5.9" / 150 x 150 x 150 mm

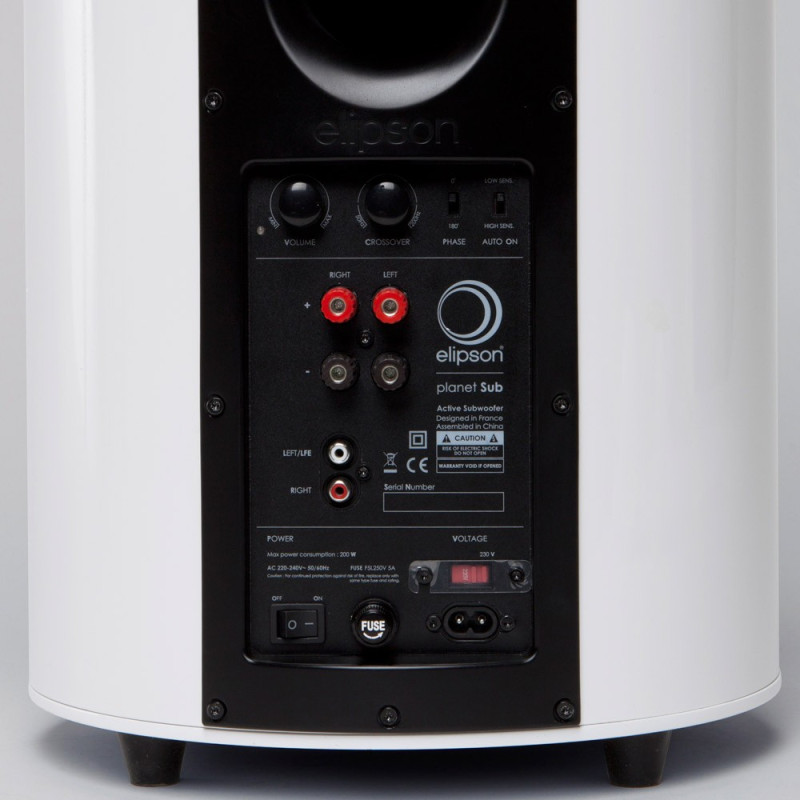

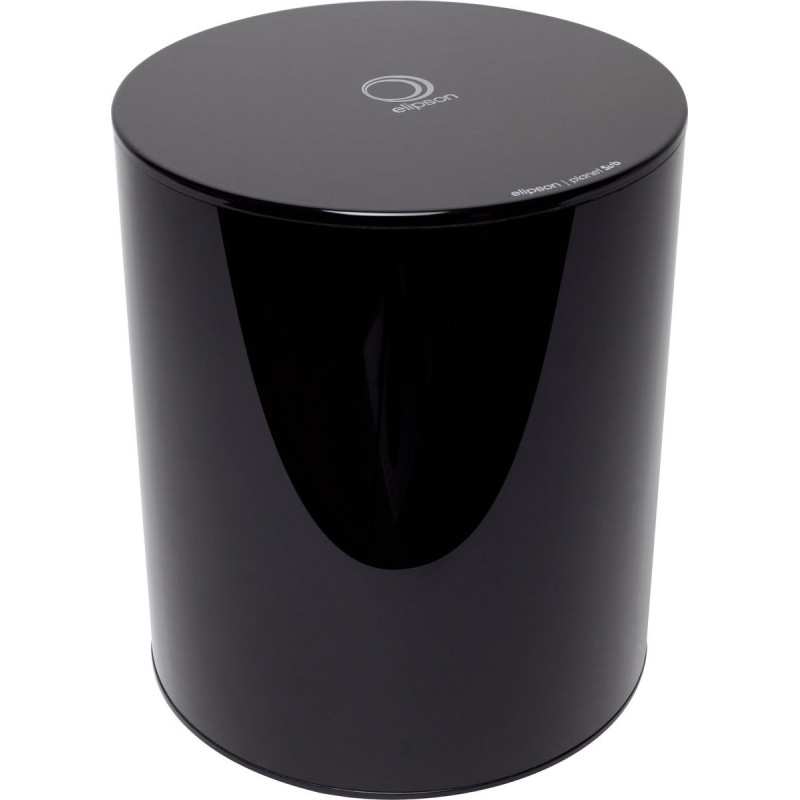

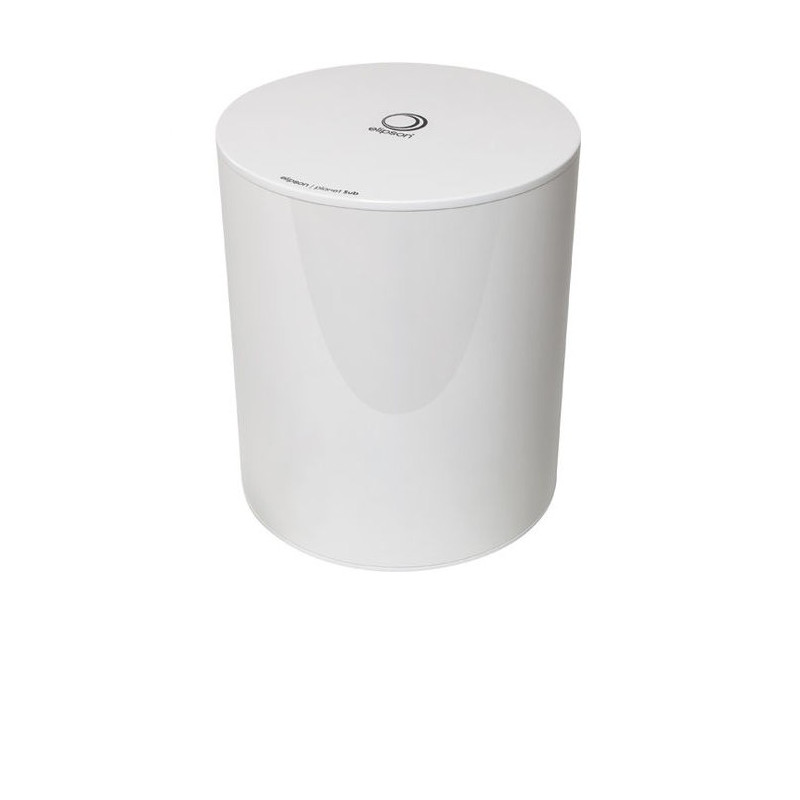

INFORMACION SUBWOOFER PLANET SUB

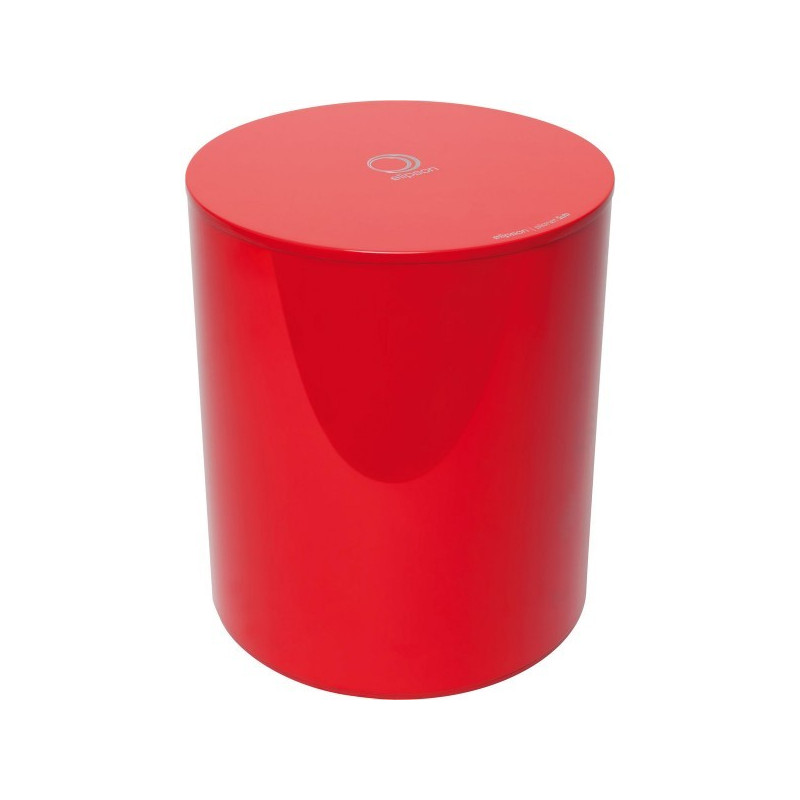

Elipson Planet Sub disponible en color Blanco, Rojo o Negro

Subwoofer Amplificado de diseño tubular, incorpora Woofer de 20 cm y Amplificador de potencia máxima de 200W
Respuesta 30 Hz - 240 Hz.
Dimensiones Ø 31,6 cm. x 39,3 cm
Peso 11,00 Kg.

The Planet Sub has the same DNA as Elipson’s Planet line: its exceptional design
and uncompromising sound fidelity bear witness to its prestigious lineage.
Integrating a 20 cm speaker alive with 200 watt amplification, this bass unit
offers musical excellence and a sense of versatility so it’s at home as part of your stereo setup and it’s just as comfortable anchoring your home-cinema configuration. Uniting elegance and performance, Planet Sub guarantees
to fit in harmoniously with your Elipson spheres.
Available in 2 colors (glossy finish).

Drivers:
WOOFER
Brand: elipson
Diameter: 20.00
Cone: paper
Magnet: ferrite

Features
SYSTEM: 1 way
FREQUENCY RANGE: 30 - 240 Hz
MAX MUSIC POWER: 200 Watts
VOLTAGE: 110-220V / 220-240VAC - 200W Watts
AMPLIFIER TYPE: D
INTEGRATED AMPLIFIER POWER: 200
TERMINAL TYPE: Single wiring
TERMINAL FINISH: Silver plated
INPUT: Line
ENCLOSURE: Bass Reflex
PHASE: 0/180
On/off automatic (standby)
Dimensions
WITH GRILL AND TERMINAL (W X H X D):
12.4 x 15.5 x 12.4" / 316 x 393 x 316 mm
