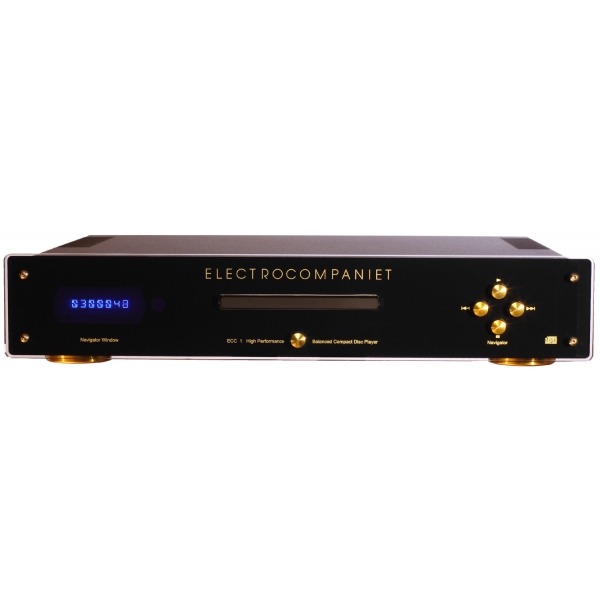

Lector CDs Electrocompaniet ECC-1

ECC-1 stereo Cd-player Modern production technology has been utilized to keep the manufacturing cost at a minimum and give a performance that will rival the best. The latest 24bit/192kHz DAC from Cirrus Logic, together with a precision fully balanced analogue output stage operating in class A, sets the basis for a detailed, delicate and dynamic sound. A damping platform based on the EMC1 UP anti-vibration system has been developed to create the best possible working conditions for the laser pick-up. The ECC 1 features both balanced and single-ended outputs, and a coaxial digital output. The analogue output filter is optimized to reduce the phase shift at higher frequencies, thereby leaving the high frequency music information intact. Technical Data Conditions No. of channels 2 Video No Output impedance 100 ohm Output level Unbalanced 2.3Vrms Output level Balanced 4.6Vrms Noise floor 20 - 20 kHz < - 130 dB Frequency deviation 20 - 20 kHz < 0.05 dB Channel separation > 110 dB THD + N 20 - 20 kHz < 0.002% IMD TBD Digital/Analog Conversion 24 bit, 192 kHz Dynamic Range 120 dB Compatible formats CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Dimensions W x D x H 483 x 385 x 75 mm Weight 9 kg Power consumption No load or signal 55 W Audio Outputs 1 x 2 ch balanced line out (XLR) 1 x 2 ch unbalanced phono Digital Outputs 75 ohm S/PDIF RCA
