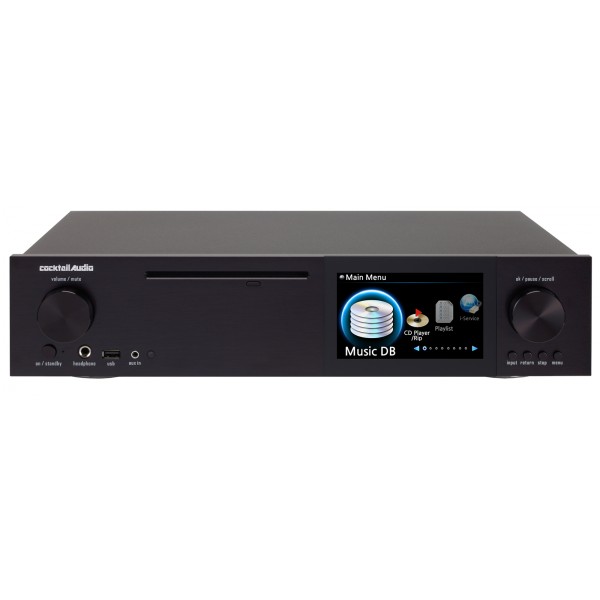

Servidor de audio Cocktail Audio X40

Cocktail Audio X40
Novedad

Producto Agotado y Descatalogado. No Disponible

.

.

Opcion

Pregunta al especialista
Envío gratuito

Cocktail Audio X40, el Todo en Uno High End con HDD de hasta 4TB. (no incluido)

• Utiliza el ship ES9018K2M Sabre32
• Reproduce DSD64 ,DSD128,DXD(24bit/352,8kHz) PCM de 32bit/384Khz y 24bit/192Khz WAV/FLAC, y amplia gama de formatos.
• Procesador XMOS 32Bit/500MIPS
• Reproductor de CD con función de copia a alta velocidad al disco duro
• Alojamiento para HDD interno de hasta 4TB - 3,5” - 2,5” y SSD 3,5”
• Sintonizador FM
• Internet Radio (Reciva) servicios como SIMFY - qobuz (depende del pais)
• Servidor Musical / Network Streamer (24bit/192Khz)
• Display 5” a color para el facil manejo de todas sus funciones
• OSD en español y multitud de idiomas.
• Fuente de alimentación sin ventilador.
• Mando a distancia, posibilidad de control por App de iOS y Android
• Puede utilizar Antena opcional para ccnexión por Wifi

• Entradas:
3,5 mm Auxiliar frontal , Ethernet , 2 USB traseros + 1 Frontal , Optica, Coaxial , RCA Analogico. RCA Phono. Antena

• Salidas:
RCA Analogico, Balanceada, Optica, Coaxial, AES/BUS, HDMI (para monitor Externo) Salida de auriculares.

• Dimensiones: Ancho 435 x Fondo  325 x Alto 98,5 mm.

Frontal Aluminio 12mm.

Disponible en color Plata o en color Negro

WEB DEL FABRICANTE

Model name CA-X40 Remarks
Host CPU & Memory Embedded 700Mhz MIPS
Main Memory (4Gbit, DDR2 800Mhz)
800Mhz)
CD Player Type Front Loading
Supported media CD, CD-DA, CD-R, CD-RW, DVD-R/RW
Display 5" TFT LCD(800x480 pixel) on the front
External big screen like TV to be connected through HDMI connector
Interface Remote Control, PC, iOS & Android devices with customized Web Interface (WUI) or various free
UPnP Tablet & Smartphone Apps
ANALOG OUT Balanced
(Pre-out)		 AES/EBU XLR, Dynamic Range : -120dB THD+N (Max 4.5Vrms, Stereo),
127dB DNR		 DAC IC :
ES9018K2M
SABRE³²
Unbalanced
(Pre-out)		 RCA L/R, Dynamic Range : -120dB THD+N (Max 2Vrms, Stereo, 127dB DNR
Headphone Out 6.35mm jack, 500mW+500mW@1Khz,
32 ohm, 0.1% THD
DIGITAL OUT Toslink x 1 Sample Rate : up to 24bit/192Khz Max 0dB,
Volume controllable
COAXIAL x 1 SPDIF 75ohm RCA, Sample Rate : up to 24bit/192Khz
AES/EBU XLR x 1 110ohm, Sample Rate : up to 24bit/192Khz
ANALOG
INPUT		 LINE IN x 1 L & R RCA at the rear, 2V rms
AUX IN x 1 3.5mm Phone Jack on the front, 800mV rms
DIGITAL INPUT Toslink x 1 Sample Rate : up to 24bit/192Khz
COAXIAL x 1 Sample Rate : up to 24bit/192Khz
PHONO IN MM Input Sensitivity 7.5mV
ANALOG INPUT LINE IN x 1 L & R RCA at the rear, 2V rms
AUX IN x 1 3.5mm Phone Jack on the front, 800mV rms
TUNER FM Radio Tuning Range (FM 87.5 - 108MHz)
FM Antenna input Impedance : 75ohm unbalance		 RDS is supported
Connectivity 3 x USB Host ports Front 1x USB Host
Rear 2x USB Host
Network Wired Ethernet (10/100Mbps) LAN
Wireless
(Optional)		 ※ 801.11b/g/n WiFi USB dongle (Optional)
HDMI OUT
(video only)		 Connecting to external big screen like TV for GUI display and photo slide show
POWER SUPPLY Audio Power Supply Toroidal Transformer, Power 75W
Standby Power Supply 5V/1A SMPS
Supported Storage Hard Disk 2.5" SATA, up to 4TB Removable storage tray (drawer) is provided.
3.5" SATA, up to 4TB
SSD 2.5" SATA, up to 4TB
Supported audio
Codec & format		 DSD64 (2.8224MHz), DSD128 (5.6448MHz), DXD (24Bit/352.8KHz), up to 32Bit/384KHz PCM signal including HD FLAC (24Bit/192KHz), HD WAV (24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, etc
Network Protocol
supported		 UPnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc
Internet Service Internet Radio Reciva Internet Radio
Online Music
Service		 Qobuz, Simfy
※ Subscription required
Supported
OSD Lang.		 English, German, French, Spanish, Italian, Polish, Czech, Dutch, Traditional Chinese, Russian,
Danish, Korean, etc (To be added by request)
Power Source AC 220V - 240V, 50/60Hz (For Europe)
※ 110V version is also available.
Mechanical Material Front 12mm thickness aluminum by CNC cutting
Knob Aluminum by CNC cutting
Chassis Metal
Dimension without foot 435mm(W) x 325mm(D) x 88mm(H)
with foot 435mm(W) x 325mm(D) x 98.5mm(H)
Certificate CE, FCC, EMI, etc
