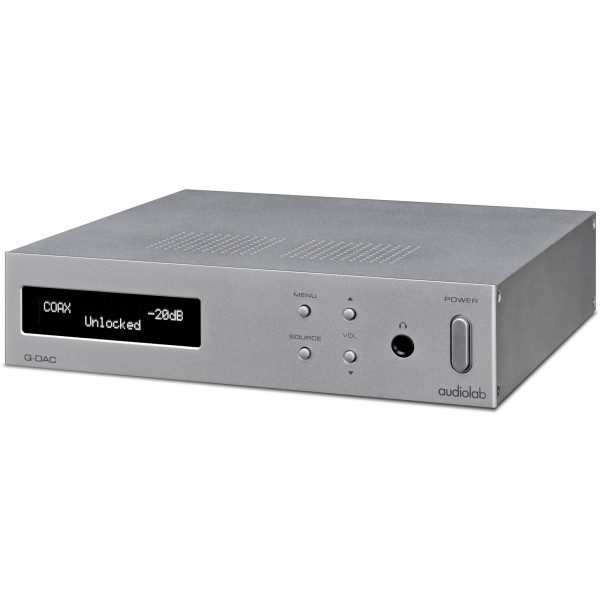

DAC Audiolab QDAC
Audiolab QDAC. DAC Convertidor digital analógico. Como el MDAC utiliza el Chip ESS Sabre 32 Bits. Entradas digitales: 1coax+1Toslink+USB.
Salidas digit. 1 coax+1Toslink. Salidas por RCA y auricular por jack 6,3mm.
Dimensiones Ancho 247 x Alto 60 x Fondo 36 mm.
Peso 3,0Kg
Audiolab QDAC disponible en color Plata o en color Negro.
En conjunto con la etapa de potencia Audiolab MPWR el DAC puede actuar como previo ya que incorpora regulación de volumen. Con estas dos piezas (DAC + Etapa) ya tenemos formado un equipo de músic a en condiciones
Get the best out of your digital music collection with Audiolab Q-DAC. Developed on Audiolab’s famous award winning M-DAC platform, Q-DAC offers the sound quality that made M-DAC the most highly regarded Digital to Analog Converter in its field, but achieves it with simpler functionality.
At the heart of Q-DAC is the extraordinary ESS Sabre DAC chip, an 8 channel 32-bit processor that excels in handing the full bit depth and ultrasonic extension of high resolution audio files with incredible precision and accuracy.
To that amazing DAC Audiolab’s engineers have added a fully asynchronous interface coupled to a minimum jitter Master Clock system that ensures freedom from the undesirable side effects of jitter.
Q-DAC also retains the digital pre-amp and headphone amp functionality marking it one of the most versatile DAC’s on the market. With Q-DAC Audiolab has added yet another industry leading DAC to its stable of digital products.
Specification
Model | Q-DAC |
General description | Digital-to-analogue converter |
DAC | ESS Sabre32 9016 chip |
Resolution | 32 bits |
Maximum Sampling Frequency | USB and coaxial: 192kHz optical:96kHz |
Digital input | 1 x coaxial, 1 x Toslink optical, 1 x USB |
Digital output | 1 x coaxial, 1x Toslink optical |
Output voltage 1kHz | 2.2 ± 0.1Vrms |
THD 1kHz 0dB 20Hz ~ 20kHz | <0.002% , |
Frequency response | 20Hz - 20kHz (± 0.2dB) |
Dynamic range A wtd 1kHz | >110dB; |
Crosstalk 1kHz | >112dB; |
Dimensions (W x H x D) | 236 x 60 x 247 (mm) |
Net weight | 3kg |
Finish | Finish |
