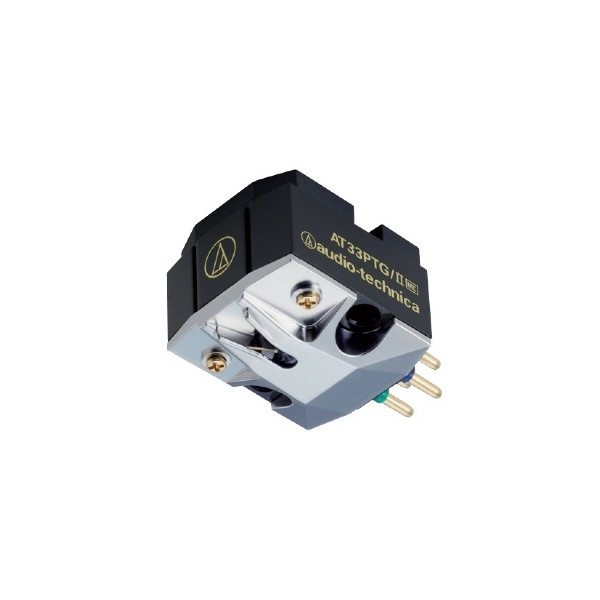

Audio Technica AT33PTG/II Capsula

AT 33PTG II
Novedad

Cápsula de bobina móvil de bajo peso, con cantilever más corto y delgado, aguja MicroLinear™, de alto rendimiento y larga vida con un mejor funcionamiento en agudos que las agujas cónicas o elípticas

Producto con envío gratuito

  • Cápsula de bobina móvil de bajo peso, con cantilever más corto y delgado, aguja MicroLinear™, de alto rendimiento y larga vida con un mejor funcionamiento en agudos que las agujas cónicas o elípticas

    dvanced nude tapered boron and weight reduction
    This model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17W to 10W. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge.

    High performance and long-life MicroLinear™ stylus
    MicroLinear™ (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.

        Specifications

        Type: Dual Moving Coil
        Frequency Response: 15 to 50,000 Hz
        Channel Separation: 30 dB (1 kHz)
        Channel Balance: 0.5 dB (1 kHz)
        Coil Impedance: 10 W (1 kHz)
        DC Resistance: 10 W
        Vertical Tracking Angle: 23 degrees
        Recommended Load Impedance: Min 100 W
        Coil Inductance: 22 mH (1 kHz)
        Static Compliance: 40 x 10 – 6 cm / dyne
        Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
        Output Voltage: 0.3 mV (at 1 kHz, 5 cm/sec)
        Stylus Shape: MicroLine™
        Cantilever: Gold-plated solid boron
        Stylus Construction: Nude square shank
        Mount: 1/2” centers
        Dimensions: 16.0 (H) x 16.6 (W) x 26.5 (L) mm
        Weight: 6.9 g
        Accessories: 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
