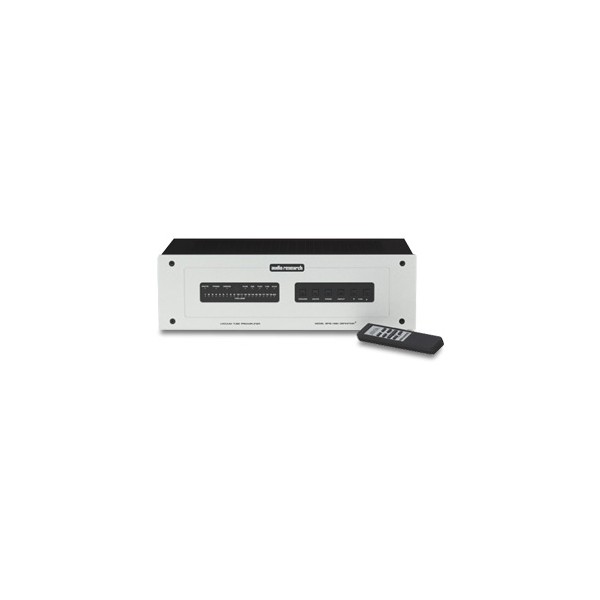

Audio Research SP16 previo

Audio Research SP16 segunda mano
Novedad

Previo estéreo a válvulas. Clase A. 5 entradas RCA. Mando a Distancia. Disponemos del embalaje y documentación originales

3.900 €
1.499 € Ahorra 2.401 €
Impuestos incluidos

Financiación 12 meses SIN intereses - GRATUITA - Ver Condiciones

Pregunta al especialista
Envío gratuito

Previo estéreo a válvulas. Clase A. 5 entradas RCA. Mando a Distancia

FREQUENCY RESPONSE:
SP16/16L Specifications:
Line: +0-1dB, 1Hz to 60kHz at rated output. -3dB points below 0.5Hz and above 100KHz.
Phono: +/-0.3dB of RIAA, 10 Hz to 20KHz
DISTORTION: Less than .007% at 2V RMS Single Ended output.
GAIN:
Main output line: 11.5dB Single Ended Processor: 0dB.
Phono: 55dB at 1 KHz.
Record output, line: 0dB. Phono: 43.5dB.
INPUT IMPEDANCE: 50K ohms line, 47K ohms Phono, (1to 6Mv High output cartridge recommended) Inputs (6): phono, DC, tuner, video, aux, processor, (Single Ended RCA connectors). Model SP16L has no phono input.
OUTPUT IMPEDANCE: 260 ohms Single Ended main; 20K ohms minimum load and 1000 pF maximum capacitance. Outputs (3): 2 main, 1 record (Single Ended RCA connectors).

OUTPUT POLARITY: Non inverting (Any input or output).
MAXIMUM INPUT
Line: 3.5 RMS Single Ended.
Phono: 25 mVRMS 1KHz, 50mVRMS 10KHz
RATED OUTPUTS: 2V RMS Single Ended into 100K load. Maximum output 15V RMS at 1% THD at 1kHz.
PUSH BUTTONS: Volume up, volume down (70 steps, 20 LED indicators), Input, Processor, Mute, Power. All functions on IR remote control.
POWER SUPPLIES: Electronically regulated low and high voltage supplies. Automatic 30-sec. warm-up/brown-out mute. Line regulation better than .01%.

NOISE:
Line: 15uV RMS IHF weighted at main output with volume low (96dB below 1V RMS output).
Phono: 0.9uV RMS IHF weighted equivalent input noise, shorted input (67dB below 2mVRMS 1KHz input).
REMOTE 12V OUT: Line: 12V DC at 100 mA max for system power control.
TUBE COMPLEMENT:(6)-12AX7EH dual triodes.
POWER REQUIREMENTS:100-135VAC 60Hz (200-270VAC 50/60Hz) 36 watts.
DIMENSIONS: 17.75" (45 cm) W x 5.2" (13.2 cm) H x 10.0"(25.4 cm) D. Rear connectors extend 0.6" (1.5 cm). Front handles are optional at additional cost.
WEIGHT: 12.6 lbs. (5.7 kg) Net; 20 lbs. (9.1 kg) Shipping.
Specifications subject to change without notice.
