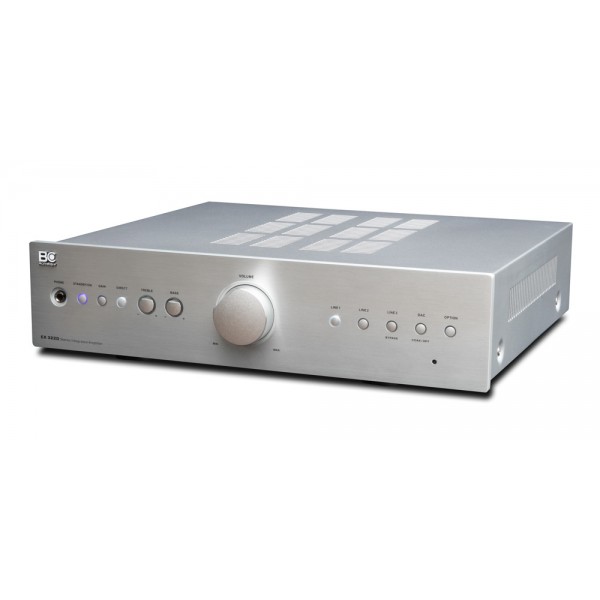

Amplificador BC Acoustique EX 322D

BC Acoustique EX 332D.  Este amplificador estéreo integrado es la versión mejorada del EX-322 que ya contaba con el famoso “Diapasón de Oro”.Incluye DAC que permite escuchar una de las dos fuentes conectadas por entrada óptica o coaxial. Potencia a 2x80W RMS a 8Ω y pasa 2x140W a 4Ω. Alimentación basada en un transformador toroidal de 500VA. Este amplificador estéreo integrado es la versión mejorada del EX-322 .Incluye DAC. Potencia a 2x80W RMS a 8Ω y pasa 2x140W a 4Ω.
Alimentación basada en un transformador toroidal de 500VA. 4 entradas de audio para diferentes tipos de tarjetas

4 entradas de audio para diferentes tipos de tarjetas (digital, red, phono, etc.). Conector para auriculares en la parte frontal 6.35 mm. Salida Pre-out para realizar bi-amplificación.

Ancho 430 x Alto 115 x Fondo 395 mm
Peso: 11,2Kg

This stereo integrated amplifier is based on the EX-322 which already received the famous “Diapason d’Or” award!

Using the same audio electronic design, it includes a DAC that allows you to listen to 1 of the 2 connected sources to the optical or coaxial inputs. Some other specifications like Gain adjustment, by-pass capability and stand-by mode has also been added. It delivers a power of 2x80W RMS into 8 Ohms or 2x140W into 4 Ohms, thanks to its massive 500VA transformer. It has 4 audio inputs, one for receiving different types of optional cards (digital, network, phono, etc...). There is also a headphone jack on the front (6.35 mm). Finally, it provides a "Pre-Out" to perform a bi-amplification.

HIGHLIGHTS
High quality manufacturing
High-end components ( 2SC5200/2SA1943 ToshibaTransistors)
Large power output amplifier stage
Several filtering capacitors (more efficient than a large one)
High power resistors (1/2 and 1W)
Class A preamplifier
Shielding
ALPS volume control potentiometer
Input switching relay
Possibility to add optional cards : Phono (MM/MC), DAC (24/192), Network…

SPECIFICATIONS

Amplifier section
Continuous output power:
2x80W power into 8 Ohms & 2x140W into 4 ohms
Distortion: 0.02% (20 Hz - 20 kHz)
Signal / noise ratio: 95 dB (1W)
Bandwidth: 10Hz-30 kHz (0.5 dB)

Pre amplifier section
Line input (LINE 1, LINE 2, LINE 3)
Sensitivity: 200 mV
Impedance: 50 kOhms/100 pF
Maximum input level: 7 V

Adjustment
Bass (± 10 dB at 100 Hz)
Treble (± 10 dB at 10 kHz)

Connectors
3x Line input (LINE 1, LINE 2, LINE 3)
1x Optical and Coaxial inputs (DAT)
1x Optional board card input (OPTION or LINE 4)
1x Trigger output (Jack 3,5mm mono)
1x Headphone output (jack 6,35 mm) in front
Speakers terminals screw banana plug  connector
Detachable IEC power socket
Remote control

General
Product dimensions(W×H×D): 430 x 115 x 395 mm / Weight: 11.2 kg
Box dimensions (W × H × D): 515 x 210 x 485 mm / Weight: 13.2 kg / Volume: 0.052 m³
