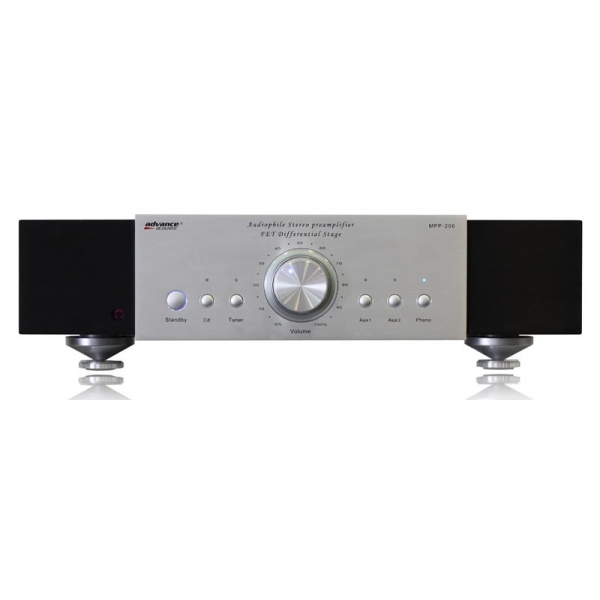

Previo Advance Acoustic MPP206

MPP206

producto descatalogado y agotado. No disponible

Envío gratuito

Frecuencia de respuesta de 10 Hz a 70 KHz, cuatro entradas de línea y una de phono, salida XLR y RCA, salida RCA para subwoofer, salida de filtro activo, mando a distancia, medidas 44 x 35 x 11 cms. peso 5 kilosPreamplificador estereo. 4 entradas RCA  + 1 phono, mando a distancia. -- Hasta Agotar



The design and development of MPP 206 required a lot of care, as a preamplifier should provide the best performance and potential for evolution.
The combination of FET and Bipolar transistors allows the preamplifier MPP 206 to produce an outstanding musical restitution. This hybrid type of assembly gives the output softness and a natural and detailed rendering. On the other hand, the use of low noise resistors and polypropylene capacitors guarantees high reliability.
The number of connection facilities of MPP 206 enables numerous connections to different sources.
Five inputs, whose commutation is performed by relays, can connect four high-level sources as well as a phono input for a turntable equipped with a moving magnet cartridge or a moving coil cartridge . A "Record" output makes it possible to connect a recorder.
MPP 206 has four output combinations. Depending on your amplifier, you can indeed use the asymmetrical output or the symmetrical output. Two other outputs indicated "SUB OUT" and "HIGH PASS OUT" combined with an active filter, enable the use of a subwoofer in bi-amplification.
A remote control device delivered with MPP 206 makes it easier to use.
The MPP 206 could be linked to the MAA 406 or the mono blocks MAA 705



Les mesures
OUT LEVEL Unbal / Balanced 0 - 2 V
FREQUENCY RESPONSE (-3 DB ) 10 Hz - 70 kHz
S/N RATIO ≥ 90 dB
CHANNEL SEPARATION ≥ 80 dB
DISTORTION < 0,03 %
INPUT IMPEDANCE 10 kΩ
INPUT IMPEDANCE PHONO (MM/MC) 47 kΩ / 100 Ω
IN LEVEL PHONO MM / MC 2,5 / 0,2 mV
IN LEVEL (CD,AUX) 500 mV
AC INPUT 115 - 230 V
P.CONSUMPTION STAND BY 1,3 W
P.CONSUMPTION S.BY ON 12 W
P.CONSUMPTION MAX < 30 W
TRANSFORMER NUMBER 1

Dimensions et poids
DIMENSIONS (H X W X D) Cm 12 X 44 X 35
NET WEIGHT/GROSS WEIGHT 5 / 6,6 kg 400 199


MPP206
