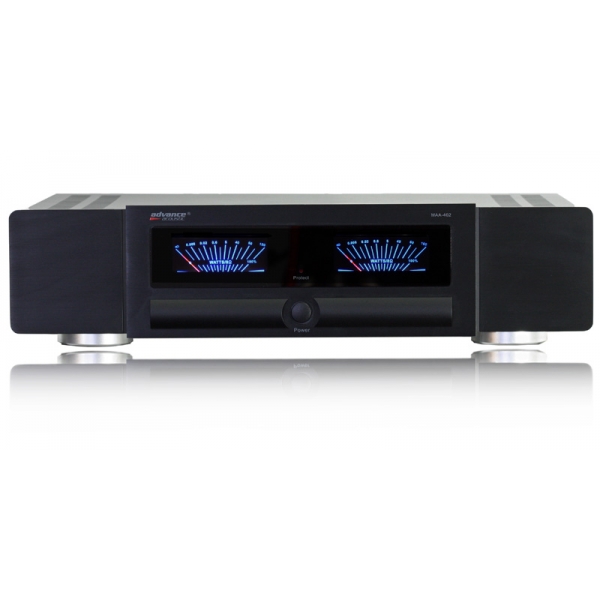

Etapa Advance Acoustic MAA402
descatalogado y agotado. No disponible
The MAA 402 Power Amplifier has been conceived and realized with a lot of care and forethought. The use of an oversized toroidal transformer along with the associated “High Current” Bipolar power transistors allow the MAA 402 to provide an exceptional musical experience. This type of infrastructure gives the output a natural softness which faithfully renders music in its finest details. The use of low noise resistors and sound friendly capacitors provide a counterpoint and guarantees the highest fidelity to sound.Etapa de potencia estereo 2x70w. 2x15w en clase A. Transformador toroidal. Indicadores VU meter.
The MAA 402 Amplifier delivers a significant 70 watts of power per channel in Class AB** mode. The first 15 watts of power are Class A* mode and the switch from Class A mode to Class AB mode is accomplished automatically by the device.
*In Class A mode, the device imposes a constant current across the power transistors whatever the required power (up to 15 Watts in the case of the MAA402). This significantly improves the dynamic response of the amplifier.
**In Class AB mode, the device allows a variable current across the power transistors which is dependent on the power output required.
POWER OUTPUT 8 Ohms 2 X 75 W
FREQUENCY RESPONSE (-3 DB ) 10 Hz - 70 kHz
DISTORTION < 0,1 %
S/N RATIO ≥ 115 dB
CHANEL SEPARATION ≥ 95 dB
INPUT IMPEDANCE 20 kΩ
INPUT LEVEL 1,2 V
AC INPUT 115 - 230 V
Dimensions et poids
DIMENSIONS (H X W X D) Cm 11 X 34 X 44
NET WEIGHT/GROSS WEIGHT 8,5 / 9,9 kg
