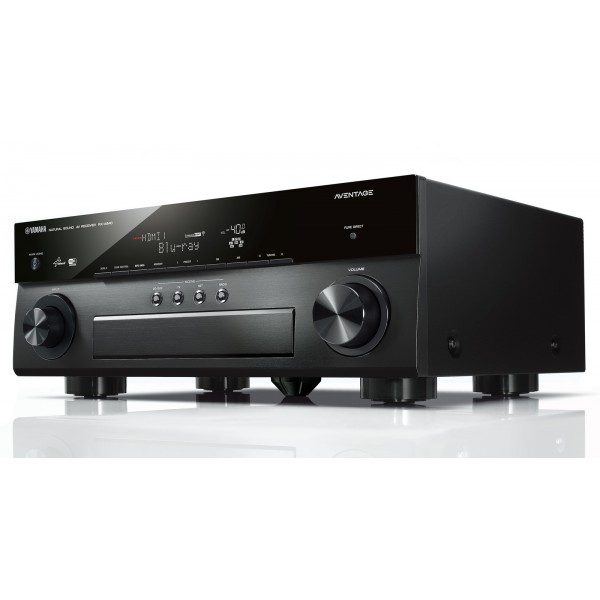

Receptor AV Yamaha RX-A840 Aventage

>Amplificador Yamaha RXA840. Superior audio quality 7.2-channel Wi-Fi Built-In AVENTAGE Network AV Receiver, with latest HDMI version with 4K 50/60p support, advanced features such as CINEMA DSP 3D and YPAO Volume, Anti Resonance Technology. Amplificador 7.2 con WIFI integrado, ultima versión HDMI con 4K y 50/60p. YPAO Volume. 160 Watios

producto agotado y descatalogado. Sustituido por Yamaha RXA850

8 entradas HDMI y 2 salidas HDMI. Funciones multi-zona.

AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
Aluminium Front Panel Offers Visual and Aural Benefits
Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
7-channel powerful surround sound
--- 160 W per channel (4 ohms, 1 kHz, 0.9% THD, 1 ch driven [European Model])
--- 100 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2 ch driven)
--- 160 W per channel (8 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
AirPlay, Napster®*, Spotify®*, JUKE* music streaming service and AV Controller app
*Music service availability varies by region.
FLAC, WAV 192kHz / 24-bit, Apple Lossless 96kHz / 24-bit playback and gapless playback compatibility
HTC Connect™ for music streaming from HTC Connect™ compatible smartphones
The latest HDMI version (4K 50/60p compatible, 8 inputs / 2 output incl. Front input)
YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point measurement
YPAO Volume to ensure natural sounds even at low volume
Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
HDMI Zone B for audio/video streaming to another room
Multi-zone audio support (Zone2)
Detachable AC power cord for easier installtion
ECO mode operation for about 20% less power consumption

Features

JUKE Delivers All Your Favorite Music
Music streaming service JUKE offers access to one of the most comprehensive music libraries in the world. 25 million songs from all genres from more than 80,000 labels are available to you. Enjoy your favorite songs in the best sound quality thanks to Dolby Pulse technology and play music wherever and whenever you want. JUKE is available as a premium subscription service at Euro 9.99 per month.

Support for HDMI 2.0 Specification
This model will support HDMI 2.0 connectivity. It supports 4K Ultra HD 50 Hz/60 Hz signal pass-through to output motion-smooth high definition videos.
It also supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 as well as YCbCr 4:2:0 video signal for more vibrant and lifelike images.
*Firmware update will be available to support RGB, YCbCr 4:4:4 and YCbCr 4:2:2

4K Ultra HD Pass-Through and Upscaling, The Latest HDMI Version
This AV receiver's HDMI input / output supports 4K Ultra HD video image pass-through. It also can perform 4K Ultra HD upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats. The latest version of HDMI supports 4K 50 / 60p input for expanding super high definition resolution 4K broadcasting.

AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonising traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and “fine-tuning” the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

Total Purity Concept for the Finest Sound Quality
The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity pre-amplification, anti-vibration technology and independent pure power supplies. All models have a fully discrete power amplifier that helps to minimise distortion. They also adopt independent pure power supplies, allowing dedicated power supplies for the analogue and digital circuitry to prevent digital noise from affecting analogue circuitry. The anti-vibration heatsinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.
Anti Resonance Technology Wedge Helps to Ensure that Vibrations Do Not Affect Sound Quality

The Anti Resonance Technology (A.R.T.) Wedge is a fifth foot in the centre of the unit. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers.
Aluminium Front Panel Offers Visual and Aural Benefits

All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminium front panel and silky touch volume/selector knobs. The aluminium front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

Extensive Audio Codec and Format Support
This AV receiver is compatible with many audio formats such as Dolby True HD and DTS-HD Master Audio. It is also compatible with high resolution audio codec such as FLAC / WAV / Apple Lossless. You will enjoy excellent sound quality from Blu-ray Discs and other types of high resolution sources.

Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
Wi-Fi Built-in capability allows wireless connection with your household wireless router, greatly simplifying system connections to enjoy network audio and music streaming services. If no Wi-Fi router is available, the unique Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via AV Controller App's Music Play feature, iOS's AirPlay etc, but also control your receiver using the AV Controller app.

Network Functions
This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio, Napster®*, Spotify®*, Pandora®*, and operate your system via Web Browser Control. The AV Controller app (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android phones / tablets.
*Music service availability varies by region.

AV Controller App for Easy, Convenient Operation
This AV receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google Play to control power on / off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.
*As of spring 2014

DSP Parameter Adjustment for Easy and Detailed Setting
This AV receiver is equipped with a variety of sound programmes that utilise Yamaha's original DSP technology. They allow you to easily create sound fields like actual movie theatres or concert halls in your room and enjoy natural stereoscopic sound fields. Now you can use the AV Controller app to adjust DSP parameters to your preference to match the type of music / movie or the mood you want to achieve. There are two modes, Basic and Advanced, that you can choose according to the type of adjustments you want to do.

AirPlay Allows Streaming Music to AV receiver
This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

Stream Millions of Songs with Spotify Connect
With the Spotify app on your smartphone, you've got instant access to millions of songs. And now you can stream those songs to your Yamaha system by using Spotify Connect. Just hit play to start streaming music. What's more, when you've been listening on your smartphone outside and come inside, the song immediately streams to your AVR—like magic, you enjoy uninterrupted music. You can also personalise playlists and receive phone calls while listening to music.

*The Spotify app and premium account are required. Visit spotify.com for more details.
Try Spotify Premium for free on your Yamaha Home Entertainment System for 30 days.
http://spotify.com/yamaha
*Spotify service availability depends on regions.

HTC Connect™ for Wireless Streaming
HTC Connect™ lets you stream music to your AV receiver wirelessly. You don't need a separate app because HTC Connect™ is built right into your HTC phone. Simply swiping the HTC phone screen starts music output to the AV receiver, from the HTC device's local music sources or third party music sources.

USB Digital Connection for iPod, iPhone and iPad on the Front Panel
A USB port on the front panel allows convenient connection of an iPod / iPhone / iPad, which also charges when connected. Because the digital signal from the iPod / iPhone / iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod / iPhone / iPad music playback functions.

Gapless playback compatibility allows play without interruption*
Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard.
* Compatible with WAV, FLAC and ALAC file formats, and input from USB / PC / NAS.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

MHL (Mobile High-Definition Link) Support for High Quality Video and Audio
MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multi-channel audio from the phones is supported. The receiver also charges the connected phone. Play, Stop and other basic operations can be controlled from the remote control.

Advanced Multi-language GUI On-screen Display
Yamaha’ s latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese, and can be displayed over both normal and 3D pictures.

SCENE for One-Touch Start
Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
YPAO-R.S.C. (Reflected Sound Control) Sound Optimisation

YPAO-R.S.C. analyses room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalisation, which varies the CINEMA DSP parameters according to the reflected sounds.

YPAO Volume to Ensure Natural Sounds Even at Low Volume
Human ears have less sensitivity to high and low frequencies, especially at lower volumes. YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes. Using the YPAO measurement results, EQ correction is optimised to your system settings and listening environment.

Virtual CINEMA FRONT Provides Virtual 7-channel Surround Sound with High Quality and Resolution
Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 7-channel surround sound filled with realism, from only two front speakers. The Virtual CINEMA FRONT feature lets you place two surround speakers and a centre speaker at the front to enjoy virtual 7-channel surround sound with even higher quality and resolution, as well as superior rear virtual sound localisation. Adding two additional front presence speakers provides a three-dimensional sound field that gives you a feeling of its height and depth and of the vertical movement of the sound. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.

HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.

Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
Yamaha’ s exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localisation and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.

Subwoofer Trim for Improved Sound Imaging
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilising the front stage while providing a well-balanced enhanced bass sound.

Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals
Dialogue Lift raises the sound of dialogue from the centre speaker to a position in the centre of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

Intelligent Amp Assign
Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 7.1-channel system, when Zone 2 is off, all 7.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two Surround Back channels will be directed to the two speakers in Zone 2, and the Main Zone will receive 5.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two Surround Back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there’s no need to switch the speaker cables on the rear of the receiver—one more way Yamaha makes your life a little easier.

ECO mode Lowers Power Consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
* Compared to power consumption when ECO mode is off (Yamaha measurement).

Specs
AV Receiver
Amplifier Section Channel 7.2
Rated Output Power (1kHz, 1ch driven) 160W (4ohms, 0.9% THD [European Model])
Rated Output Power (20Hz-20kHz, 2ch driven) 100 W (8ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 160W (8ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 130 / 170 / 195 / 240 W
Surround Sound Processing CINEMA DSP Yes (3D)
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Audio Features Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes
YPAO multi-point measurement Yes (R.S.C)
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features 4K Ultra HD Pass-through and upscaling Yes (latest HDMI version for 4K 50/60p)
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity HDMI Input/Output 8 (front 1) / 2 (Simultaneous)
HDMI CEC Yes (SCENE, Device Control)
MHL Support Yes
USB Input iPod / iPhone / iPad, USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (with Wireless Direct)
AirPlay Yes
Front AV Input HDMI (MHL support) / USB / Analogue Audio / Composite
DC Out Yes
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 6 / 1
Phono Input Yes
Component Video Input/Output 2 / 1
Composite Video Input/Output 5 (front 1) / 2
Preout 7.2ch
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Graphical User Interface
SCENE SCENE (4 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes (Preset)
Zone Control Zone 2 Audio Output Line output
Powered Zone Zone 2
Zone B Output Yes (HDMI)
RS-232C Interface Yes
+12V Trigger Output 1
Remote (IR) Input/Output 1 / 1
General Standby Power Consumption (IR only) ≤0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 171 x 369 mm (with antenna: 435 x 234 x 382 mm);
Weight 10.6 kg;

Dentro de la gama Aventage encontramos el modelo superior Yamaha RXA1040
