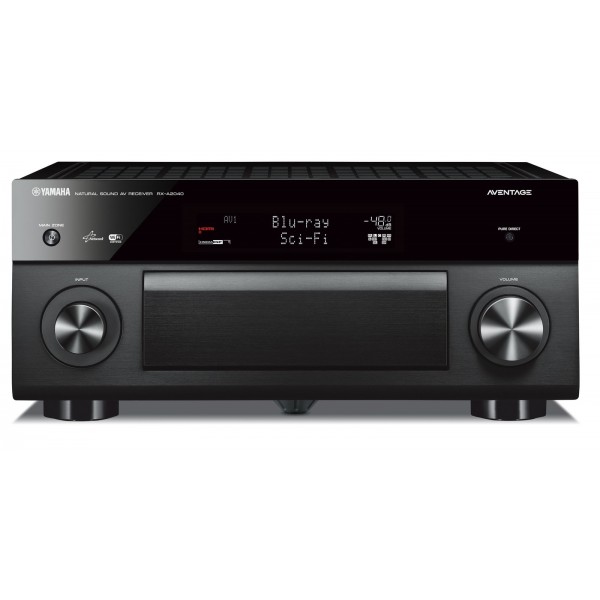

Receptor AV Yamaha RX-A2040 Aventage

Amplificador Yamaha RXA2040 de la serie Aventage

producto agotado y descatalogado. Sustituido por Yamaha RXA2050

AVENTAGE 9.2-channel Wi-Fi Built-In AV Receiver features 4K 50/60p support, Advanced HDMI Zone Switching, audiophile-grade design including symmetrical power amp layout, high-resolution audio support and two high quality ESS DACs.
Dolby Atmos®　Support*
*Dolby Atmos playback will be available with a firmware update later this fall.
AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
Aluminium Front Panel Offers Visual and Aural Benefits
Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
H-shape cross member frame and rigid bottom frame
Professional quality digital audio by ESS DAC
9-channel powerful surround sound
--- 220 W per channel (4 ohms, 1 kHz, 0.9% THD, 1 ch driven [European Model])
--- 140 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2 ch driven)
--- 220 W per channel (8 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
AirPlay, Napster®*, Spotify®*, Pandora®*, JUKE* music streaming service and AV Controller app
*Music service availability varies by region.
FLAC, WAV 192kHz / 24-bit, Apple Lossless 96kHz / 24-bit playback and gapless playback compatibility
High-resolution Music Enhancer further heightens musicality from the original content
HTC Connect™ for music streaming from HTC Connect™ compatible smartphones
The latest HDMI version (4K 50/60p compatible, 8 inputs / 2 output incl. Front input)
YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point measurement
YPAO Volume to ensure natural sounds even at low volume
Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
Yamaha video processing optimises video content
Advanced HDMI Zone Switching allows unprecedented AV switching to multiple zones
Versatile Zone control such as Zone 2 / 3 / 4 on / off, Zone GUI and Party mode
ECO mode operation for about 20% less power consumption

Features

Features

Support for the Latest Surround Format, Dolby Atmos®
Enter a new world of sound with Dolby Atmos®. It transports you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room with amazing richness and depth. Music, people, and objects come alive in breathtaking detail and flow in precise choreography all around you, making you feel like you are truly there. The combination of Dolby Atmos and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.
*Dolby Atmos playback will be available with a firmware update later this fall.

JUKE Delivers All Your Favorite Music
Music streaming service JUKE offers access to one of the most comprehensive music libraries in the world. 25 million songs from all genres from more than 80,000 labels are available to you. Enjoy your favorite songs in the best sound quality thanks to Dolby Pulse technology and play music wherever and whenever you want. JUKE is available as a premium subscription service at Euro 9.99 per month.

Support for HDMI 2.0 Specification
This model will support HDMI 2.0 connectivity. It supports 4K Ultra HD 50 Hz/60 Hz signal pass-through to output motion-smooth high definition videos.
It also supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 as well as YCbCr 4:2:0 video signal for more vibrant and lifelike images.
*Firmware update will be available to support RGB, YCbCr 4:4:4 and YCbCr 4:2:2

4K Ultra HD Pass-Through and Upscaling, The Latest HDMI Version
This AV receiver's HDMI input / output supports 4K Ultra HD video image pass-through. It also can perform 4K Ultra HD upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats. The latest version of HDMI supports 4K 50 / 60p input for expanding super high definition resolution 4K broadcasting.

AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonising traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and “fine-tuning” the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

Total Purity Concept for the Finest Sound Quality
The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity pre-amplification, anti-vibration technology and independent pure power supplies. All models have a fully discrete power amplifier that helps to minimise distortion. They also adopt independent pure power supplies, allowing dedicated power supplies for the analogue and digital circuitry to prevent digital noise from affecting analogue circuitry. The anti-vibration heatsinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

Anti Resonance Technology Wedge Helps to Ensure that Vibrations Do Not Affect Sound Quality
The Anti Resonance Technology (A.R.T.) Wedge is a fifth foot in the centre of the unit. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers.

H-shaped Cross Member Frame
The interior of the receiver is reinforced with cross members in an H shape to provide an extremely rigid and stable frame. This reduces chassis vibration to virtually zero even during high volume output (seemingly minor vibrations can affect the sound), maintaining the highest audio quality.

Symmetrical Power Amplifier Layout
This is just one of the many design details that all combine to create a superior receiver. The interior of the unit has been precisely planned, circuit-routed and built so that the left and right channels are physically and electrically isolated. This naturally maximises channel separation, but also greatly improves signal to noise ratio and also helps to achieve a wide, open sound stage.

Aluminium Front Panel Offers Visual and Aural Benefits
All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminium front panel and silky touch volume/selector knobs. The aluminium front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

Sound Tuning Achieved with High Quality Parts for Optimum Performance
Every single part in an AV receiver affects the sound quality. For AVENTAGE models, extra time is taken to find (or develop) the exact parts needed to achieve the highest performance possible. Sound technicians go through a testing process to, in effect, “tune” the receiver’s sound.

Professional Quality Digital Audio by ESS DAC
Incorporating the ES9006 Premier Audio DAC from ESS Technology to achieve an exceptionally good signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.

Extensive Audio Codec and Format Support
This AV receiver is compatible with many audio formats such as Dolby True HD and DTS-HD Master Audio. It is also compatible with high resolution audio codec such as FLAC / WAV / Apple Lossless. You will enjoy excellent sound quality from Blu-ray Discs and other types of high resolution sources.

High-resolution Music Enhancer further Heightens Musicality from the Original Content
Hi-bit high-sampling extension up to 96 kHz / 24-bit can be applied to lossless 44.1 / 48 kHz content such as from a CD (2-channel PCM) or a FLAC file for further heightening of the musicality in the original content.

Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
Wi-Fi Built-in capability allows wireless connection with your household wireless router, greatly simplifying system connections to enjoy network audio and music streaming services. If no Wi-Fi router is available, the unique Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via AV Controller App's Music Play feature, iOS's AirPlay etc, but also control your receiver using the AV Controller app.

Network Functions
This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio, Napster®*, Spotify®*, Pandora®*, and operate your system via Web Browser Control. The AV Controller app (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android phones / tablets.
*Music service availability varies by region.

AV Controller App for Easy, Convenient Operation
This AV receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google Play to control power on / off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.
*As of spring 2014

DSP Parameter Adjustment for Easy and Detailed Setting
This AV receiver is equipped with a variety of sound programmes that utilise Yamaha's original DSP technology. They allow you to easily create sound fields like actual movie theatres or concert halls in your room and enjoy natural stereoscopic sound fields. Now you can use the AV Controller app to adjust DSP parameters to your preference to match the type of music / movie or the mood you want to achieve. There are two modes, Basic and Advanced, that you can choose according to the type of adjustments you want to do.

AirPlay Allows Streaming Music to AV receiver
This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

Stream Millions of Songs with Spotify Connect
With the Spotify app on your smartphone, you've got instant access to millions of songs. And now you can stream those songs to your Yamaha system by using Spotify Connect. Just hit play to start streaming music. What's more, when you've been listening on your smartphone outside and come inside, the song immediately streams to your AVR—like magic, you enjoy uninterrupted music. You can also personalise playlists and receive phone calls while listening to music.
*The Spotify app and premium account are required. Visit spotify.com for more details.
Try Spotify Premium for free on your Yamaha Home Entertainment System for 30 days.
http://spotify.com/yamaha
*Spotify service availability depends on regions.

HTC Connect™ for Wireless Streaming
HTC Connect™ lets you stream music to your AV receiver wirelessly. You don't need a separate app because HTC Connect™ is built right into your HTC phone. Simply swiping the HTC phone screen starts music output to the AV receiver, from the HTC device's local music sources or third party music sources.

USB Digital Connection for iPod, iPhone and iPad on the Front Panel
A USB port on the front panel allows convenient connection of an iPod / iPhone / iPad, which also charges when connected. Because the digital signal from the iPod / iPhone / iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod / iPhone / iPad music playback functions.

Gapless playback compatibility allows play without interruption*
Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard.
* Compatible with WAV, FLAC and ALAC file formats, and input from USB / PC / NAS.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

MHL (Mobile High-Definition Link) Support for High Quality Video and Audio
MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multi-channel audio from the phones is supported. The receiver also charges the connected phone. Play, Stop and other basic operations can be controlled from the remote control.

Yamaha Video Processing Optimises Video Content
Yamaha’s high-end video projector engineering expertise has produced various advanced processing techniques that are applied to this AV receiver. These include edge adaptive deinterlacing to smooth out jaggy noise, motion adaptive deinterlacing to detect moving or still images for precise pixel-by-pixel processing and multi-cadence detection including 3-2 pull-down. Proper processing makes viewing enjoyment complete no matter what video source or content.

Advanced Multi-language GUI On-screen Display
Yamaha’ s latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese, and can be displayed over both normal and 3D pictures.

Extra-convenient SCENE PLUS
The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programmes. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, GUI and even from the AV Controller app.

YPAO-R.S.C. (Reflected Sound Control) Sound Optimisation with Multi-Point Measurement
YPAO-R.S.C. analyses room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound at any of eight listening positions. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalisation, which varies the CINEMA DSP parameters according to the reflected sounds.

YPAO Volume to Ensure Natural Sounds Even at Low Volume
Human ears have less sensitivity to high and low frequencies, especially at lower volumes. YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes. Using the YPAO measurement results, EQ correction is optimised to your system settings and listening environment.

Virtual CINEMA FRONT Provides Virtual 7-channel Surround Sound with High Quality and Resolution
Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 7-channel surround sound filled with realism, from only two front speakers. The Virtual CINEMA FRONT feature lets you place two surround speakers and a centre speaker at the front to enjoy virtual 7-channel surround sound with even higher quality and resolution, as well as superior rear virtual sound localisation. Adding two additional front presence speakers provides a three-dimensional sound field that gives you a feeling of its height and depth and of the vertical movement of the sound. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.

HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.

Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
Yamaha’ s exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localisation and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.

Subwoofer Trim for Improved Sound Imaging
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilising the front stage while providing a well-balanced enhanced bass sound.

Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals
Dialogue Lift raises the sound of dialogue from the centre speaker to a position in the centre of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.
Advanced HDMI Zone Switching Allows Unprecedented AV Switching to Multiple Zones

While standard HDMI zone switching can only send HD video programmes to the main and second zones, Yamaha’s Advanced HDMI Zone Switching adds the capability to choose from all audio and video sources for playback in either zone. An on-screen graphical user interface makes it easy to browse and select content to enjoy from the second zone no matter what is being played in the main zone.

Intelligent Amp Assign
Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 9.1-channel system, when Zone 2 is off, all 9.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two Surround Back channels will be directed to the two speakers in Zone 2, and the Main Zone will receive 7.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Rear Presence speakers will be powered and not the two Surround Back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there’s no need to switch the speaker cables on the rear of the receiver—one more way Yamaha makes your life a little easier.

ECO mode Lowers Power Consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
* Compared to power consumption when ECO mode is off (Yamaha measurement).

Specs
AV Receiver
Amplifier Section Channel 9.2
Rated Output Power (1kHz, 1ch driven) 220W (4ohms, 0.9% THD [European Model])
Rated Output Power (20Hz-20kHz, 2ch driven) 140W (8ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 220W (8ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 165 / 210 / 285 / 405 W
Surround Sound Processing CINEMA DSP Yes (3D)
DSP Programs 23
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Atmos Yes (Firmware update in 2014 late fall)
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Audio Features Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO multi-point measurement Yes (R.S.C)
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (ESS)
Video Features 4K Ultra HD Pass-through and upscaling Yes (latest HDMI version for 4K 50/60p)
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
Video adjustment Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity HDMI Input/Output 8 (front 1) / 2 (assignable for zone 2 / 4)
HDMI CEC Yes (SCENE, Device Control)
MHL Support Yes
USB Input iPod / iPhone / iPad, USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (with Wireless Direct)
AirPlay Yes
Front AV Input HDMI (MHL support) / USB / Analogue Audio / Composite
DC Out Yes
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output 10 (front 1) / 1
Phono Input Yes
Component Video Input/Output 3 / 1
Composite Video Input/Output 5 (front 1) / 2
Multi-Channel Input 8ch
Preout 7.2ch
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Graphical User Interface
SCENE SCENE PLUS (12 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes (Preset)
Zone Control Zone 2 Audio Output Preout / HDMI
Zone 3 Audio Output Preout
Zone 4 Audio Output HDMI
Powered Zone Zone 2 / 3
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (Advanced HDMI Zone Switching)
Zone B Output HDMI
Zone GUI YES
RS-232C Interface Yes
+12V Trigger Output 2
Remote (IR) Input/Output 2 / 2
Party Mode Yes
General Standby Power Consumption (IR only) ≤0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 192 x 467 mm (with antenna: 435 x 252 x 474 mm);
Weight 17.0 kg;

Como modelo inferior encontramos el modelo Yamaha RXA1040 y como TOP de la Aventage, el RXA3040
