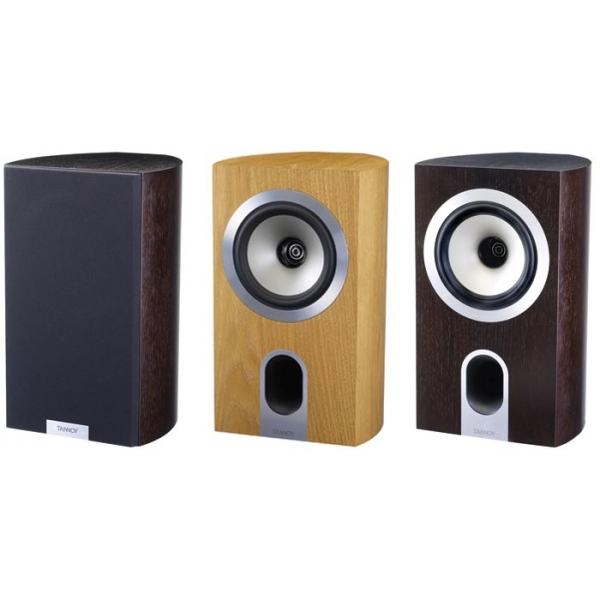

Altavoces Tannoy Revolution Signature DC6

1783 - 01

producto descatalogado y agotado. Sustituido por Revolution DC6


  • Altavoz de estanteria. 2 vias, puerto reflex frontal, 8 ohmios. Tecnologia Dual Concentric.Características técnicas:

    producto descatalogado y agotado. Sustituido por Revolution DC6

    Passion, performance and precision 80 years in the making - and more affordable than you might think. Isn’t it time you escaped with a Revolution Signature? Bristling with cutting edge acoustic technology, the Revolution Signature DC6 is a high performance stand or bookshelf mount loudspeaker. The high power handling 150mm (6.00") point source, constant directivity Dual Concentric™ drive unit combines with WideBand™ extended frequency response, premium crossover components, driver earthing and a rigidly constructed, sensuously styled curved trapezoidal cabinet to ensure natural midrange, high intelligibility, airiness and expansive sound staging. Revolution Signature DC6



    Recommended amplifier power 20 – 150 Watts RMS

    Continuous power handling 75 Watts RMS

    Peak power handling 300 Watts

    Sensitivity 88dB (2.83V @ 1m)

    Nominal impedance 8 Ohms

    Frequency response 46Hz – 35kHz (-6dB)

    Dispersion 90 degrees conical DRIVE UNIT Dual Concentric™ high frequency 25mm (1.00”) titanium dome with Tulip WaveGuide™ Dual Concentric™ low frequency 150mm (6.00”) treated paper pulp cone with rubber surround and 44mm (1.75”) edge wound voice coil

    CROSSOVER Crossover frequency 1.8kHz Crossover type

    Passive low loss 2nd order LF, 1st order HF

    CONSTRUCTION Enclosure type Front ported Volume 10.8L 0.381 cu. ft.


    Dimensions 365 x 226 x 225mm (H x W x D ex. grille)

    Weight 7.2kg

    1783 - 01
