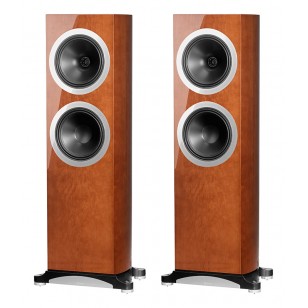

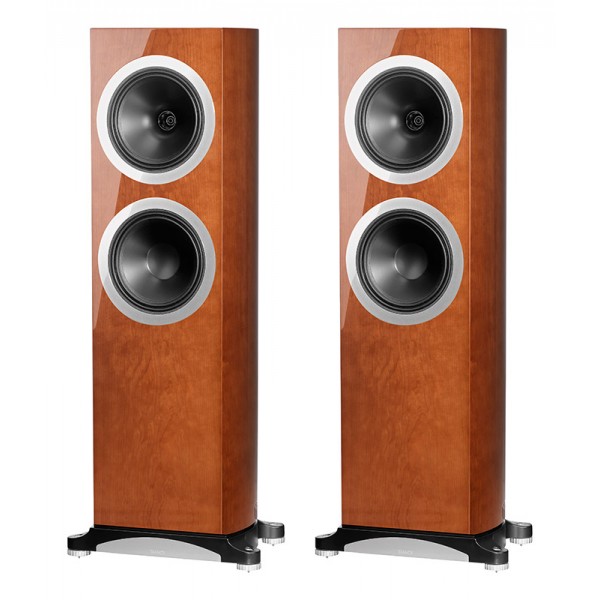

Altavoces Tannoy Definition DC10Ti

For those seeking truly breath-taking scale and dynamics, the Definition DC10Ti delivers an outstanding performance with music and movies alike. A powerful combination of Tannoy’s latest 250mm (10.00”) Dual Concentric™ driver with WideBand™ tweeter, precision matched 250mm (10.00”) bass driver and an ultra-rigid plywood cabinet results in a design of extraordinary musical articulation and class leading dynamics. Capable of handling 500watt peak power and with a bass response down to below 30Hz, the Definition DC10Ti crafts an immense soundstage with life-like scale and three dimension ambience. The Definition DC10Ti rates as one of Tannoy’s most accurate, revealing and dynamic contemporary loudspeakers to date.

For the listener that accepts no compromises in the pursuit of sound quality, the 10” Dual and 10” bass-driver work in perfect harmony with the substantial 76 litre rear ported enclosure. The Deep Cryogenically Treated straight path crossover, silver plated OFC and pure silver conductors, extensive use of Tannoy DMT™ technology and Tannoy’s unique fifth speaker terminal for driver grounding ensures the DC10Ti’s class leading fidelity and articulation. The Definition DC10Ti is a loudspeaker for those who enjoy music and m0vies with realistic scale and Tannoy’s world renowned accuracy and articulation.

The substantial Definition DC10Ti cabinet is imposing yet effortlessly elegant, and beneath the high gloss lacquered exterior is a construction of the finest birch plywood. This is chosen for its natural acoustic properties which afford a richer and more engaging sound that similar thickness fibreboard construction. The complex curve reduces resonances and internal reflections, improving mid-band clarity and greatly enhancing micro detailing.A special bracing mechanism, incorporating Tannoy’s Differential Material Technology™ (DMT), rigidly couples the driver/enclosure interface, further improving Definition DC10Ti’s accuracy in instrumental timbre.

The latest evolution of Definition DC10Ti features a substantial new plinth assembly that extends the smooth lines of the cabinet and has been designed for perfect ground coupling of the DC10T’I cabinet. With top-adjust floor spikes making speaker set-up and levelling easy, the plinth features an integrated energy-grounding stabiliser weight that gives the latest DC10Ti models even tighter, faster bass response.The DC10Ti is a loudspeaker of visual and acoustic substance; hand finished to an exceptionally high standard in a choice of high gloss lacquered real wood veneers or high gloss black with subtle aluminium trim and magnetic grille mount. A discreet satin black plinth is supplied for those requiring additional stability.

PERFORMANCE
Recommended amplifier power
(Watts RMS) 30 – 250
Continuous power handling
(Watts RMS) 125
Peak power handling (Watts) 500
Sensitivity (2.83 Volts @ 1m) 92dB
Nominal Impedance (Ohms) 8
Frequency response (-6dB) 30Hz – 35kHz
Dispersion (degrees conical) 90
DRIVE UNITS
Dual Concentric™ high frequency 25mm (1”) Titanium dome with Tulip WaveGuide™
Dual Concentric™ low frequency 250 mm (10”) treated paper pulp cone with twin roll impregnated fabric surround.
44mm (1.75”) edge wound voice coil
Bass Driver 250 mm (10”) treated paper pulp cone with twin roll impregnated fabric surround.
44mm (1.75”) edge wound voice coil
CROSSOVER
Crossover frequency 200Hz,1.4kHz
Crossover type Passive low loss
2nd order LF, 1st order HF
Deep Cryogenically Treated
CONSTRUCTION
Enclosure Type Rear ported
Volume 76L (2.68 cu. ft.)

MEDIDAS Ancho 339 x Alto 1125 x Fondo 320mm

Peso 40.5 kg
Finish High gloss black
High gloss cherry
High gloss dark walnut
