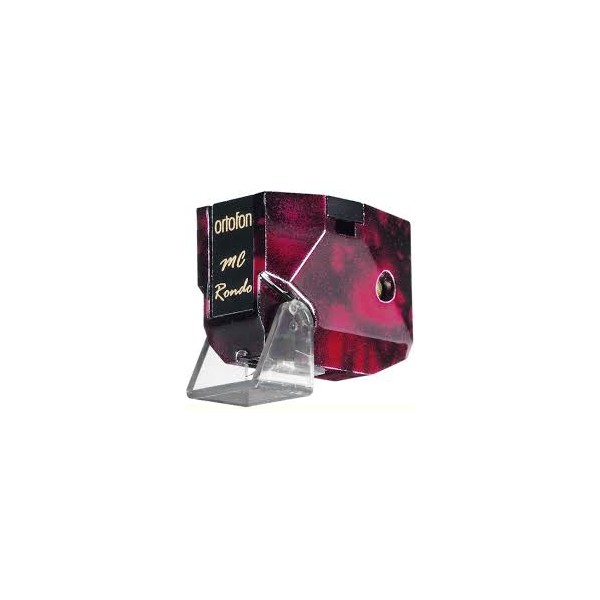

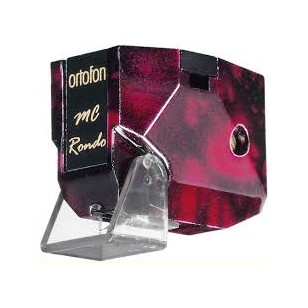

Capsula Ortofon MC Rondo Red
Capsula Ortofon Rondo Red
Aguja Elíptica, Nude - Salida: 500 μV - Sep. canales: 22 dB (@1kHz) - Respuesta: 20-30.000 Hz (@ -3 dB) - Fuerza de apoyo: 2,3 g - Impedancia: 10-200 Ohm - Peso: 10,5 g
Producto Agotado y Descatalogado. No disponible
.
.
The Rondo Red is a very homogeneous all round cartridge meaning that sound image will tend to less dynamic strength and smoother reproduction-working perfect with all sorts of not very complex music.
The Rondo Red has a very fine polished elliptical diamond is mounted on a cylindrical aluminum cantilever.
The cartridge is clearly out of the same family of sound as Bronze and Blue – all of them taking benefit from the wooden housings.
Recommended load around 100 Ohm or even higher if added “air“ might be preferred.
Output voltage at 1000 Hz, 5cm/sec. | 0,5 mV |
Channel balance at 1 kHz | 2 dB |
Channel separation at 1 kHz | 22 dB |
Channel separation at 15 kHz | 15 dB |
Frequency range at - 3dB | 20-30.000 Hz |
Frequency response | 20-20.000 Hz ±2 dB |
Tracking ability at 315Hz at recommended tracking force *) | 80 µm |
Compliance, dynamic, lateral | 15 µm/mN |
Stylus type | Nude elliptical aluminium cantilever |
Stylus tip radius | r/R 8/18 µm |
Tracking force range | 2-2,5 g (20-25 mN) |
Tracking force, recommended | 2,3 g (23 mN) |
Tracking angle | 20° |
Internal impedance, DC resistance | 6 Ohm |
Recommended load impedance | 10-200 Ohm |
Cartridge body material | Grinded wood/Resin comp. |
Cartridge colour | Red |
Cartridge weight | 10,5 g |
