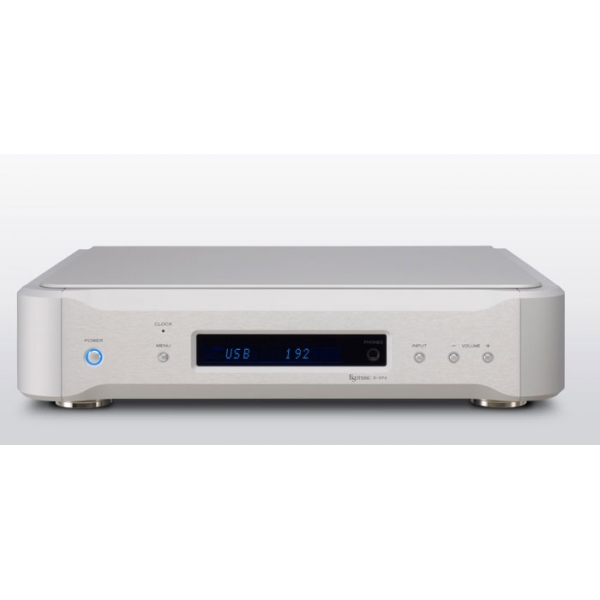

DAC Esoteric D-07X
  • DAC Esoteric D-07X
  • DAC Esoteric D-07X

DAC Esoteric D-07X

DAC Esoteric D-07X
Novedad

Producto Agotado y Descatalogado. No disponible

.

.

Pregunta al especialista
Envío gratuito
Convertidor Esoteric D-07X,  24/192 entada XLR, RCA, óptica, USB y BNC. Salidas XLR, RCA, word clock BNC


Analog output Jacks XLR (2ch) x1
RCA (2ch) x1
Headphones x1
Output impedance XLR: 100Ω
RCA: 25Ω
Maximum output level
(1 kHz, with full-scale input)		 XLR: 2 .45 Vrms (when set to 0 dB with 10 kΩ load)
RCA: 2 .45 Vrms (with 10 kΩ load)
PHONES: 20 mW + 20 mW (with 32 Ω load)
Frequency response 5 Hz to 55 kHz
Signal-to-Noise Ratio (S/N) 115dB
Total harmonic distortion 0 .0015% (JEITA)
Digital input Balanced digital input XLR (5 .0 Vp-p/110 Ω) x1
Coaxial connector RCA (0 .5 Vp-p/75 Ω)x2
Optical digital connector OPTICAL (-24 .0 to -14 .5 dBm peak) x1
USB port B connector x1
Input sampling frequencies 32, 44 .1, 48, 88 .2, 96, 176 .4, 192 (kHz)
Note: The XLR input (only) supports DSD input in ES-LINK (single) format
Clock sync output Jack BNCx1
Output frequency 44 .1, 48, 88 .2, 96, 100, 176 .4, 192 (kHz/rectangular wave)
22 .5792, 24 .576 (MHz)
Same frequency as input (when set to THRU)
Output level Equivalent to TTL levels (with 75 load)
Clock sync input Jack BNCx1
Input frequency 44.1, 48, 88.2, 96, 100, 176.4, 192 (kHz)
10, 22.5792, 24.576 (MHz)
Input impedance 75Ω
Input level Square wave: equivalent to TTL level
Sine wave: 0 .5-1 .0 Vrms (with 75 Ω load)
General Power supply AC 230V, 50Hz
AC 120V, 60Hz
AC 220V, 60Hz
Power consumption 7W
External dimensions
(WxHxD, including protrusions)		 445 x 106 .5 x 356 mm
(17 1/2" x4 2/8" x 14 1/8")
Weight 10 .4 kg (22 .93 lb)
