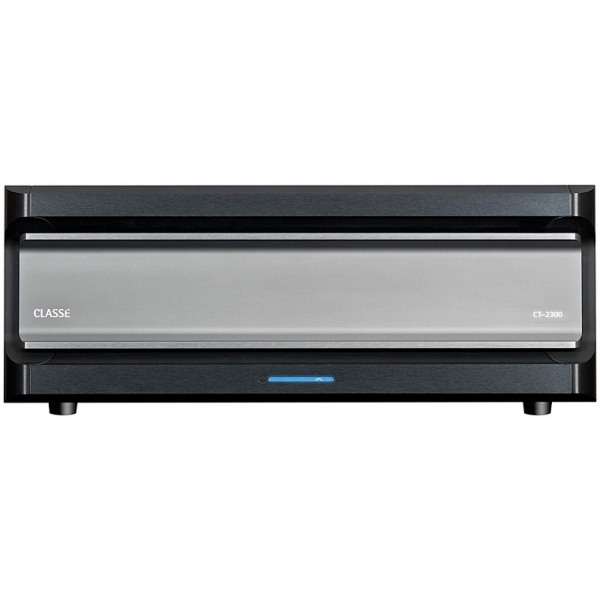

Etapa Classe CT-2300

Etapa de potencia estéreo 2x300 W. Entradas RCA/XLR

.

MODELO PVP IVA INCLUIDO CT-2300 6.500€

.

Etapa de Potencia de 2 canales (2x300W RMS). Entradas Balanceadas y No Balanceadas. Tomas de conexión RJ45 para CAN BUS (conexión con otros equipos de CLASSE). Toma de control RS232 (actualización de software y control). Toma USB (actualización de software y obtención de datos). Tomas de disparo de 12V. Tomas de infrarrojos. Frontal de aluminio desmontable. Túnel de Ventilación Inteligente "Intelligent Cooling Tunnel". Dimensiones: -Ancho incluyendo frontal: 483mm Ancho: 432mm -Profundidad: 473mm -Altura: 177mm Peso: 40,5Kg Model CT-2300 Frequency response 1Hz - 80kHz, -3dB Output power 300W rms into 8Ω (24.8 dBW) 600W rms into 4Ω (24.8 dBW) Both channels driven Harmonic Distortion <0.002% at 1 kHz balanced <0.004% at 1 kHz single ended Peak Output Voltage 150V peak to peak, 53V rms no load 136V peak to peak, 48V rms into 8Ω Input Impedance 50kΩ balanced / single ended Voltage gain 29dB balanced / single ended Input level at clipping 1.88V rms balanced / single ended Intermodulation Distortion >90dB below fundamental into 8Ω balanced / single ended >90dB below fundamental into 4Ω balanced / single ended Signal to Noise Ratio -116dB at peak output into 8Ω Measurement Bandwidth: 22kHz Output impedance 0.015Ω @ 1kHz Rated power consumption 420W @ 1/8th power into 8Ω Width (including faceplate) 19" (483mm) Width (excluding faceplate) 17" (432mm) Depth (excluding connectors) 18.625" (473mm) Height 6.97" (177mm) Gross weight 109lbs (49.5kg) Net weight 89lbs (40.5kg) Mains voltage Specified on rear panel
